5.7 Checking the Settings
Press
left to return to SETUP, and then
open IN/OUTPUTS, and from there ANALOG
OUTPUTS.

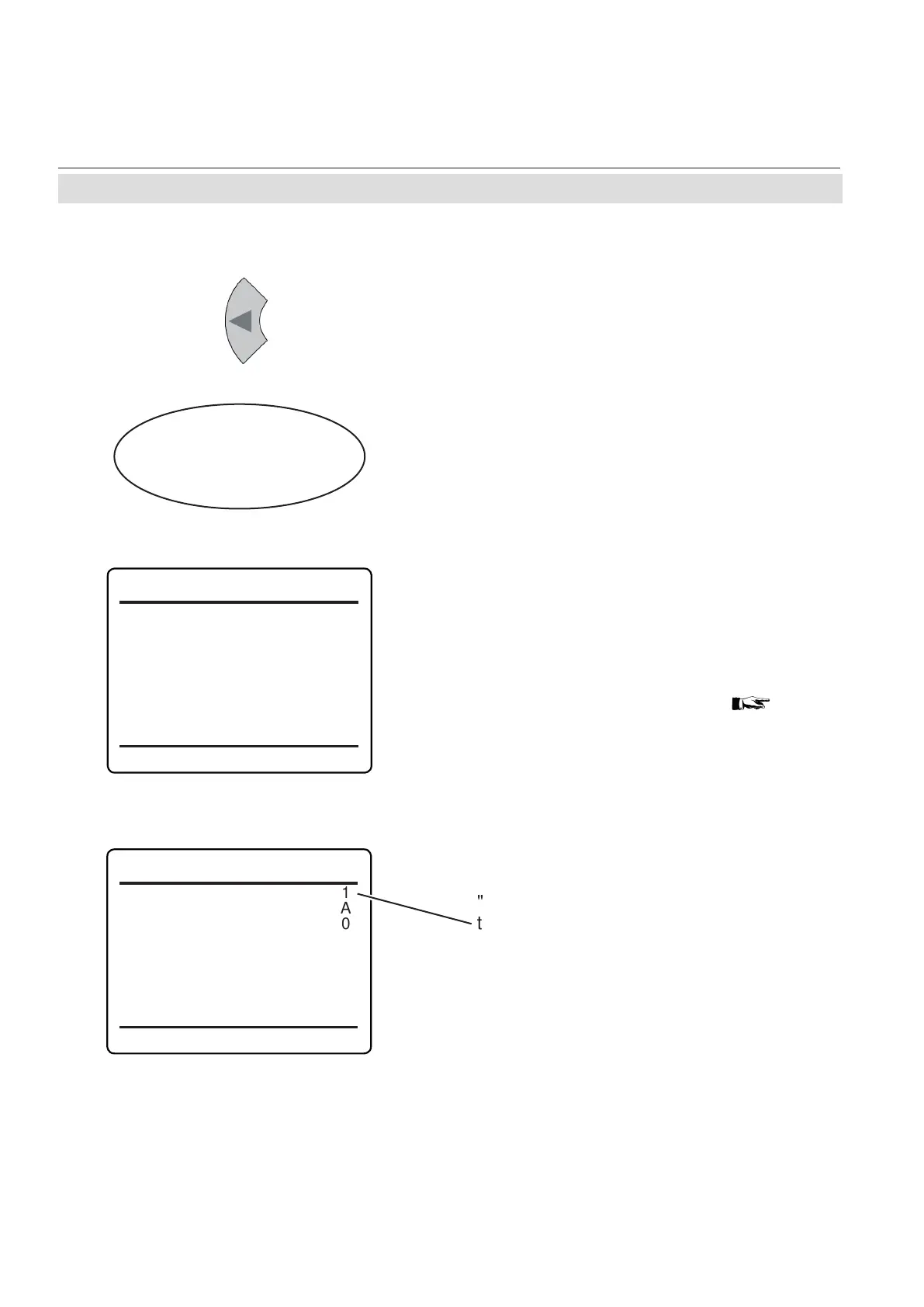

5.7.4 Setting the Analog Outputs
Select the analog output you like to check.
Note!
The following section only in brief describes
the entries currently of interest!
Chapter
6 for a more detailed description.
Setup..
In/Outputs..
Analog Outputs..
Analog Outputs
Output1..
Output2..
Output3..
Output4..
Output5..
"Signal” species the value associated with
the selected output. The following options
(partly dependent on the number of measu-
ring channels and sensors installed) are
available:
Signal: Comp1
OutRange: 0-20 mA
Low Scale: 0.00
Max Scale: 100.00
AutoScale: Yes
FailMode: Track
0/4 mA: 0.00
20 mA: 100.00
Hold: No
