1.3 Interfaces
The Ethernet Modbus interface offers the
same form of communication with a data
acquisition system as does a serial interface.
Furthermore this interface enables to connect
the analyzer to a network, providing web-
browser access.
This interface is electrically isolated from the
unit’s electronic components and enables
the construction of a network of several ana-
lyzers.
All supported Modbus parameters are listed
in
Chapter 9.
Information about web-browser access is
provided in Chapter 7.
1.3.3 Modbus Interface, Ethernet

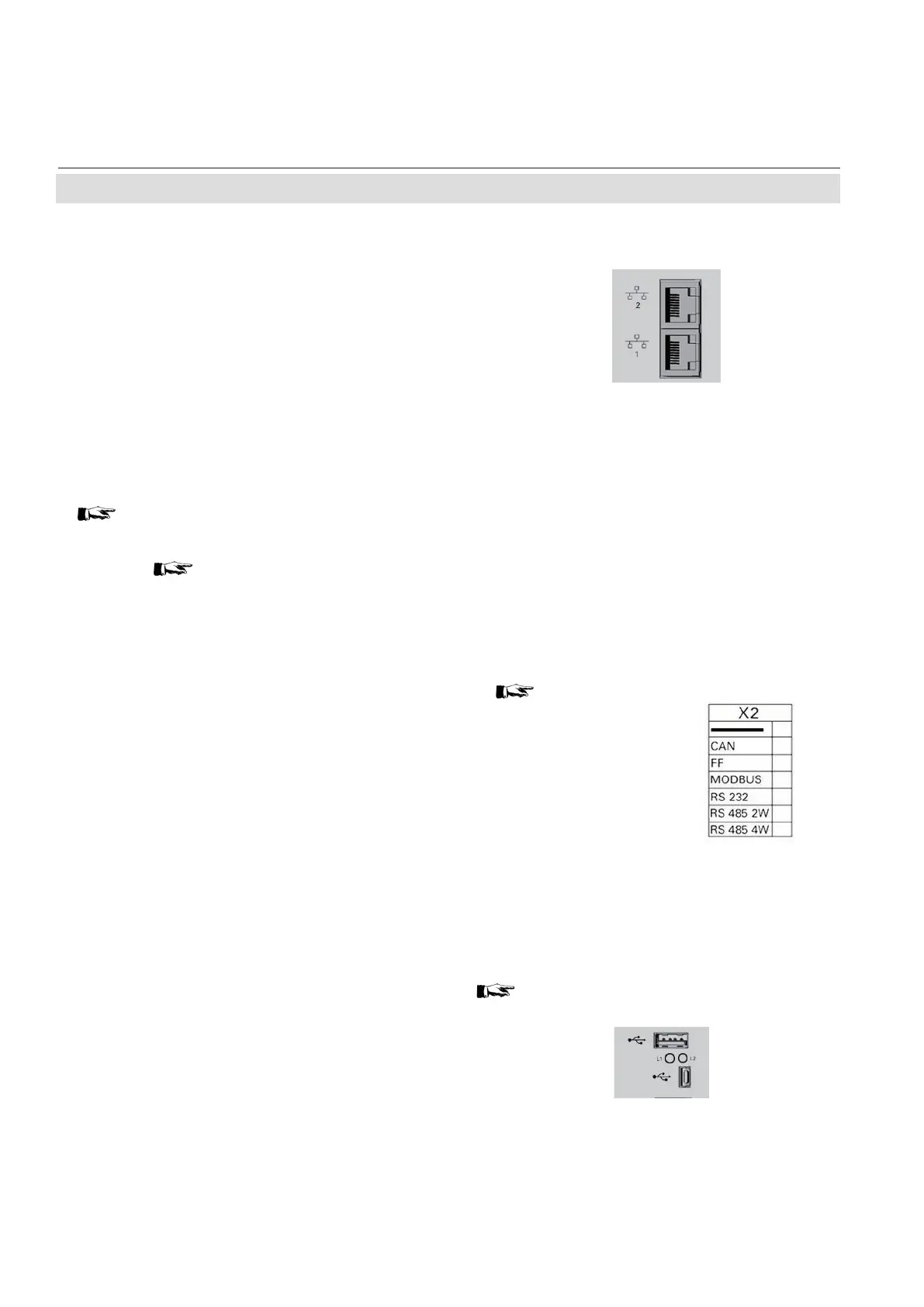

Fig. 1-5: Ethernet Interface Marking
A serial interface with the Modbus protocol
allows communication with external data
acquisition systems. The interface enables
the exchange and modication of measure-
ment and analyzer signals, analyzer status
monitoring as well as remote activation of
procedures.
The serial interface is electrically isolated from
the unit’s electronic components. RS 485 fa-
cilitates the construction of a network of seve-
ral analyzers. RS 232 interface only supports
communication between two end devices.
1.3.4 Serial Interface
A table nearby the
connector shows the
interface conguration
(here: MODBUS)
X
All supported Modbus parameters are listed
in Chapter 9.
Fig. 1-6: Serial Interface Marking
Note!
All analyzers provide 2 Ethernet connectors
1.3.5 USB Interfaces
Fig. 1-7: USB Interfaces
Two USB connectors enable connecting
• storage devices to the bigger port for
external data and analyzer conguration
storage
• external computers to the smaller Mini
USB port.
Chapter 7 provides more information on
how to use USB ports.
