Emerson X-STREAM XE - Fig. 2-11: X-STREAM XEXF Field Housings - Power Supply Terminals; Fuse Holders; Fig. 2-12: X-STREAM XEXF Field Housings - Signal Terminals

Emerson Process Management GmbH & Co. OHG2-18
X-STREAM XE
Instruction Manual
HASXEE-IM-HS
10/2012

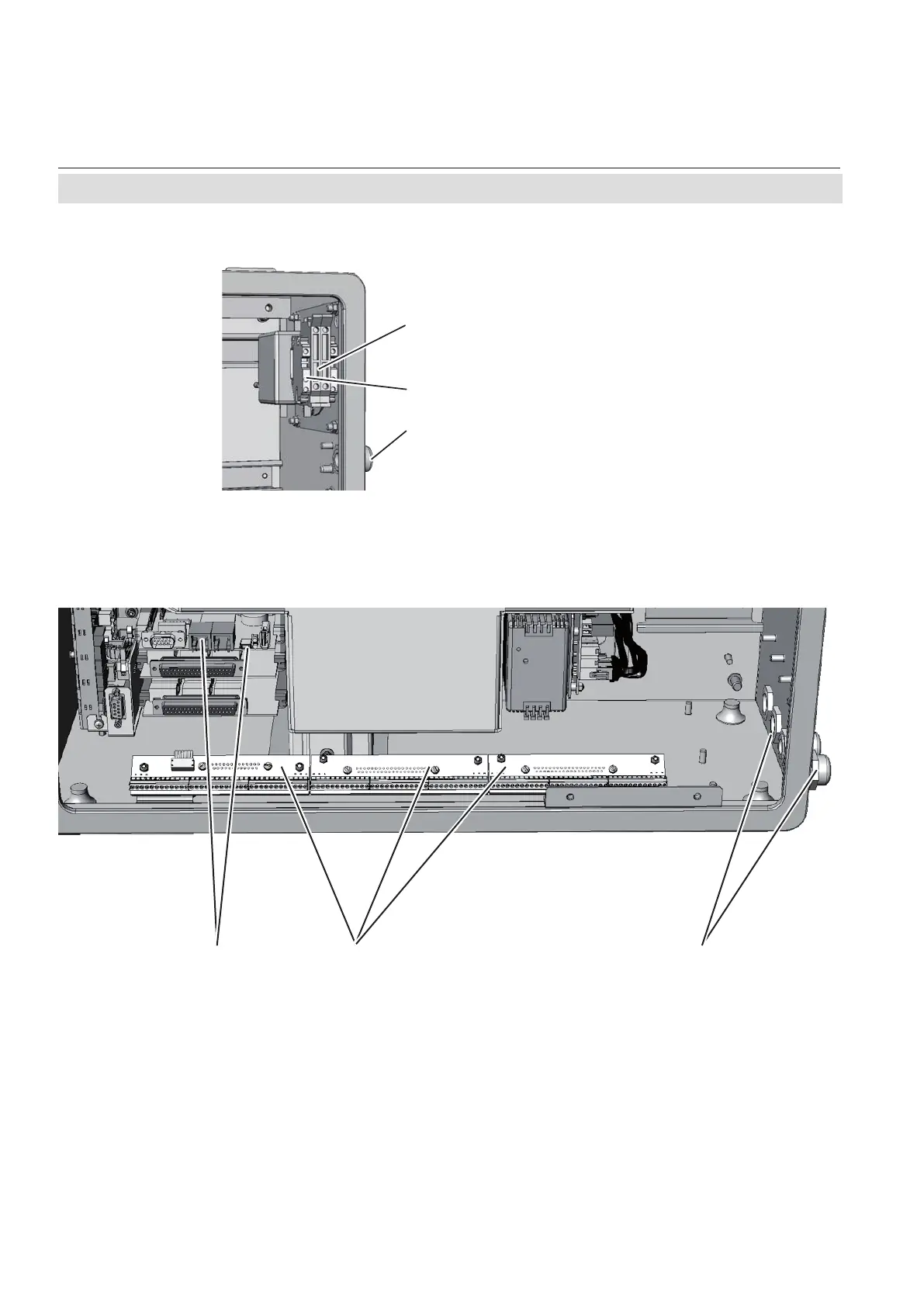

Fig. 2-11: X-STREAM XEXF Field Housings - Power Supply Terminals / Fuse Holders
2.2.3 Model-Specic Technical Data: X-STREAM XEXF Field Housings
1 Ethernet & USB
2 Analog & digital I/O terminal strips
3 Max. 4 signal cables entries
1 2 3
Note!
Depending on the actual analyzer conguration
not all shown terminal strips may be installed!
Fig. 2-12: X-STREAM XEXF Field Housings - Signal Terminals
1 Power supply terminals with
fuse holders
2 Grounded conductor clamp (PE)
3 Power supply cable entry
3
2
1
