Emerson X-STREAM XE - Fig. 2-3: UPS 01 Tabletop Power Supply Unit

Emerson Process Management GmbH & Co. OHG 2-9
X-STREAM XE
Instruction Manual
HASXEE-IM-HS
10/2012
2
Technical Data
2.2.1 Model-Specic Technical Data: X-STREAM XEGK
Nominal input voltage 120 / 230 V 50/60 Hz
Input voltage range 95–138 V / 187–264 V , 47–63 Hz
Power consumption max. 240 VA
Input
via rubber connector (IEC plug; Fig. 2-3 ).
Power input fuses The PSU does not include user-replaceable fuses.
Nominal output voltage 24 V
(± 5 %)
Nominal output current 5 A
Surge protection
current limiting typ. 110 % I
nom
, straight response curve,
short-circuit-proof
Excess temperature protection
reduction of output voltage to disconnection. Resets
after cooling.
Output 3-pin XLR socket
Weight approx. 2.5 kg (4.8 lb)
Certication
Safety EN 60950, UL1950, CSA22.2 NO 950-95
EMC
EN 50081-1 (emitted interference)
EN 50082-2 (interfe-
rence resistance), et al

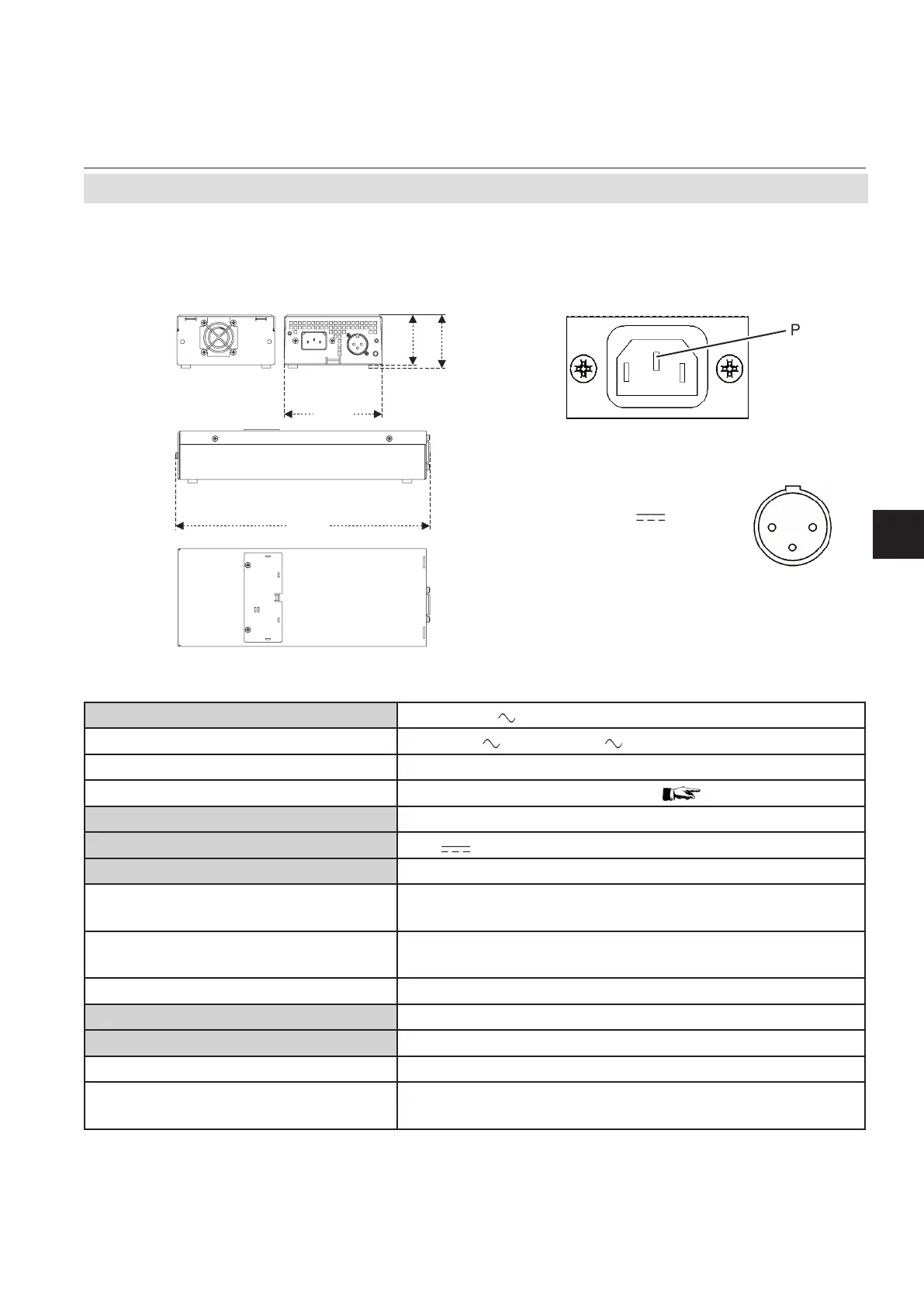

Fig. 2-3: UPS 01 Tabletop Power Supply Unit
PE
275.3
105.9
54.2
57.7
IEC power input socket
Pin 1: ME
Pin 2: + 24 V
Pin 3: 0 V (⊥)
shield: housing ange
Pin conguration for 24 V DC output socket
2
13
(shielding)
2.2.1.1 Data for Optional External Power Supply Units
Model UPS 01 T
This PSU can be ordered as an option for supplying power to one tabletop unit.
All dimensions in mm [in]
