1.2 Conguration of Gas Lines
Depending on the application and the selected
analyzer options, several gas line congurati-
ons are available, exemplied in the following
diagram of a dual-channel analyzer:
1.2.7 Congurations
Note!
X-STREAM gas analyzers feature at maxi-
mum eight gas connectors. So, parallel tubing
is not possible for ve channel congurations
(at least two out of ve channels need to be
serial tubed)!

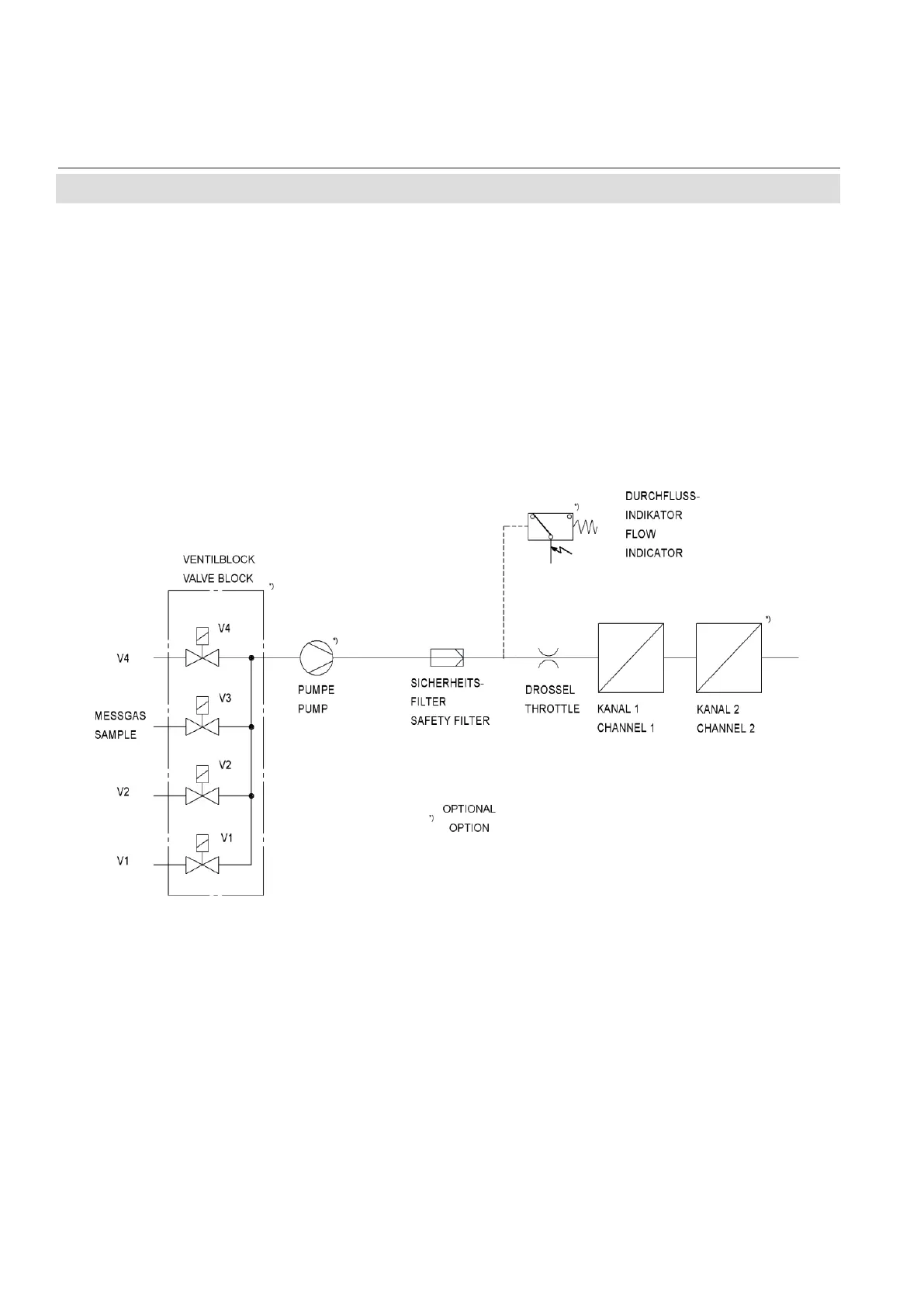

Fig. 1-4: Gas Flow Diagram: Single Channel Or in Series
