Emerson X-STREAM XE User Manual

Emerson Process Management GmbH & Co. OHG 6-31
X-STREAM XE
Instruction Manual
HASXEE-IM-HS
10/2012
6
Software Menus
Ch1
Concentration
LoLo alarm: Off
Lo alarm: Off
Hi alarm: Off
HiHi alarm: Off
Concentration 5.000 ppm
Input
0.000
ppm
CO
Output
0.000
ppm
CO
0.000
ppm
CO
0.000
ppm
CO
Flow 1 0.00 l/min
Labels
Gas name
1)
Unit text
1)
6.2.3 Setup Menu

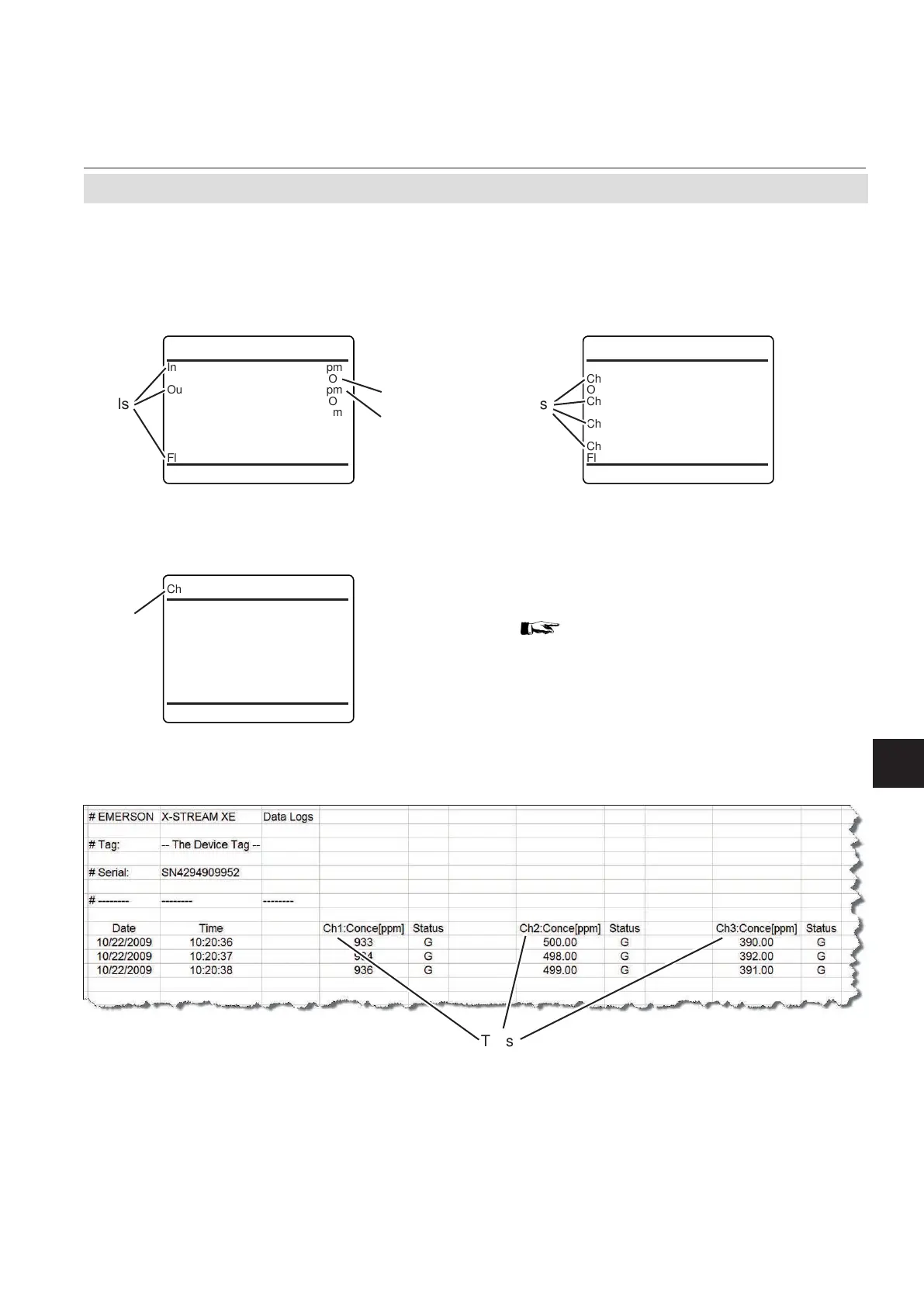

Fig. 6-3: Usage of Labels and Tags
Examples:
MEASUREMENT DISPLAY, if also tags are
setup:
Identication of component specic menu
pages:
Identication of components in log les:
MEASUREMENT DISPLAY, if besides gas
names and units, only labels are setup:
Tag
Tags
Input
0.000
ppm
Ch1 CO
Output
0.000
ppm
Ch2 CO
0.000
ppm
Ch3 CO
0.000
ppm
Ch4 CO
Flow 1 0.00 l/min
Tags
1)
To congure gas names and units:
SETUP - DISPLAY - MEASURE-
MENTS, page 6-25.
