Emerson X-STREAM XE - X-STREAM XEXF: Field Housing with (XEF) Single or (XDF) Dual Compartment; Fig. 2-9: X-STREAM XEF - Dimensions

Emerson Process Management GmbH & Co. OHG 2-15
X-STREAM XE
Instruction Manual
HASXEE-IM-HS
10/2012
2
Technical Data
2.2.3 Model-Specic Technical Data: X-STREAM XEXF Field Housings
2.2.3 X-STREAM XEXF: Field Housing With (XEF) Single or (XDF) Dual Compartment
All dimensions in mm
[inches in brackets]
Cable glands
Gas ttings
Connector
for potential
equalization

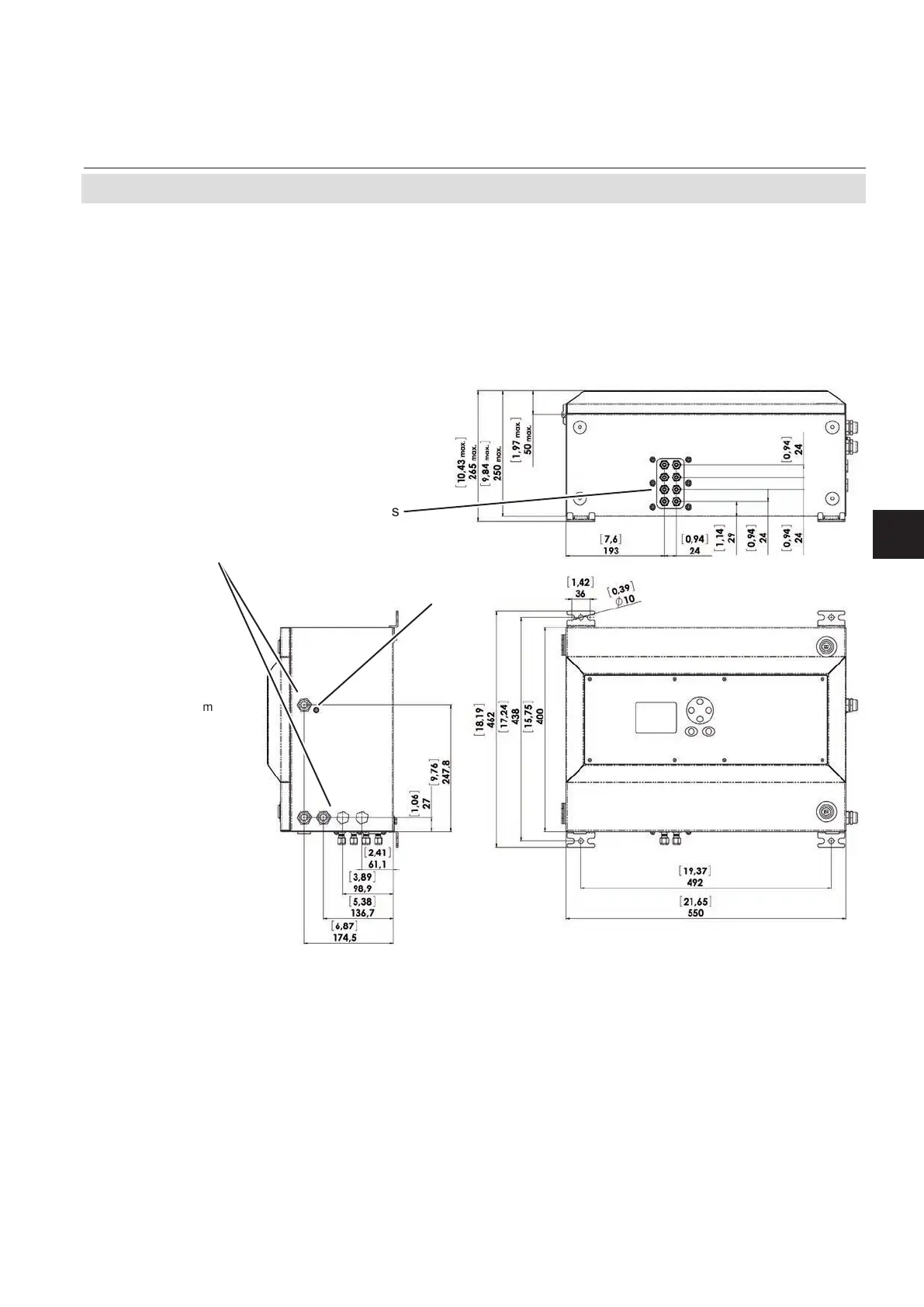

Fig. 2-9: X-STREAM XEF - Dimensions
