7.6.3.1 Locating the Sensor

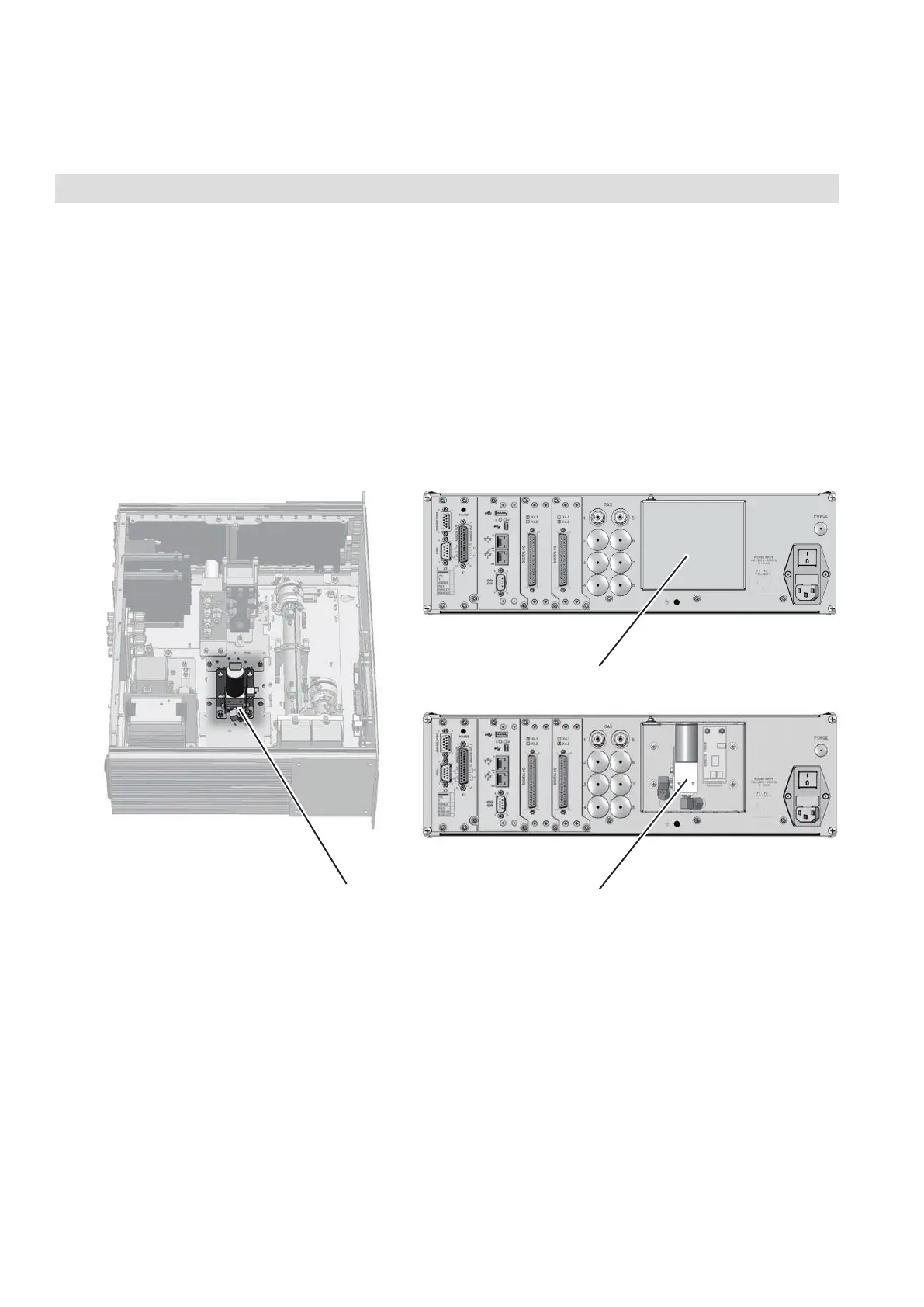

Fig. 7-12: Location of the EO
2
Sensor Unit
Basically X-STREAM analyzers provide dif-
ferent variations of internal designs:
• In instruments with internal heated box
covering the physical components, elec-
trochemical sensors are installed outside
this box.
Instruments without internal thermostatic
control have the sensor installed onto
the basic mounting plate (see left side of
gure 7-12).
• XEGP may also have the electrochemical
oxygen sensor installed at the rear panel
(see right side of gure 7-12).
If your analyzer features eO2 sensor at rear
panel, continue with page 7-57.
7.6 Replacing Worn Out Sensors
1 eO2 sensor Unit
2 Cover for rear panel installation
1
1 (shown behind transparently
visualized cover)
2
