Emerson Process Management GmbH & Co. OHG2-22
X-STREAM XE
Instruction Manual
HASXEE-IM-HS
10/2012
NO:FS 150 … 5000 ppm
IR UV UV eO2
11812345678
NO
2
:FS 100 … 5000 ppm
SO
2
:FS 100 … 5000 ppm
O
2
:FS 5 … 25 %
NO:FS 150 … 5000 ppm
IR UV UV IR eO2
11912345678
NO
2
:FS 100 … 5000 ppm
SO
2
:FS 100 … 5000 ppm
CO
2
:FS 100 … 1000 ppm
O
2
:FS 5 … 25 %
2.3 Information on Name Plate
2.3 Information on Name Plate
1 Model and installed measuring techniques (here: 1x resp. 2x IR & 2x UV & electrochemical O
2
)
2 Serial number
3 Channel 1: Gas and full scale ranges (here: NO, 150 to 5000 ppm)
4 Channel 2: Gas and full scale ranges (here:SO
2
, 100 to 5000 ppm)
5 Channel 3: Gas and full scale ranges (here: NO
2
, 100 to 5000 ppm)
6 Channel 4: Gas and full scale ranges (here:CO
2
, 100 to 1000 ppm)
7 Channel 5: Gas and full scale ranges (here:O
2
, 5 to 25 %)
8 Manufacturer´s address
9 Certication marks (XEGK, XEGP: on a separate label)
10 Electrical data (XEGK, XEGP: on rear panel)
3
10
3 … 7
5
4
6
2
9
8
8

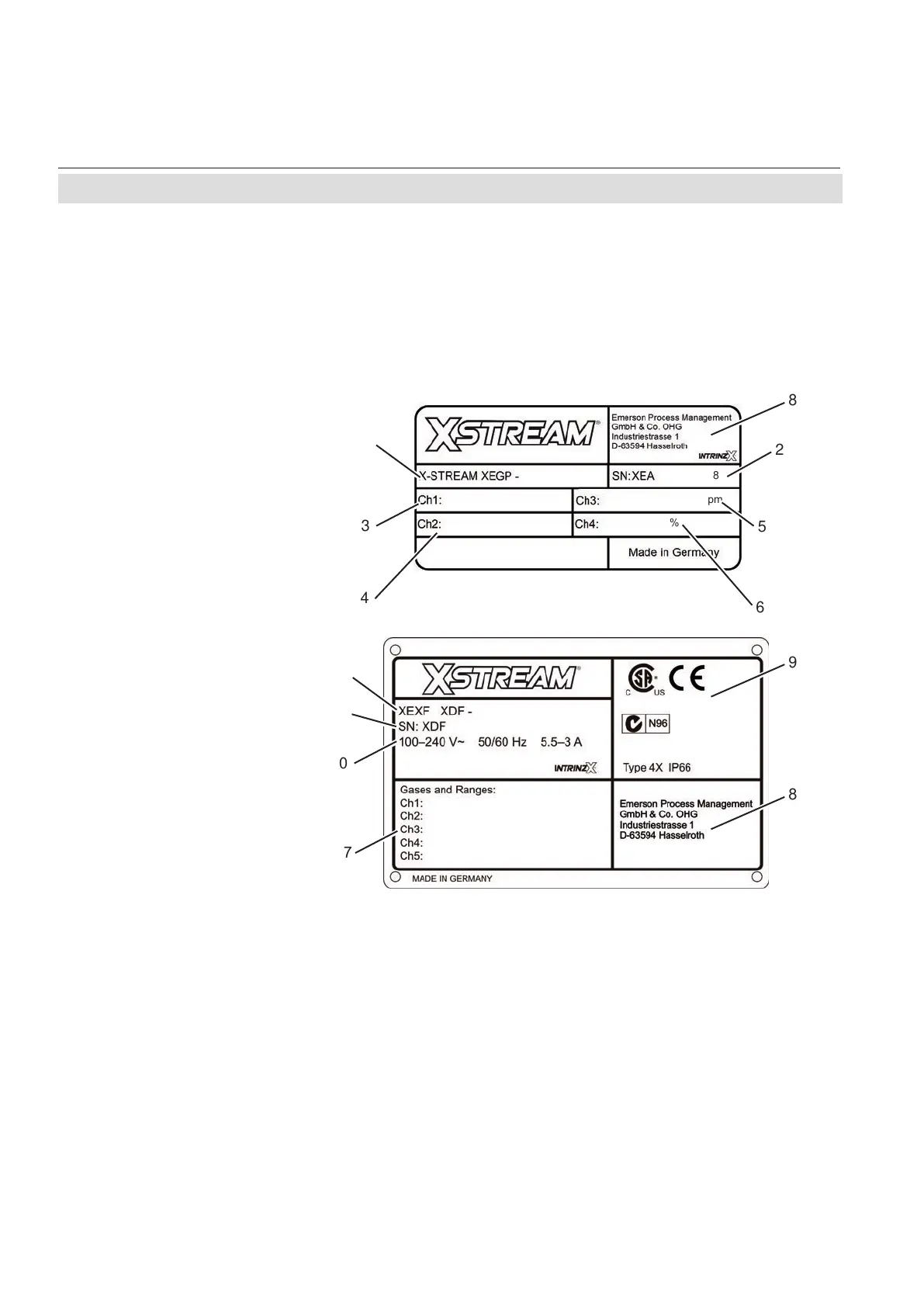

Fig. 2-16: Analyzer Name Plate (examples)
The name plate provides details on the con-
guration of the unit, installed measuring tech-
niques, sample gases and measuring ranges.
It also indicates the unit’s serial number.
The plate is located on either the side or the
rear of the unit.
Note!
Analyzers congured to be installed in ha-
zardous areas have special name plates,
described in the associated manuals.
1
1
2
XEGK, XEGP
Note!
XEGK max. 3 channels!
Field housings
