Emerson Process Management GmbH & Co. OHG6-90
X-STREAM XE
Instruction Manual
HASXEE-IM-HS
10/2012
Setup..
Installed Options..
Flow..
6.2.3 Setup Menu
6.2.3.7.2 Setup Installed Options Flow

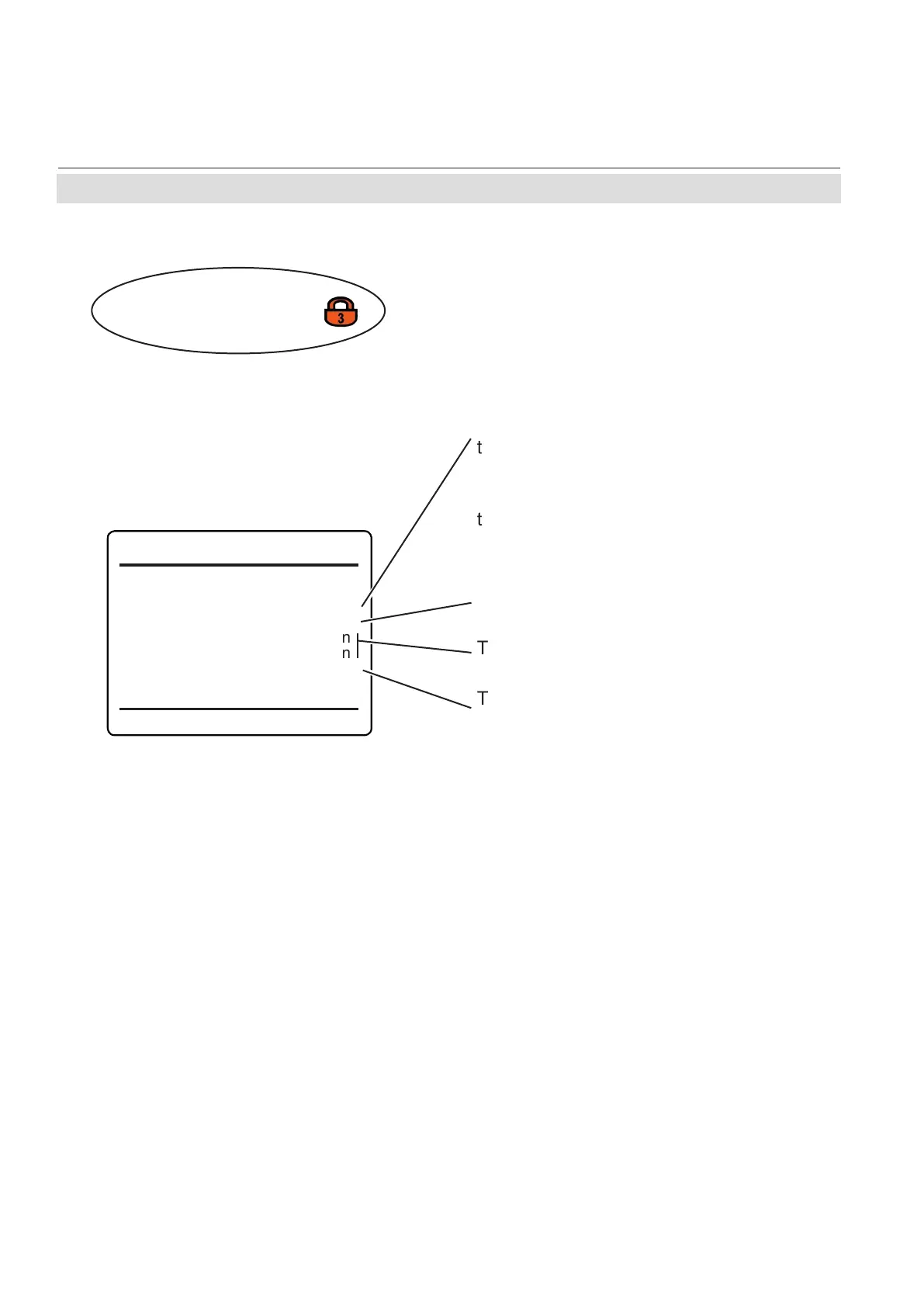

Ch1
Flow
Flow Source: XSP F1
Flow 1.00 l/min
SensorMin.: 0.00 l/min
SensorMax.:
1.50 l/min
Flow Status Good
Select the ow measurement data source for
the currently selected channel.
Available options:
XSP F1 ...XSP F4: internal sensors, connec-
ted to the board XSP
AIN1, AIN2: analog inputs
Currently measured ow.
The sensor´s minimum and maximum limits.
The sensor´s status.
Possible entries: Good, Absent, Failure
