Emotron AB 01-3694-01r2 Mounting 9
2. Mounting
This chapter describes how to mount the VSD.
Before mounting it is recommended that the installation is
planned out first.
• Be sure that the VSD suits the mounting location.
• The mounting site must support the weight of the VSD.
• Will the VSD continuously withstand vibrations and/or
shocks?
• Consider using a vibration damper.
• Check ambient conditions, ratings, required cooling air
flow, compatibility of the motor, etc.
• Know how the VSD will be lifted and transported.

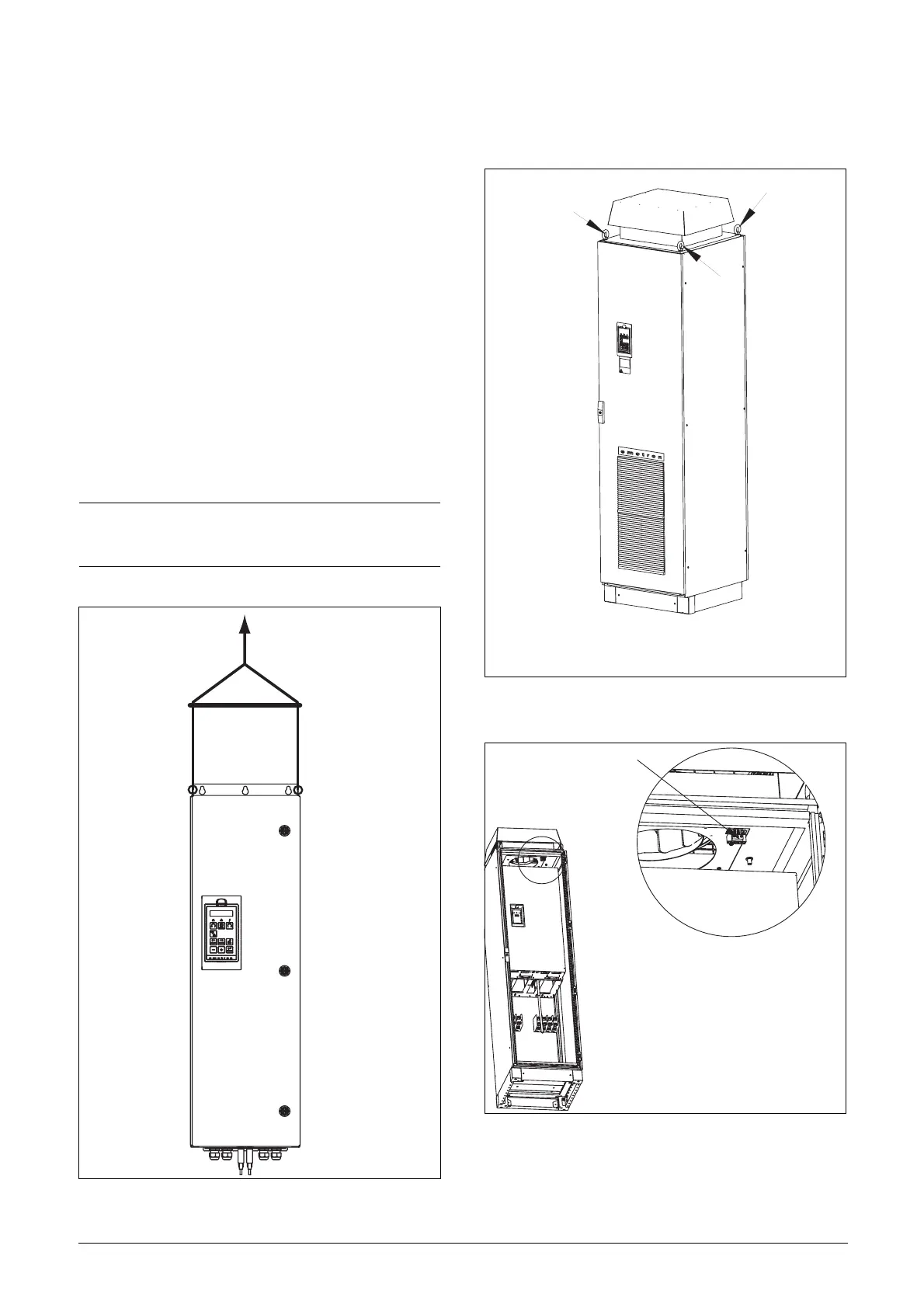

2.1 Lifting instructions
Recommended for VSD models -090 to -250
Fig. 2 Lifting VSD model -090 to -250
Recommended for VSD models -300 to -1500
Fig. 3 Remove the roof plate.
Fig. 4 Remove roofunit
Note: To prevent personal risks and any damage to the
unit during lifting, it is advised that the lifting methods
described below are used.
Load: 56 to 74 kg
*
*
*
A
DETAIL A
*
