20 Installation Emotron AB 01-3694-01r2

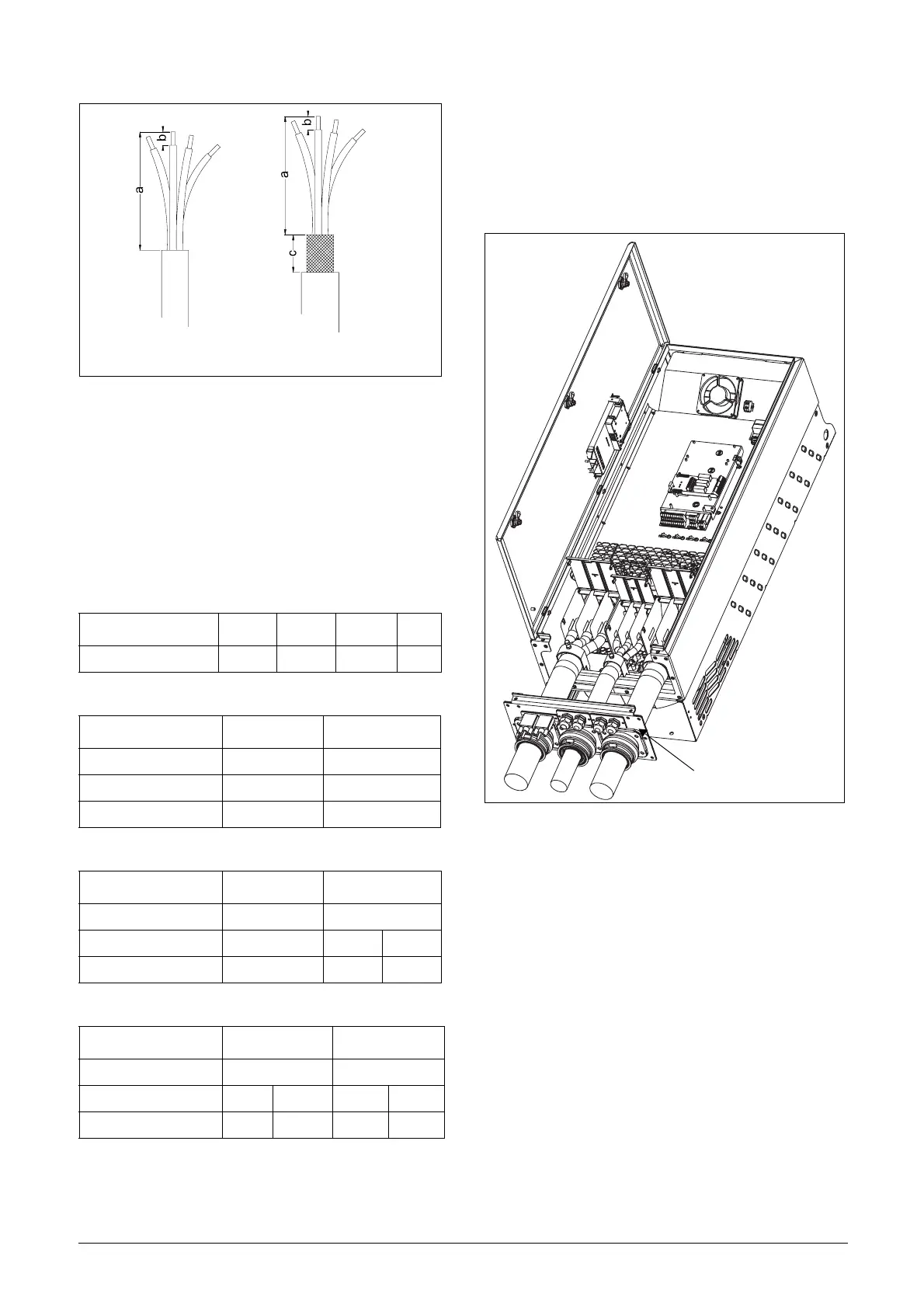

Fig. 24 Stripping lengths for cables
3.4.1 Dimension of cables and fuses
Please refer to the chapter Technical data, section 14.7, page
162.
3.4.2 Tightening torque for mains and
motor cables
3.5 Connect motor and mains
cables
VSD model 090 to 250
To simplify the connection of thick motor and mains cables
to the VSD model 090-250 the cable interface can be
removed.
Fig. 25 Connecting motor and mains cables
1. Remove the cable interface from the housing.
2. Put the cables through the glands.
3. Strip the cable according to Table 8.
4. Connect and tighten the cable in the clamp.
5. Put the cable interface in place and secure with the
screws.
Table 9 Model 003 to 073
003-013 018-037 046-060 073
Tightening torque, Nm 0.5 1.5 1.5 3.2
Table 10 Model 90 to 109
Brake chopper Mains/motor
Block, mm
2
95 95
Cable diameter, mm
2
16-95 35-95
Tightening torque, Nm 14 14
Table 11 Model 146 to 175
Brake chopper Mains/motor
Block, mm
2
95 150
Cable diameter, mm
2
16-95 35-95 120-150
Tightening torque, Nm 14 14 24
Table 12 Model 210 to 250
Brake chopper Mains/motor
Block, mm
2
150 240
Cable diameter, mm
2
35-95 120-150 35-70 95-240
Tightening torque, Nm 14 24 14 24
(06-F45-cables only)
MotorMains
Cable interface
