Emotron AB 01-3694-01r2 Mounting 13

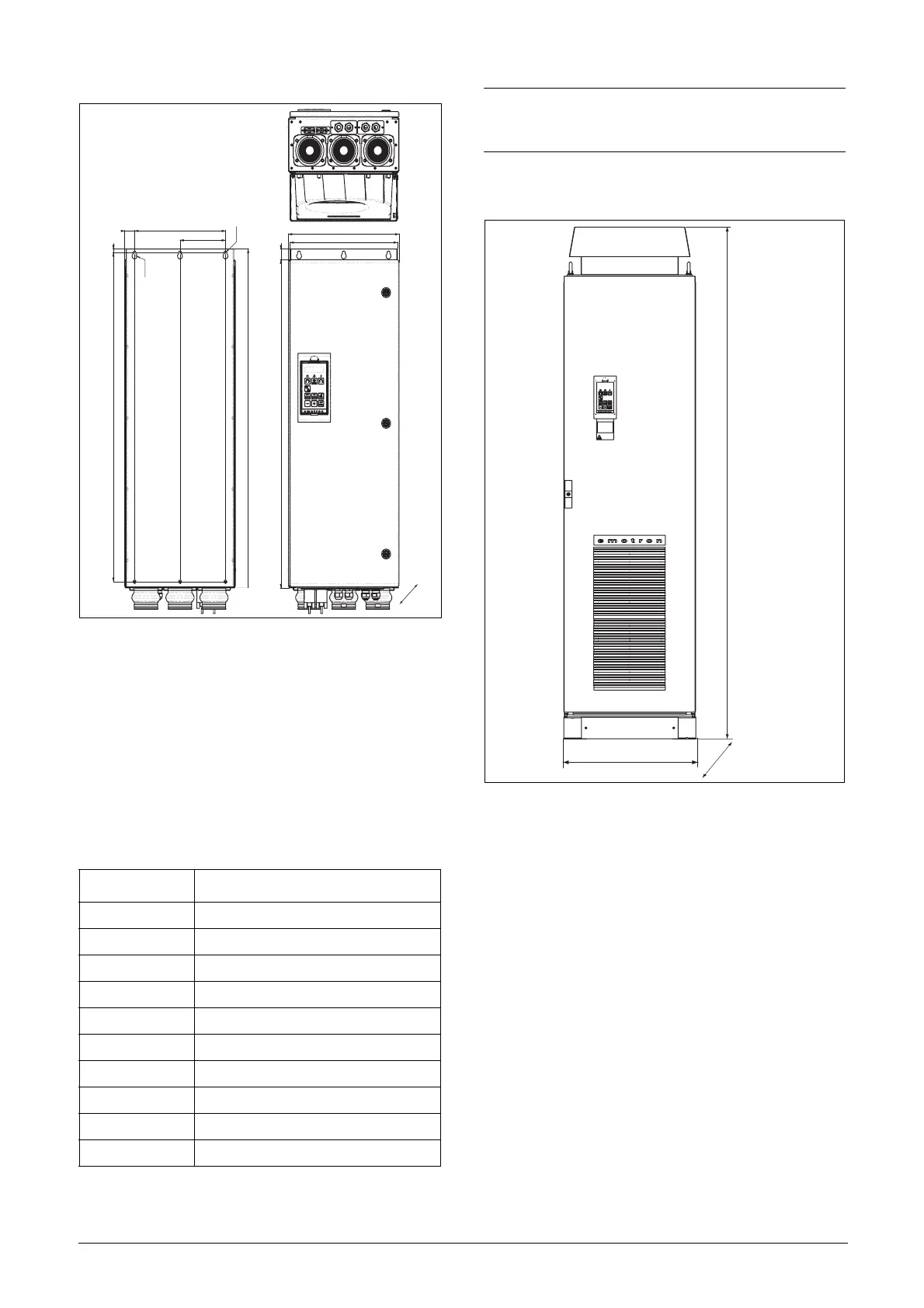

Fig. 14 VSD models 210 - 250 including cable interface for
mains, motor and communication (F)
2.3 Cabinet mounting
2.3.1 Cooling
If the variable speed drive is installed in a cabinet, the rate of
airflow supplied by the cooling fans must be taken into con-
sideration.
2.3.2 Mounting schemes
Fig. 15 VSD models 300 - 500 (G and H)
Table 5 Flow rates cooling fans
FDU Model Flow rate [m
3
/hour]
003 – 013 40
018 – 037 150
046 – 073 165
090 – 175 510
210 – 250 800
300 – 375 1020
430 – 500 1600
600 – 750 2400
860 – 1k0 3200
1200 – 1500 4800
335
344,5
30
922,50
300
22.50
10
925
952,50
150
Ø16(3x)
Ø9(x6)
314
Cable dimensions 27-66 mm
NOTE: For the models 860 to 1500 the mentioned
amount of air flow should be divided equally over the two
cabinets.
600
2320
600
