128 Functional Description Emotron AB 01-3694-01r2

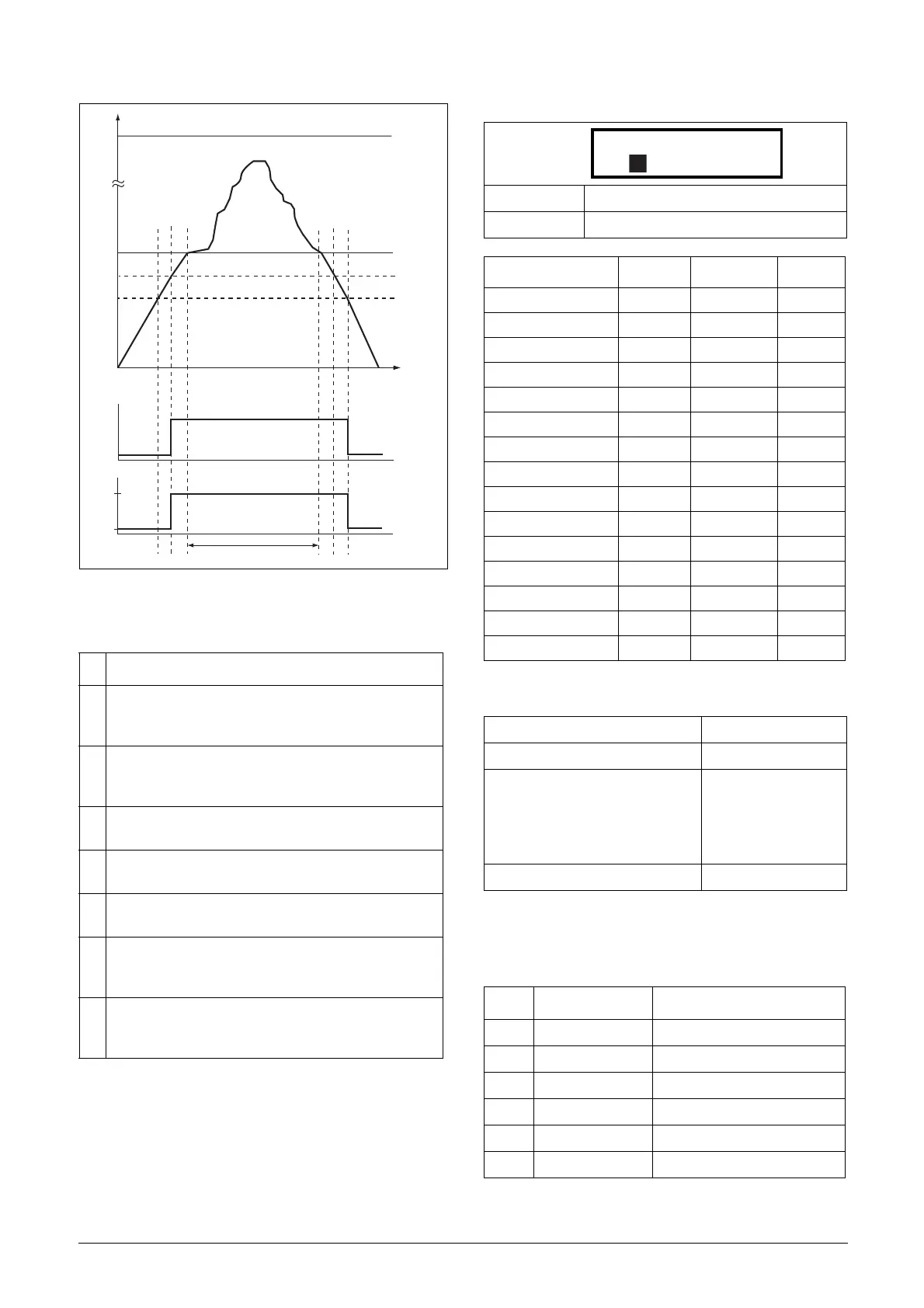

Fig. 105
Analogue Comparator 1 Level High
[612]
Selects the analogue comparator constant high level accord-
ing to the selected value in menu [611].
The default value is 300.
Communication information
Example
This example describes the normal use of the constant level
high and low.
No. Description
1
The reference signal passes the Level LO value from
below (positive edge), the comparator CA1 output stays
low, mode=RUN.
2
The reference signal passes the Level HI value from
below (positive edge), the comparator CA1 output is set
high, mode=RUN.
3
The reference signal passes the threshold level of 4 mA,
the motor speed will now follow the reference signal.
T
During this period the motor speed will follow the refer-
ence signal.
4
The reference signal reaches the threshold level, motor
speed is 0 rpm, mode = RUN.
5
The reference signal passes the Level HI value from
above (negative edge), the comparator CA1 output stays
high, mode =RUN.
6
The reference signal passes the Level LO value from
above (negative edge), the comparator CA1 out-
put=STOP.
1
2
3
4
5
6
20 mA
4 mA
3.2 mA
2.4 mA
CA1 Level HI = 16%
CA1 Level LO = 12%
Max speed
Reference signal AnIn1
CA1
Mode
RUN
STOP
T
t
Default: 300 rpm
Range: Enter a value for the high level.
Mode Min Max Decimals
Process 0 3
Speed, rpm 0 Max speed 0
Torque, % 0 Max torque 0
Shaft Power, kW 0 Motor P
n
x4 0
El Power, kW 0 Motor P
n
x4 0
Current, A 0 Motor I
n
x4 1
Output volt, V 0 1000 1
Frequency, Hz 0 400 1
DC voltage, V 0 1250 1
Heatsink temp,
°C0 100 1
PT 100_1_2_3, °C-100 300 1
Energy, kWh 0 1000000 0
Run time, h 0 65535 0
Mains time, h 0 65535 0
AnIn 1-4% 0 100 0
Modbus Instance no/DeviceNet no: 43402
Profibus slot/index 170/51
Fieldbus format
Long,
1=1 W, 0.1 A, 0.1 V,
0.1 Hz, 0.1
°C, 1 kWh,
1H, 1%, 1 rpm or 0.001
via process value
Modbus format EInt
Menu Function Setting
343 Max Speed 1500
611 CA1 Value Speed
612 CA1 Level HI 300 rpm
613 CA1 Level LO 200 rpm
561 VC1 Dest RunR
562 VC1 Source CA1
612 CA1 Level HI
Stp 300rpm
A
