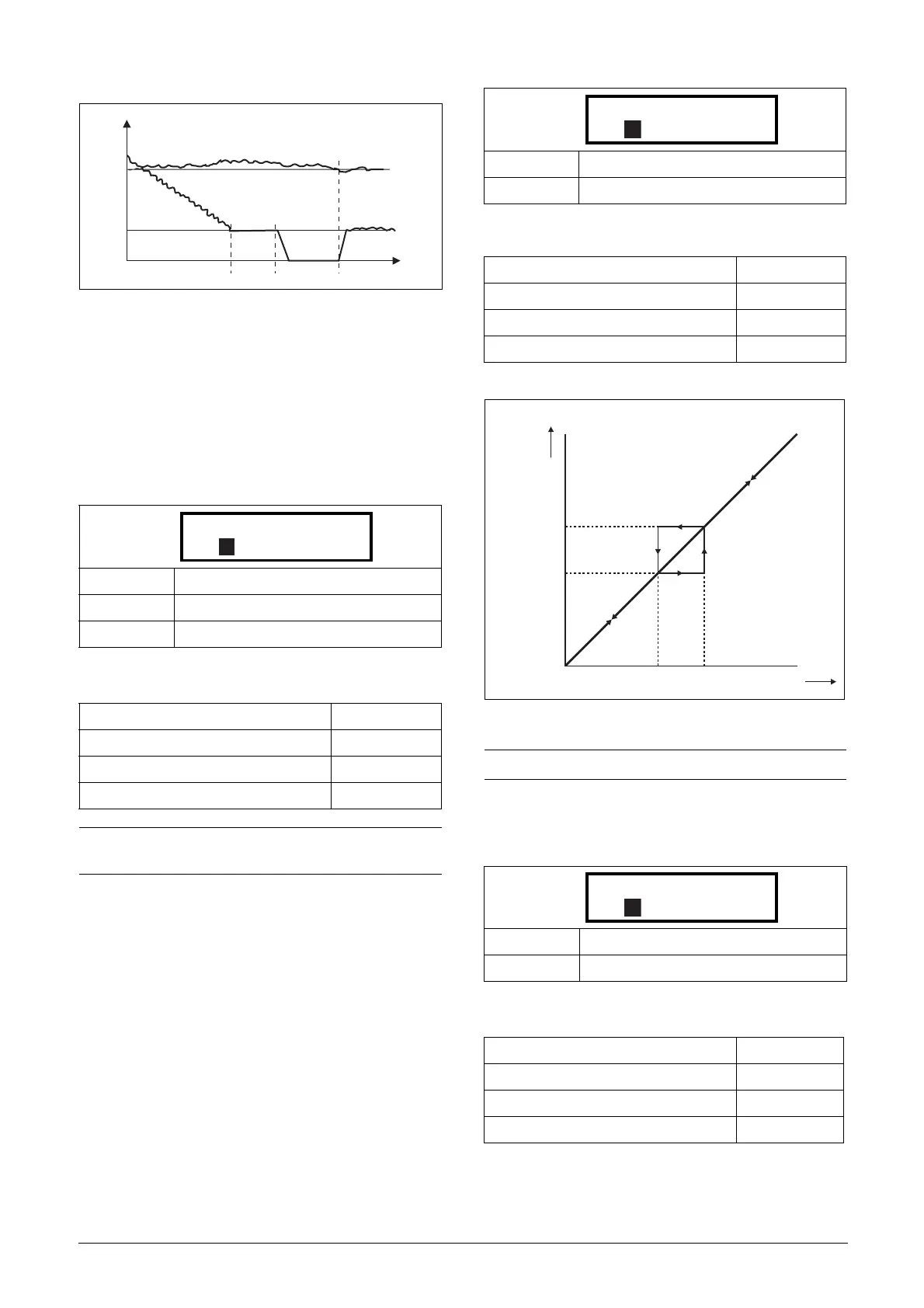

Emotron AB 01-3694-01r2 Functional Description 93
Fig. 78
Maximum Speed [343]
Sets the maximum speed at 10 V/20 mA, unless a user-
defined characteristic of the analogue input is programmed.
The synchronous speed (Sync-spd) is determined by the
parameter motor speed [225]. The maximum speed will
operate as an absolute maximum limit.
This parameter is used to prevent damage due to high speed.
Communication information
Skip Speed 1 Low [344]
Within the Skip Speed range High to Low, the speed cannot
be constant in order to avoid mechanical resonance in the
VSD system.
When Skip Speed Low ≤ Ref Speed ≤ Skip Speed High, then
Output Speed=Skip Speed HI during deceleration and Out-
put Speed=Skip Speed LO during acceleration. Fig. 79
shows the function of skip speed hi and low.
Between Skip Speed HI and LO, the speed changes with the
set acceleration and deceleration times. Skipspd1 LO sets
the lower value for the 1st skip range.
Communication information
Fig. 79 Skip Speed
Skip Speed 1 High [345]
Skipspd1 HI sets the higher value for the 1st skip range.
Communication information
Default: 1500 rpm
Range: Min Speed - 4 x Motor Sync Speed
Dependent on: Motor Speed [225]
Modbus Instance no/DeviceNet no: 43123
Profibus slot/index 169/27
Fieldbus format Int, 1=1 rpm
Modbus format Int, 1=1 rpm
NOTE: It is not possible to set the maximum speed lower
than the minimum speed.
(NG_50-PC-9_1)
PID ref
Min
PID out
PID fb
[342]
speed
343 Max Speed
Stp 1500 rpm
A
Default: 0 rpm
Range: 0 - 4 x Motor Sync Speed
Modbus Instance no/DeviceNet no: 43124
Profibus slot/index 169/28
Fieldbus format Int
Modbus format Int
NOTE: The two Skip Speed ranges may be overlapped.
Default: 0 rpm
Range: 0 – 4 x Sync Speed
Modbus Instance no/DeviceNet no: 43125
Profibus slot/index 169/29
Fieldbus format Int
Modbus format Int
344 SkipSpd 1 Lo
Stp 0rpm
A
(NG_06-F17)
n
Skip Speed HI
Skip Speed LO
Speed Reference
345 SkipSpd 1 Hi
Stp 0rpm
A
