90 Functional Description Emotron AB 01-4429-01r2

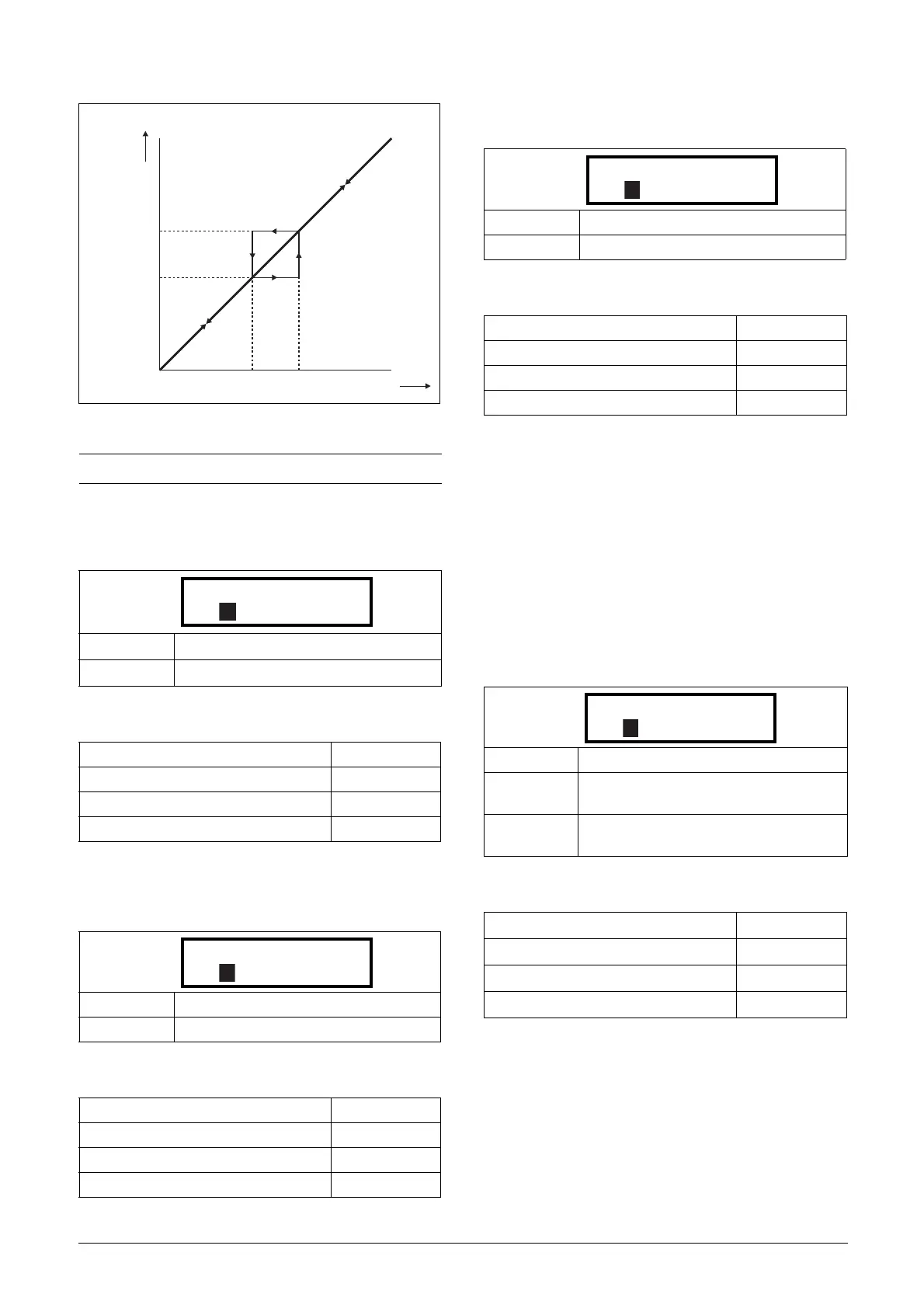

Fig. 70 Skip Speed
Skip Speed 1 High [345]
Skipspd1 HI sets the higher value for the 1st skip range.
Communication information
Skip Speed 2 Low [346]
The same function as menu [344] for the 2nd skip range.
Communication information
Skip Speed 2 High [347]
The same function as menu [345] for the 2nd skip range.
Communication information
Jog Speed [348]
The Jog Speed function is activated by one of the digital
inputs. The digital input must be set to the Jog function
[520]. The Jog command/function will automatically gener-
ate a run command as long as the Jog command/function is
active. The rotation is determined by the polarity of the set
Jog Speed.
Example
If Jog Speed = -10, this will give a Run Left command at
10 rpm regardless of RunL or RunR commands. Fig. 71
shows the function of the Jog command/function.
Communication information
NOTE: The two Skip Speed ranges may be overlapped.
Default: 0 rpm
Range: 0 – 4 x Sync Speed
Modbus Instance no/DeviceNet no: 43125
Profibus slot/index 169/29
Fieldbus format Int
Modbus format Int
Default: 0 rpm
Range: 0 – 4 x Motor Sync Speed
Modbus Instance no/DeviceNet no: 43126
Profibus slot/index 169/30
Fieldbus format Int, 1=1 rpm
Modbus format Int, 1=1 rpm
(NG_06-F17)
n
Skip Speed HI
Skip Speed LO
Speed Reference
345 SkipSpd 1 Hi
Stp 0rpm
A
346 SkipSpd 2 Lo
Stp 0rpm
A
Default: 0 rpm
Range: 0 – 4 x Motor Sync Speed
Modbus Instance no/DeviceNet no: 43127
Profibus slot/index 169/31
Fieldbus format Int, 1=1 rpm
Modbus format Int, 1=1 rpm
Default: 50 rpm
Range:
-4 x motor sync speed to +4 x motor sync
speed
Dependent on:
Defined motor sync speed. Max = 400%, nor-
mally max=VSD I
max
/motor I
nom
x 100%.
Modbus Instance no/DeviceNet no: 43128
Profibus slot/index 169/32
Fieldbus format Int
Modbus format Int
347 SkipSpd 2 Hi
Stp 0rpm
A
348 Jog Speed
Stp 50rpm
A
