234
Using Options
2. Loosen and remove the retaining screws with a cross-head
screwdriver, then remove the shield plate on the Hard Disk
Drive.
3. Grasp both sides of the Hard Disk Drive and pull it out of the
socket.
4. Reattach the shield plate to the circuit board and secure it with
the retaining screws.

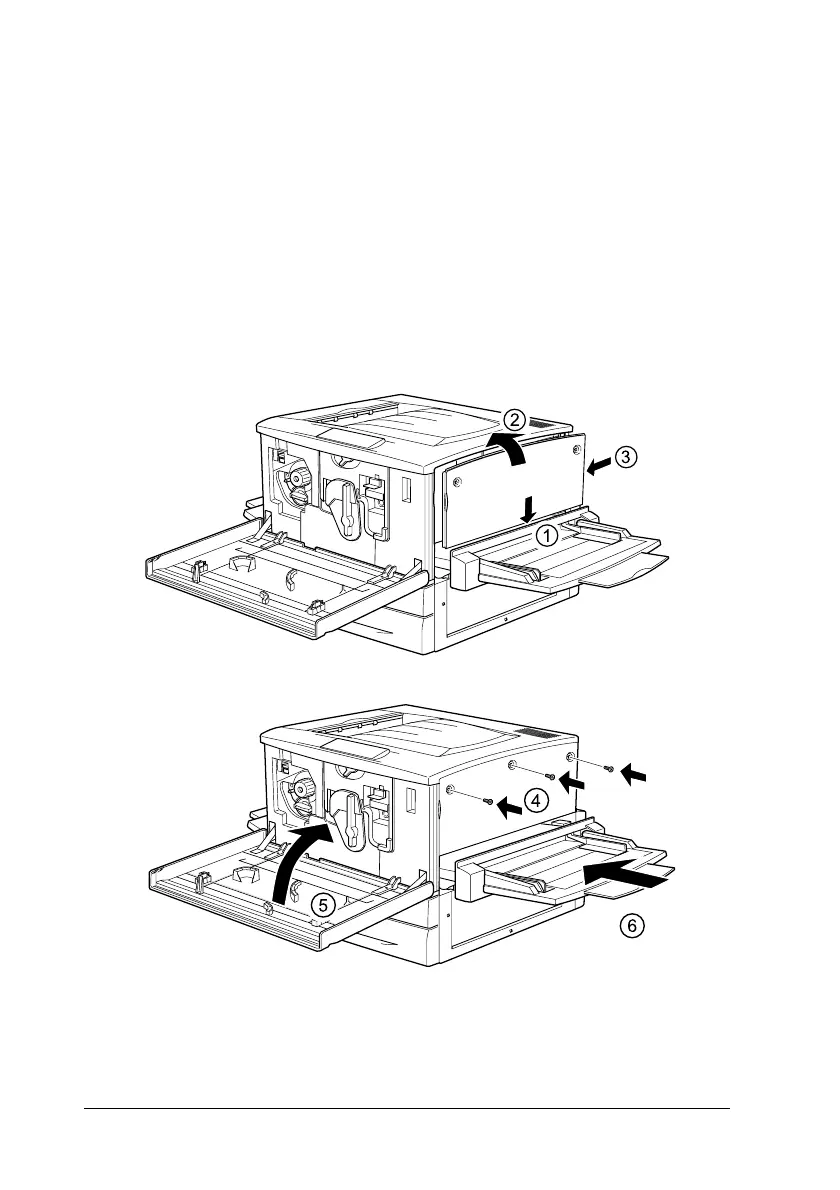

5. Complete the procedure as shown below.
To Next Page
