Troubleshooting
Jam xxxx
The location where the paper jam occurred is displayed at
xxxx
.
xxxx

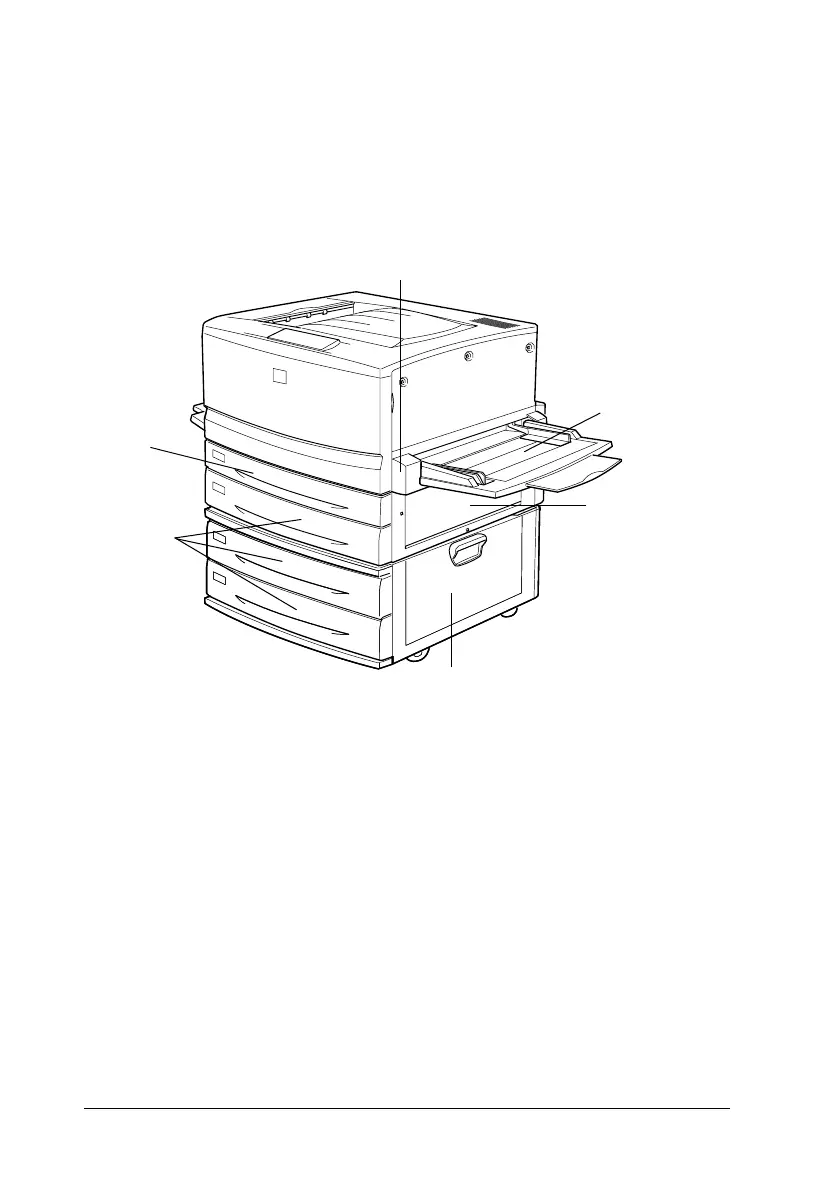

indicates the location of the paper jam. Use the illustrations
below as a guide for the printer parts indicated.
paperpathunit(unit
C)
MP tray
standard and
optionallower
cassettes
Main unit of
the Duplex
Unit (unit G)
side cover of the Large Capacity
Paper Unit (cover E)
paper cassette
cover (cover D)
