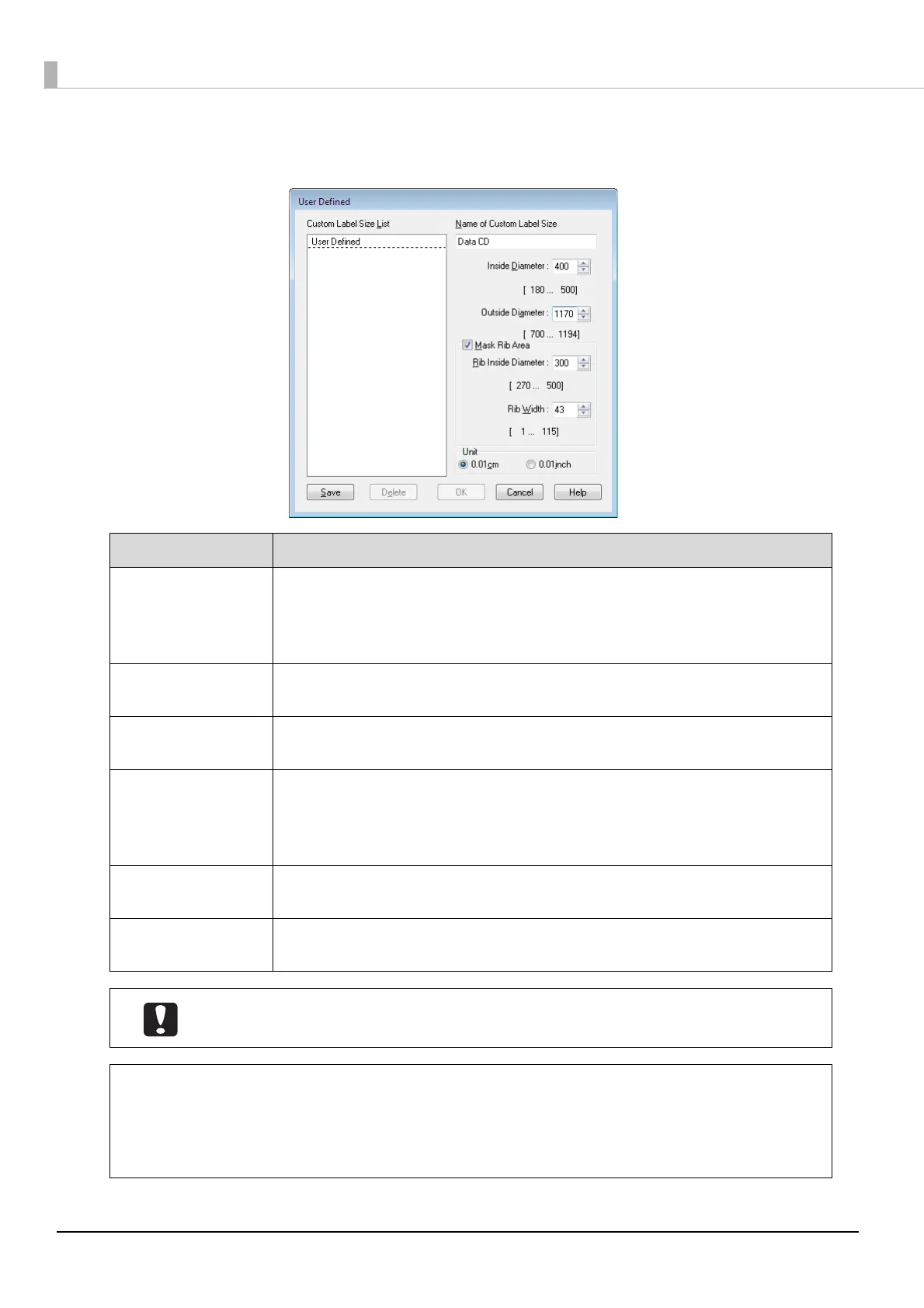

Enter the settings for [Name of Custom Label Size], [Inside diameter], and [Outside
diameter], and click [Save].
Setting item Description
Name of Custom
Label Size
Enter the name of the user defined label size (number of characters: up to 24
characters).
If characters that are 4 bytes are used, the number of characters you can use
becomes less than the above.
Inside Diameter
Set the inside diameter of the label. You can set a value within the range of 180
to 500 (18.0 to 50.0 mm).
Outside Diameter
Set the outside diameter of the label. You can set a value within the range of 700
to 1,194 (70.0 to 119.4 mm).
Mask Rib Area
Select this to mask the rib area.
Rib refers to the protruding section of the disc inside circumference.
Masking the rib area enables you to prevent ink running onto the rib when a
printed disc and rib touch in the output stacker.
Rib Inside Diameter
Set the inside diameter of the rib area. You can set a value within the range of
270 to 500 (27.0 to 50.0 mm).
Rib Width
Set the width of the rib area. You can set a value within the range of 1 to 115 (0.1
to 11.5 mm).
Printing inside the rib area may result in ink getting on discs, discs sticking together, or
discoloration.
Setting the range outside of the recommended print area (inside diameter of 45.0 mm or
more and outside diameter within 116.0 mm) and printing may result in the discs or tray
becoming dirty, peeling off or blurring of the print, or discs sticking together. Check the
label print range of the discs you are using before configuring the setting. See “Printable
area” on page 77 in this guide for details on the recommended print area.
