Epson LX-300 Service Manual

Appendix
LX41M Service Manual
I
1
,4
T
P
+
—
1-
u
r
.
,
. 1
NU
ml-
00
I
w
1
I

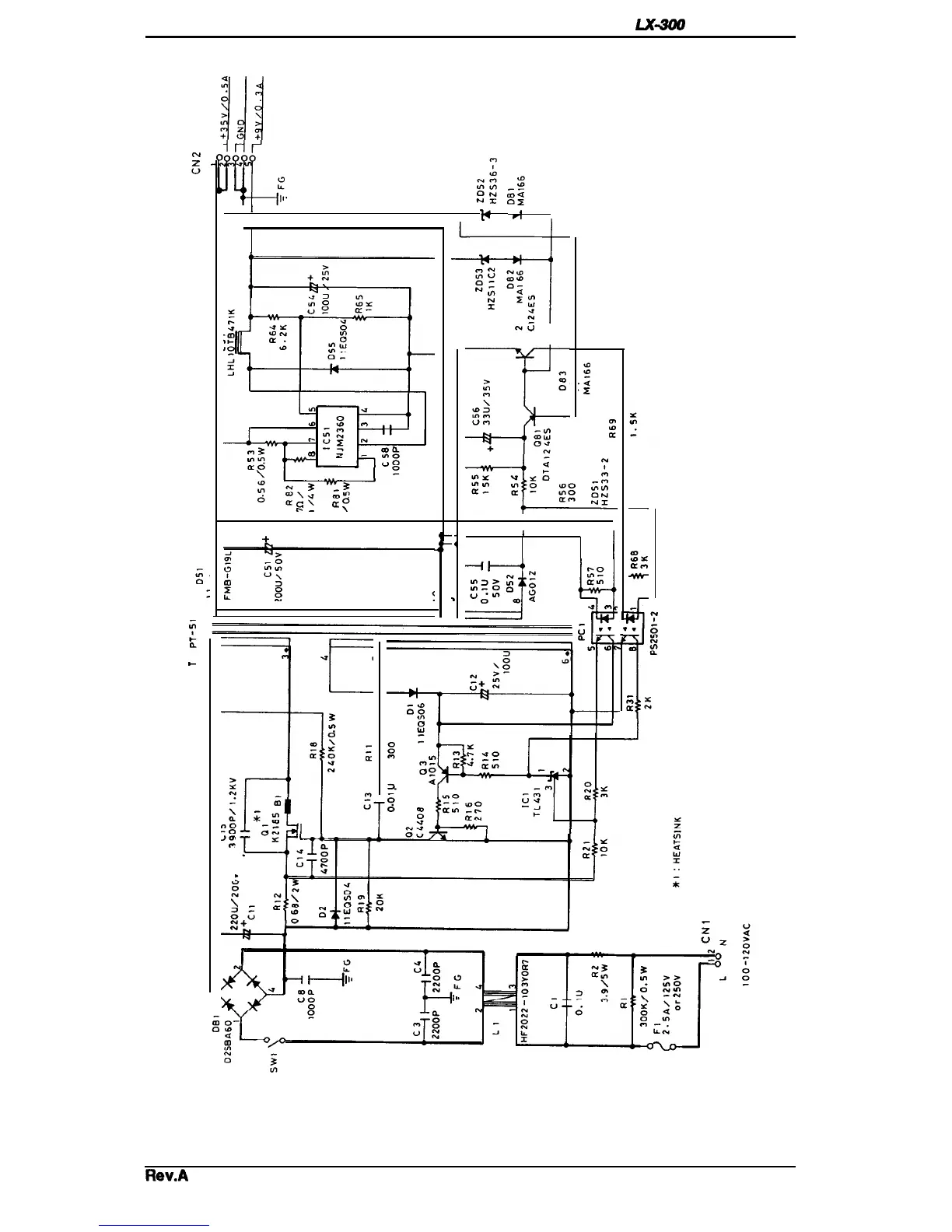

Figure A-3. C130 PSB Board Assembly Circuit Diagram
Rev.A
A-7

Epson LX-300 Specifications

General

Print Method	9-pin impact dot matrix
Interface	Parallel
Paper Handling	Friction feed, tractor feed
Weight	4.4 kg
Operating Environment	Temperature: 5 - 35°C, Humidity: 10 - 80%
