LX~lW
Service Manual
Operating
Principb
2.1.4 Ribbon Advance Mechanism
The ribbon is held between
the
ribbon
advance
roller
(ribbon
driven
gear)
and
the
ribbon pressure
roller. When the carriage moves on the CR guide shaft from left to right and vice versa, the timing
belt turns the belt driven pulley. Then the torque is transmitted to the ribbon driving gear through
the gear trains.
The ribbon driving gear rotates counterclockwise no matter what direction the
carriage moves, because a planetary gear is used in the gear linkage.
Table 2-3. Ribbon Advance Gear Linkage
1
Direction of Carriage Movement
Gear Linkage
I
Left to right
Belt driven pulley
+
Gear(1)+ Gear (2)+
(indicated by the black arrow)
Ribbon driving gear
Right to light
Belt driven pulley
+
Gear(1)
-+
Gear (3)+
indicated by the white arrow)
Gear (4)
+
Ribbon driving gear
The ribbon brake
sprina
attached to the exit of the cartridge case, prevents slack in the ribbon and
keeps the ribbon tension at an appropriate level.
The
ribbon mask prevents the ribbon from
brushing against the paper.
Ribbo
Ribbon

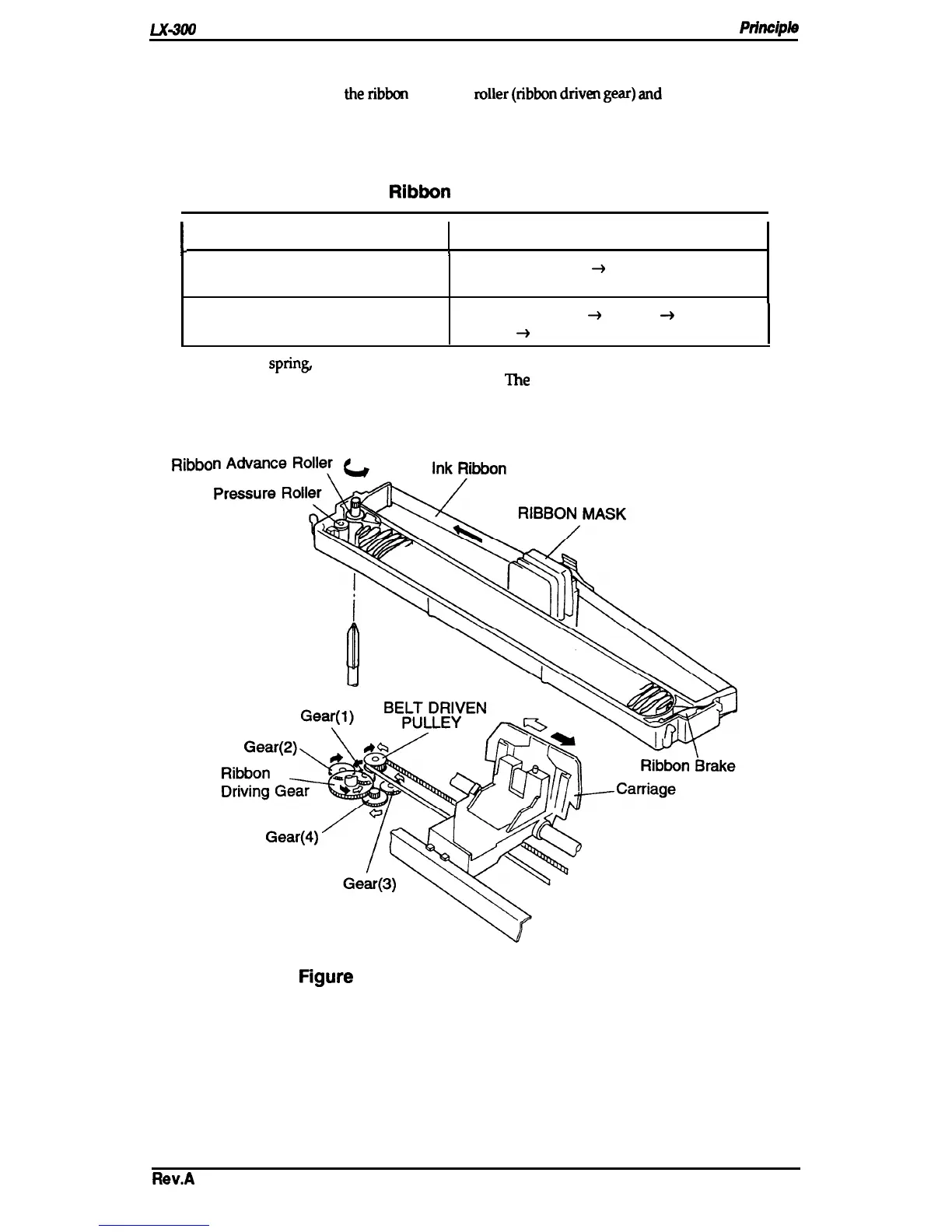

Figure 2-8. Ribbon Advance Gear Linkage
Spring
Rev.A
2-7
