Epson LX-300 Service Manual

LX-300 Service Manual
Disassembly and Assambly
3.2.4.4 Removing the DETECTOR,PE
1.
Remove the printer mechanism (see Section 3.2.4).
2. Remove the PLATEN (see Section 3.2.4.3).
3. Release the SHAFT FRICTION of the PAPER GUIDE,UPPER from the clips on the
FRAME,RIGHT and LEFT.
4. Remove the PAPER GUIDE,UPPER from the FRAME,RIGHT and LEIT.
c
s
ON
GHT

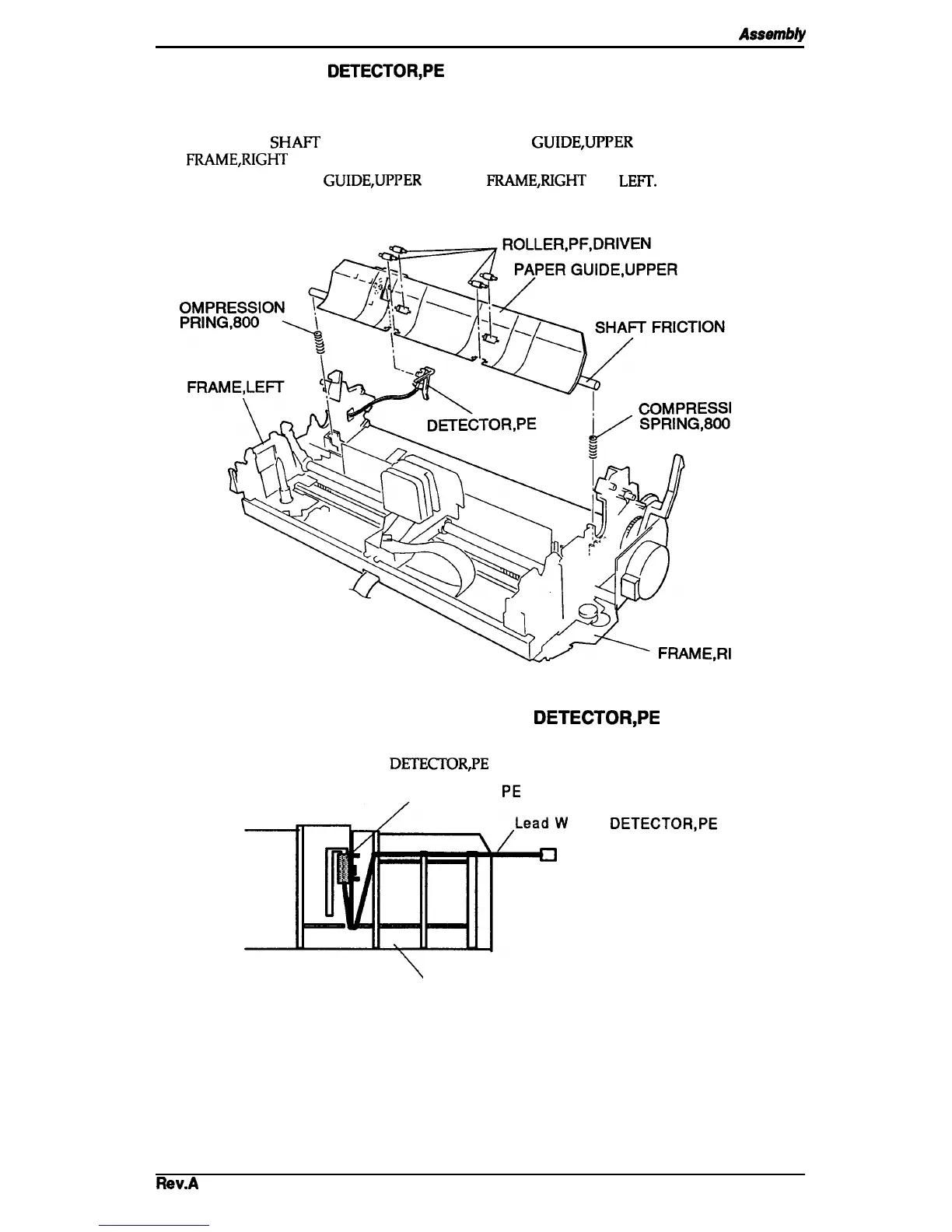

Figure 3-12. Removing the DETECTOR,PE
5. Release the 2 clips securing the DETECTOR,PE and remove it.
DETECTOR, PE
ire
of
DETECTOR,PE
\ PAPER GUI DE, UPPER
Figure 3-13. Wiring of the PE Sensor
Rev.A
3-13

Epson LX-300 Specifications

General

Print Method	9-pin impact dot matrix
Interface	Parallel
Paper Handling	Friction feed, tractor feed
Weight	4.4 kg
Operating Environment	Temperature: 5 - 35°C, Humidity: 10 - 80%
