Epson LX-300 Service Manual

Appendix
IX-3tM Service Mhnuai
A.3 CIRCUIT BOARD COMPONENT LAYOUT
Swl
SU2
fli ‘n’ “0
2
~ ‘:3
81
9
RH2 RL= —

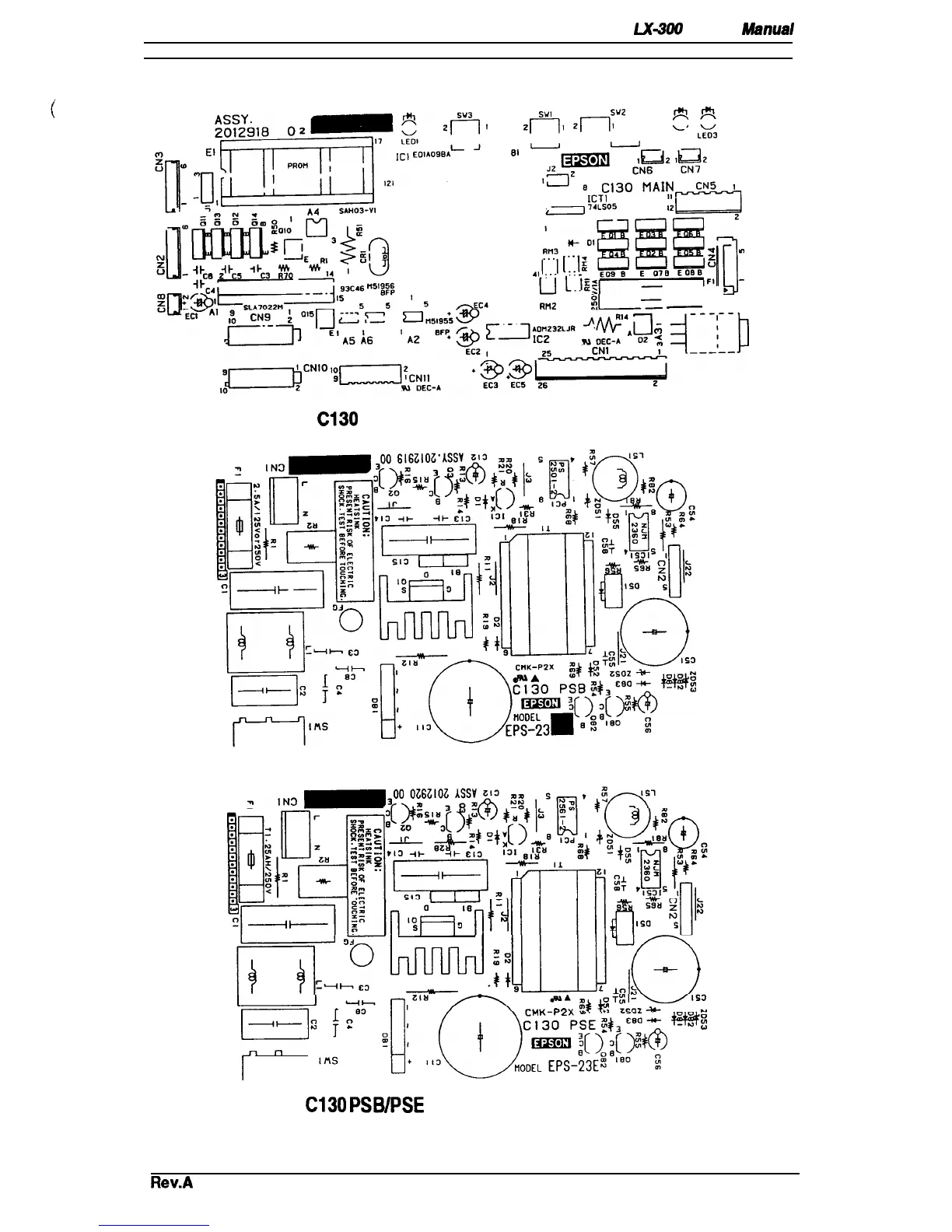

Figure A-5. C130 MAIN Board Assembly Component Layout
J-I
1
Figure A-6. C130 PSB/PSE Board Assembly Component Layout
Rev.A
A-9

Epson LX-300 Specifications

General

Print Method	9-pin impact dot matrix
Interface	Parallel
Paper Handling	Friction feed, tractor feed
Weight	4.4 kg
Operating Environment	Temperature: 5 - 35°C, Humidity: 10 - 80%
