Epson LX-300 Service Manual

LX-3W Sanka Manual
Disassamb& and Assembly
3.2.1 Removing the Printhead
1.
Remove the COVER ASSY.,PRINTER, EDGE GUIDE ASSY., ribbon cartridge, TRACTOR
ASSY., PLATEN KNOB, and optional color upgrade kit.
2.
Remove the CPB (M3 x 14) screw attaching the printhead.
3. Remove the printhead.
4. Remove the flexible flat cable (lWC) from the printhead.

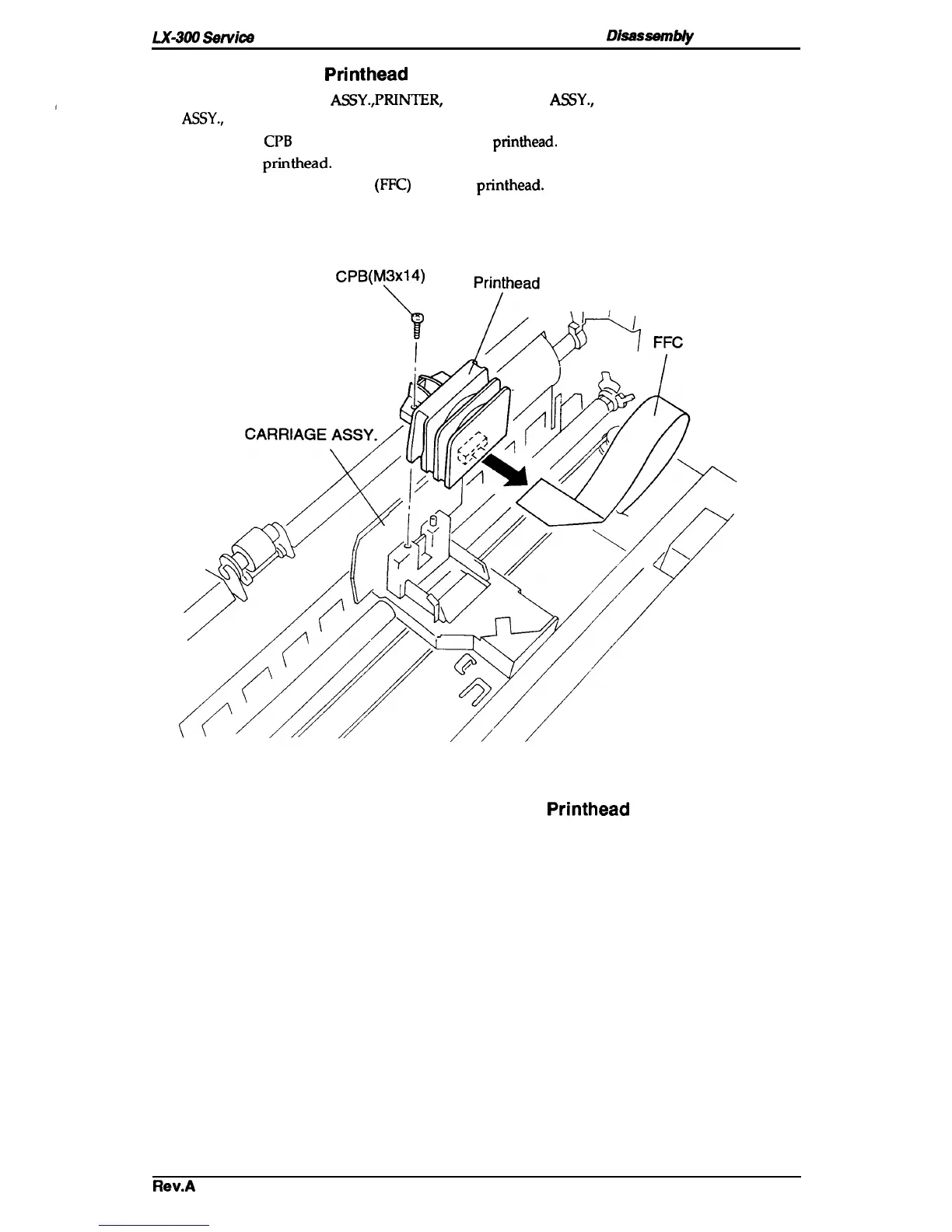

Figure 3-2. Removing the Printhead
Rev.A
3-5

Epson LX-300 Specifications

General

Print Method	9-pin impact dot matrix
Interface	Parallel
Paper Handling	Friction feed, tractor feed
Weight	4.4 kg
Operating Environment	Temperature: 5 - 35°C, Humidity: 10 - 80%
