Epson Stylus Color 670 Service Manual

EPSON Stylus COLOR 670 Revision A
Adjustment Using the Adjustment Program 121
5.3.12 Print A4 Check Pattern
This function is to check the adjustment result comprehensively on the
plain paper. By performing this function, the following items are printed.
o 360dpi Black / Color Pattern print
If there is no print blur or white lines on the print pattern, the
adjustment is completed.
o Nozzle Check Pattern print
If dot is not missing and each nozzle print pattern is uniformly printed,
it is OK.
o Alignment Pattern print
Check the alignment on each nozzles on Uni-d print and the alignment
of black and each color.
o Head Angular Adjustment
o Head Actuator Voltage ID
o Ink Waste Pad Counter Value
o Bi-d Adjustment result
1. To print out the A4 check pattern, click the “Print A4 Pattern” tab.
2. Click the “A4 pattern will print” radio button, and then click OK.

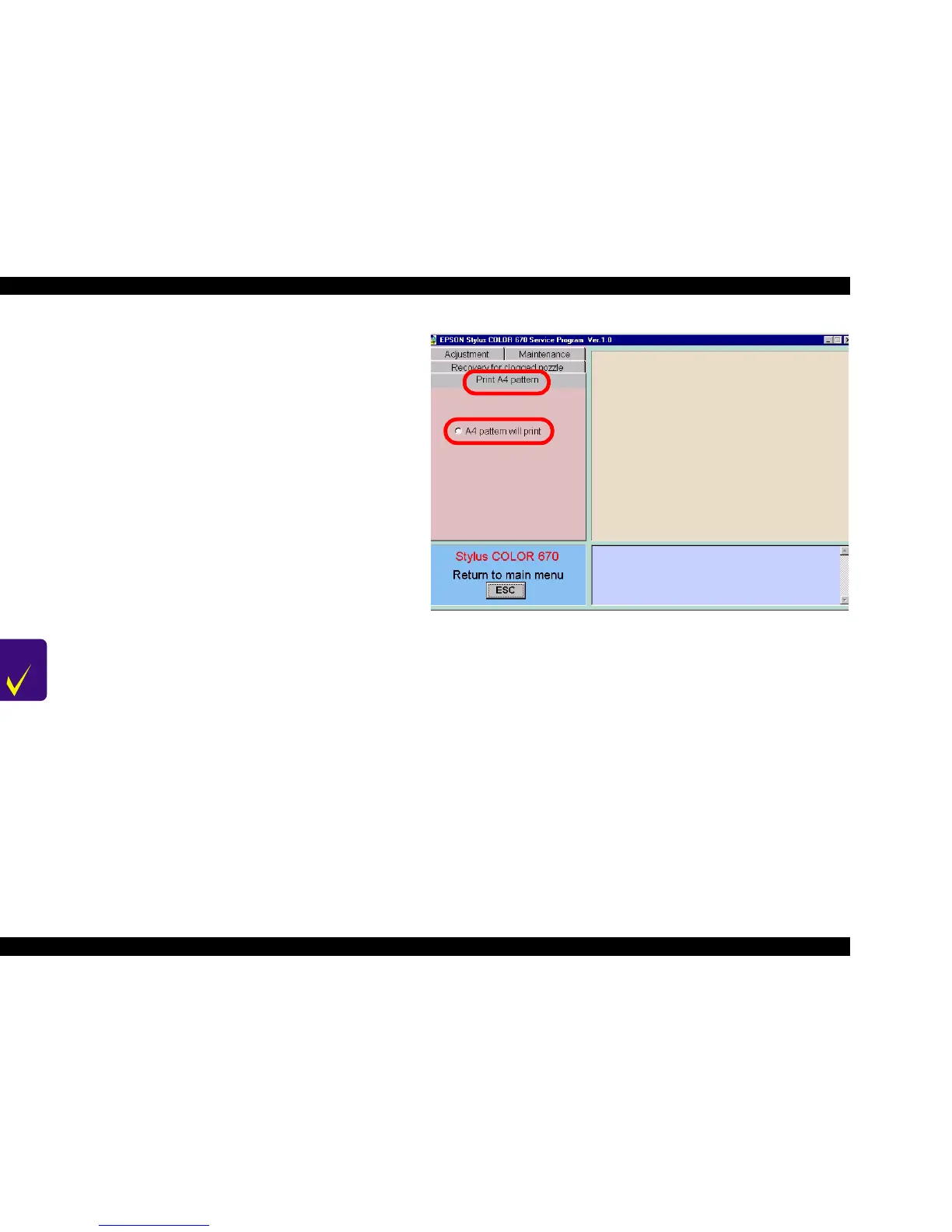

Figure 5-28. A4 Check Pattern Menu
3. Click OK in the screen that appears.
CHECK
POINT
When performing this function, use plain paper. If you use any
special paper, white line will be generated on 360dpi print
pattern.
