Epson Stylus Color 670 Service Manual

EPSON Stylus COLOR 670 Revision A
Disassembly and Assembly Disassembly 76
4.2.4 Ink Absorber Tray Assembly (Waste Ink Pad)
Removal
1. Remove the Housing.(See “Housing Removal” on page 72)
2. Remove the Control Panel. (See “Control Panel Removal” on page 75)
3. Remove one screw securing the Ink Absorber Tray Assembly to the right
side of the Printer Mechanism.
Remove the Spacer Tray securing the Ink Absorber Tray Assembly at the left
side of the Printer Mechanism and remove the Ink Absorber Tray Assembly
by pulling it downward.

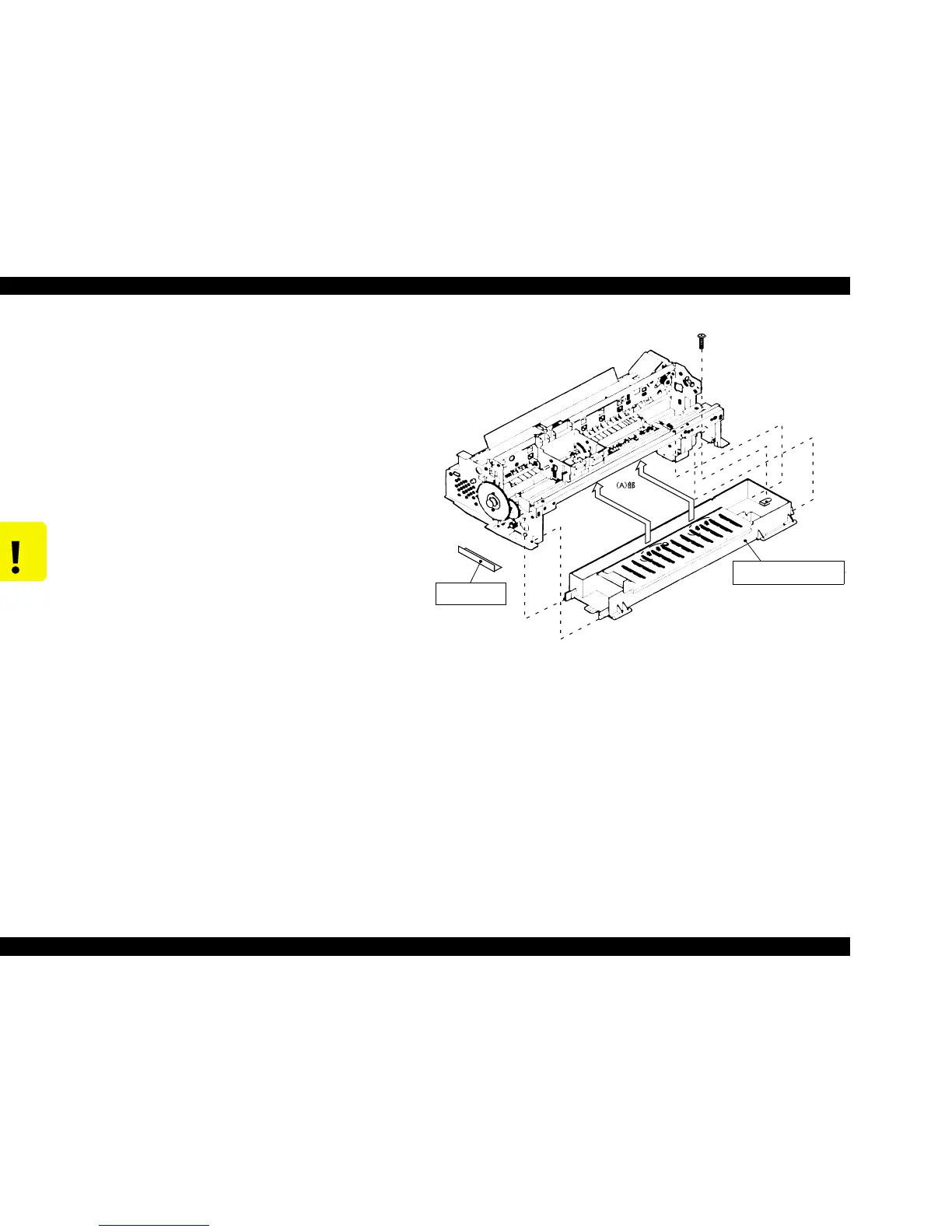

Figure 4-6. Ink Absorber Tray Assembly Removal
CAUTION
Be sure to reset the Waste Ink Counter, when replacing the
Ink Absorber Tray Assembly or Ink Absorber (Ink Pad) inside.
The Waste Ink Counter is reset by the special setting mode of
the panel operation or by the adjustment program.
(See “Special Setting Mode” on page 26, “Protection
Counter Indication / Reset” on page 119.)
Waste Ink Pad Assembly
Securing Screw
Waste Ink Pad Assembly
Spacer Tray
