Epson Stylus Color 670 Service Manual

EPSON Stylus COLOR 670 Revision A
Disassembly and Assembly Disassembly 77
4.2.5 Printer Mechanism Disassembly
4.2.5.1 Printhead Removal
1. Remove the Housing.(See “Housing Removal” on page 72)
2. Rotate Combination Gear, 6, 34.4 toward the front side of the printer and
release the CR Lock Lever from the CR Assembly. Then, move the CR
Assembly to the left side.
3. Remove Black and Color Ink Cartridges.
4. Remove Black I/C Cover and Color I/C Cover from the CR Assembly.
5. Remove the Torsion Spring, 49 from the CR Assembly and remove 1
screw securing Head Fastener from the right side of the CR Assembly.
6. Remove two hooks securing the Head FFC Holder at the back side o f the
CR unit and remove the Head FFC holder.
7. Lift the Printhead upward and remove it from CR Assembly. Carefully
remove 2 Head FFCs from the connector on the Printhead Board.

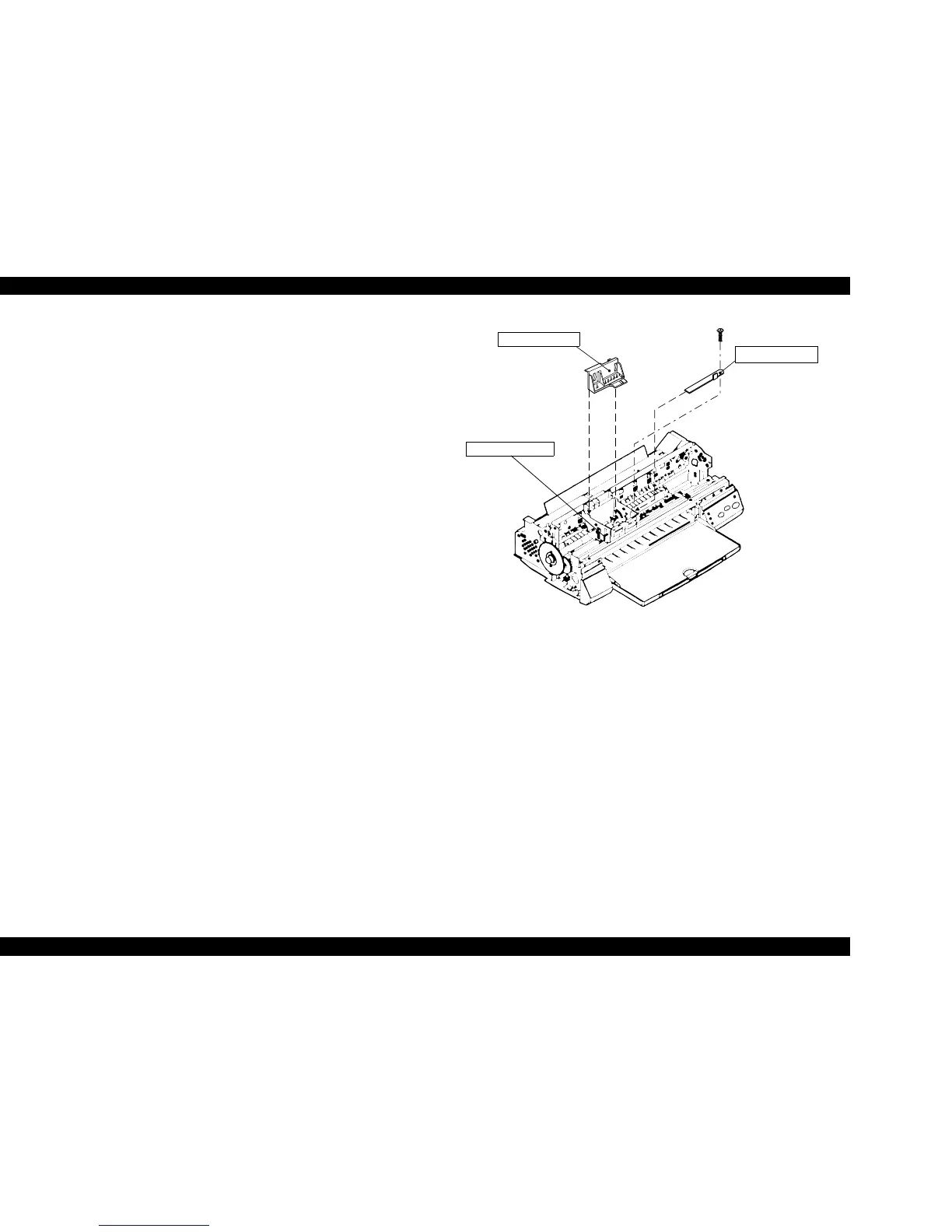

Figure 4-7. Printhead Removal
Head Fastener
Printhead
Torsion Spring 49
