Epson Stylus Color 670 Service Manual

EPSON Stylus Color 670 Revision A
Product Description Operator Controls 26
1.4.10 Printable Area
1.4.10.1 Cut Sheet

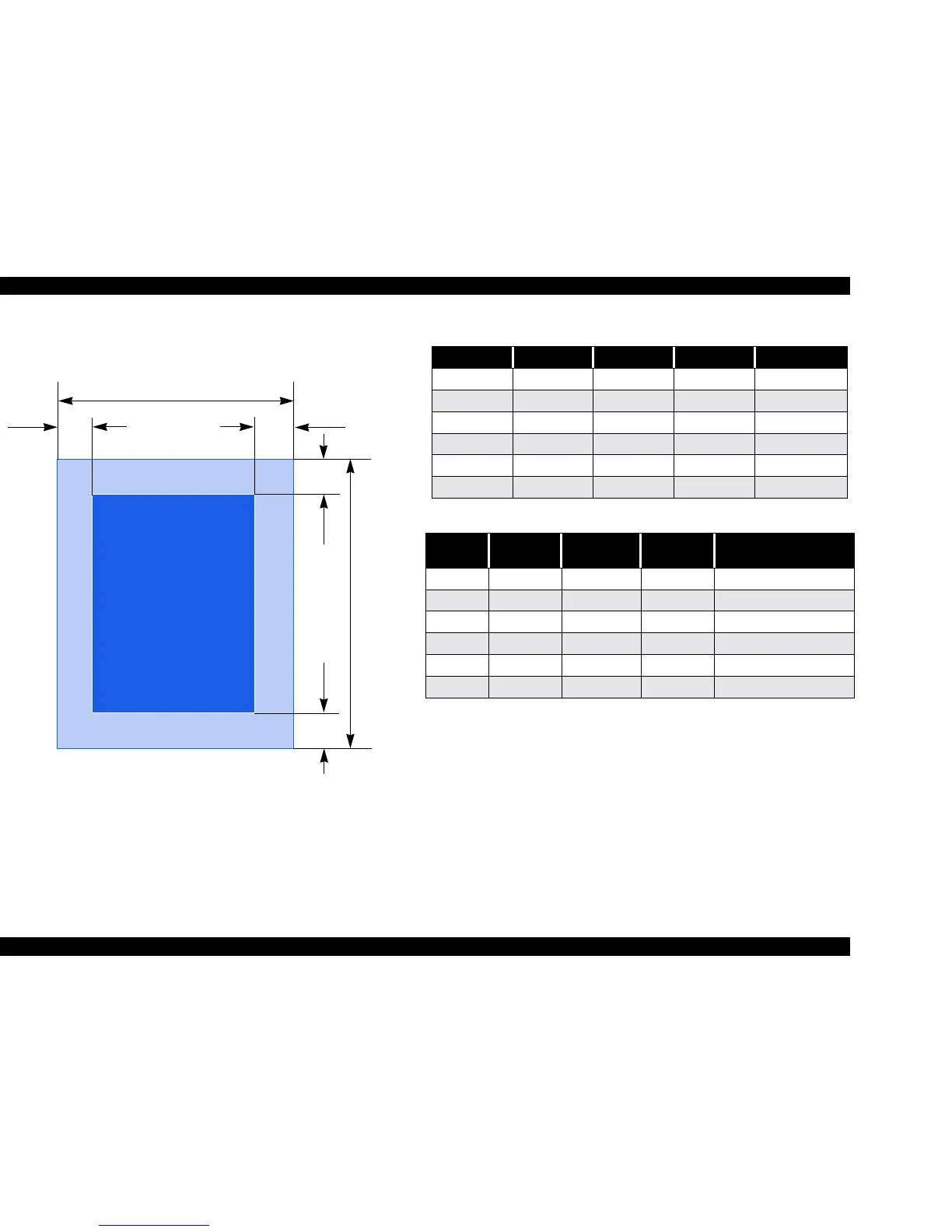

Figure 1-5. Printable Area for Cut Sheet
NOTE: * Bottom margin is expanded to 3mm when paper dimension
is defined by using command, otherwise it is not expanded
(14mm).
**From a form lower end 3mm as for 14mm area, a printing
may scramble.
LM RM
PW
TM
BM
PL
Printable AreaPrintable Area
Table 1-13. Margins in Character Mode
Paper Size Left Margin Right Margin Top Margin Bottom Margin
A4 3mm (0.12”) 3mm (0.12”) 3mm (0.12”) 14mm (0.54”)
Letter 3mm (0.12”) 9mm (0.35”) 3mm (0.12”) 14mm (0.54”)
B5 3mm (0.12”) 3mm (0.12”) 3mm (0.12”) 14mm (0.54”)
Legal 3mm (0.12”) 9mm (0.35”) 3mm (0.12”) 14mm (0.54”)
Statement 3mm (0.12”) 3mm (0.12”) 3mm (0.12”) 14mm (0.54”)
Executive 3mm (0.12”) 3mm (0.12”) 3mm (0.12”) 14mm (0.54”)
Table 1-14. Margins in Raster Graphics Mode
Paper
Size
Left Margin Right Margin Top Margin Bottom Margin
A4 3mm (0.12”) 3mm (0.12”)3mm (0.12”) 14 or 3mm (0.54 or 0.12”)
Letter 3mm (0.12”) 3mm (0.12”) 3mm (0.12”) 14 or 3mm (0.54 or 0.12”)
B5 3mm (0.12”) 3mm (0.12”)3mm (0.12”) 14 or 3mm (0.54 or 0.12”)
Legal 3mm (0.12”) 3mm (0.12”) 3mm (0.12”) 14 or 3mm (0.54 or 0.12”)
Statement 3mm (0.12”) 3mm (0.12”)3mm (0.12”) 14 or 3mm (0.54 or 0.12”)
Executive 3mm (0.12”) 3mm (0.12”) 3mm (0.12”) 14 or 3mm (0.54 or 0.12”)
