EPSON Stylus COLOR 670 Revision A
Disassembly and Assembly Disassembly 87
4.2.5.6 ASF LD Roller Assembly Removal
1. Remove the ASF Assembly. (See “ASF Assembly Removal” on page 85)
2. Remove the ASF LD Roller Shaft Fixing Bushing and remove the Right
Hopper Release Lever.

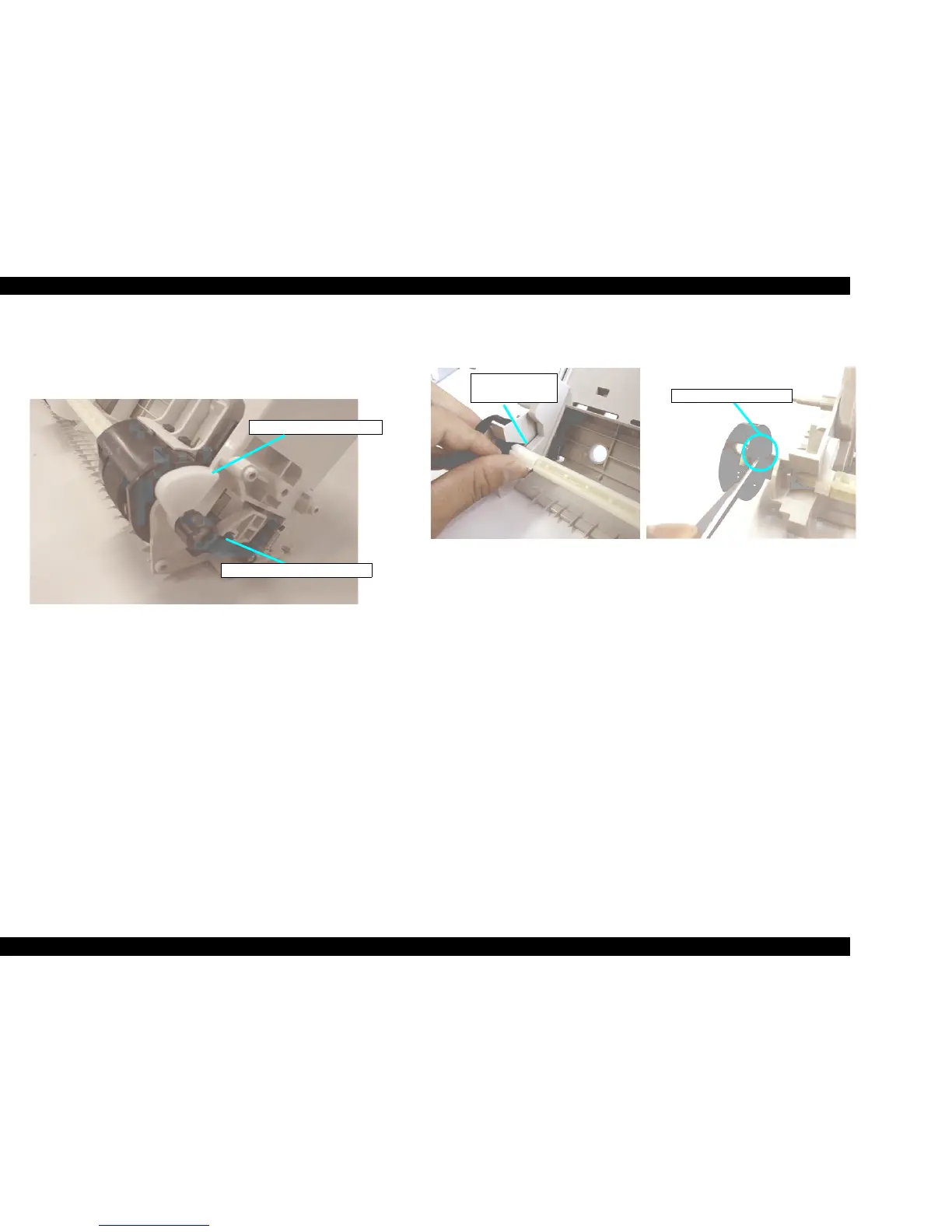

Figure 4-26. LD Roller Shaft Fixing Bushing Removal
3. Shift the Left ASF LD Assembly on the left to the center and remove the
Left ASF LD Roller Shaft Fixing Bushing (white). (Refer to Figure 4-27.)
4. Push the LD Roller Shaft to the left and remove the ASF HP Detection
Wheel from the end of the shaft. (Refer to Figure 4-27.)
Figure 4-27. ASF LD Roller Fixing Bushing
and ASF HP Detection Wheel
Right Hopper Release Lever
LD Roller Shaft Fixing Bushing
ASF HP Detection Wheel
Left ASF LD Roller
Fixing Bushing
