EPSON Stylus COLOR 670 Revision A
Disassembly and Assembly Disassembly 92
4.2.5.7 LD Roller Assembly Disassembly
1. Remove the ASF Assembly. (See “ASF Assembly Removal” on page 85)
2. Remove the LD Roller Assembly. (See “ASF LD Roller Assembly
Removal” on page 87)
3. Release 2 hooks securing the LD Roller Cover to the LD Roller Assembly.
4. Remove 2 hooks securing the LD Roller Assembly to the frame around the
shaft hole of the LD Roller Assembly.
5. Remove the LD Roller Assembly.

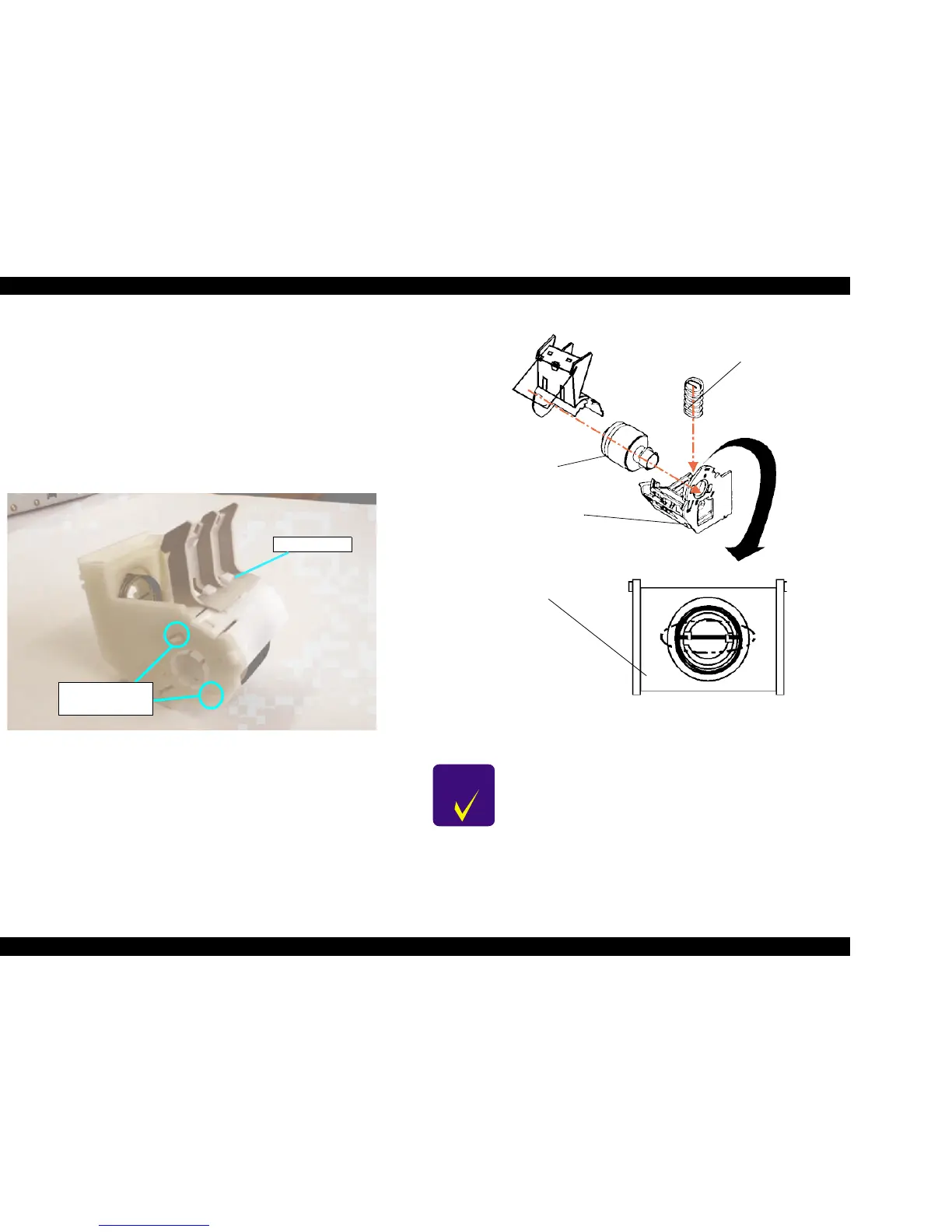

Figure 4-36. LD Roller Assembly Removal Hook Position
Figure 4-37. Disassembly of LD Roller Assembly
LD Roller Cover
LD Roller Assembly
Fixing Hooks
CHECK
POINT
n Before installing the ASF Hopper Assembly to the LD
Roller Assembly, set the Compression Spring 1.961 to
the spring installation hook of the LD Assembly and
hang the bent part of the spring on the hook. After
assembling the unit, do not forget to unhook the springs
by rotating the spring from the holes located at the back
of the ASF Assembly.
n Do not touch the surface of the roller of the LD Roller
Assembly.
Compression Spring 1.961
LD Roller Cover
(Right and Left)
+
Paper Feed Holder
Sheet
LD Roller Assembly
(Right and Left)
Paper Feed Assembly
(Right and Left)
During assembly, set the
Compression Spring 1.961 to the
spring installation hook of the LD
Assembly and hang the bent part
of the spring on the hook.
