EPSON Stylus COLOR 670 Revision A
Disassembly and Assembly Disassembly 83
4.2.5.4 PF Motor Assembly Removal
1. Remove the Housing. (See “Housing Removal” on page 72)
2. Remove the Ink Absorber Tray Assembly. (See “Ink Absorber Tray
Assembly (Waste Ink Pad) Removal” on page 76)
3. Remove the Plastic C Ring with tweezers and remove the Combination
Gear 6, 34.4.

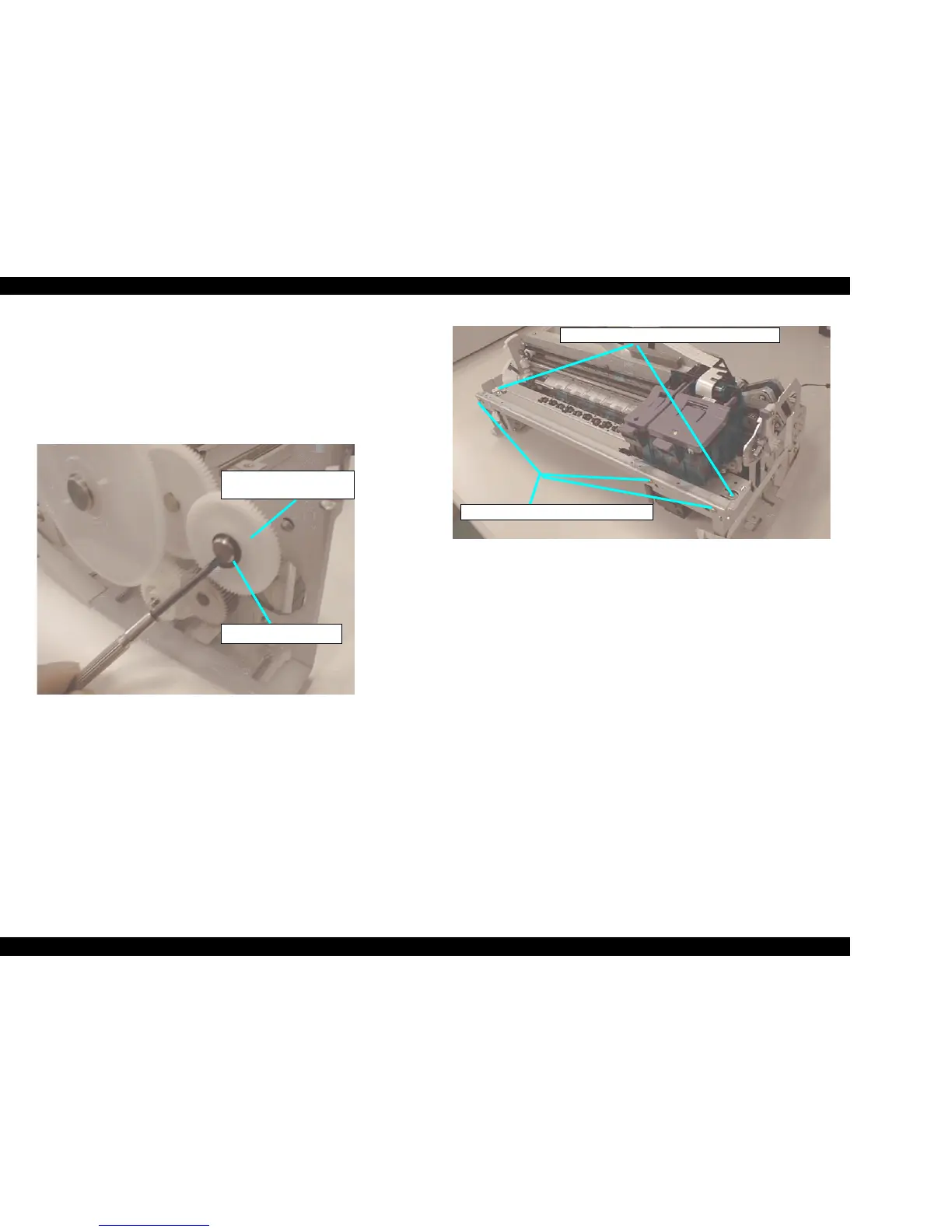

Figure 4-16. Combination Gear 6, 34.4 Removal
4. Remove 3 screws and remove the Front Frame from the Printer
Mechanism. (Refer to Figure 4-17.)
5. Remove 2 screws and remove the Paper Eject Frame from the Printer
Mechanism. (Refer to Figure 4-17.) When removing the Paper Eject Frame
from the Printer Mechanism, shift the CR Unit manually to the left side of
the CR Shaft and remove it from the right side of the Paper Eject Frame
towards the front side of the printer. Then move the CR Unit to the center
of the CR Shaft and remove the left side of the Paper Eject Frame towards
the front side of the printer. (Refer to Figure 4-17.)
Figure 4-17. Front Frame and Paper Eject Frame Removal
6. Release 2 hooks attaching the Front Paper Guide to the Paper Eject Roller
and remove the Front Paper Guide to the front side of the printer. (Refer
to Figure 4-18.)
7. Release the hook of the Bushing 6 securing the Paper Eject Roller to the
Printer Mechanism, rotate the Bushing 6 to the top and remove the Paper
Eject Roller. (Refer to Figure 4-18.)
Combination Gear 6, 34.4
C Ring 6.1 x 0.5 x 9.0
Paper Eject Frame Securing Screws (2 screws)
Front Frame Securing Screws (3 Screws)
To Next Page
