Epson Stylus Color 670 Service Manual

EPSON Stylus COLOR 670 Revision A
Disassembly and Assembly Disassembly 97
7. Release hooks securing the Left Bushing 12 to the Left Frame and rotate
the Left Bushing 12 to the front side of the printer. Align the protrusion of
the Left Bushing 12 and the cutoffs of the frame. Shift the bushing with PF
roller to the left and remove the PF roller.

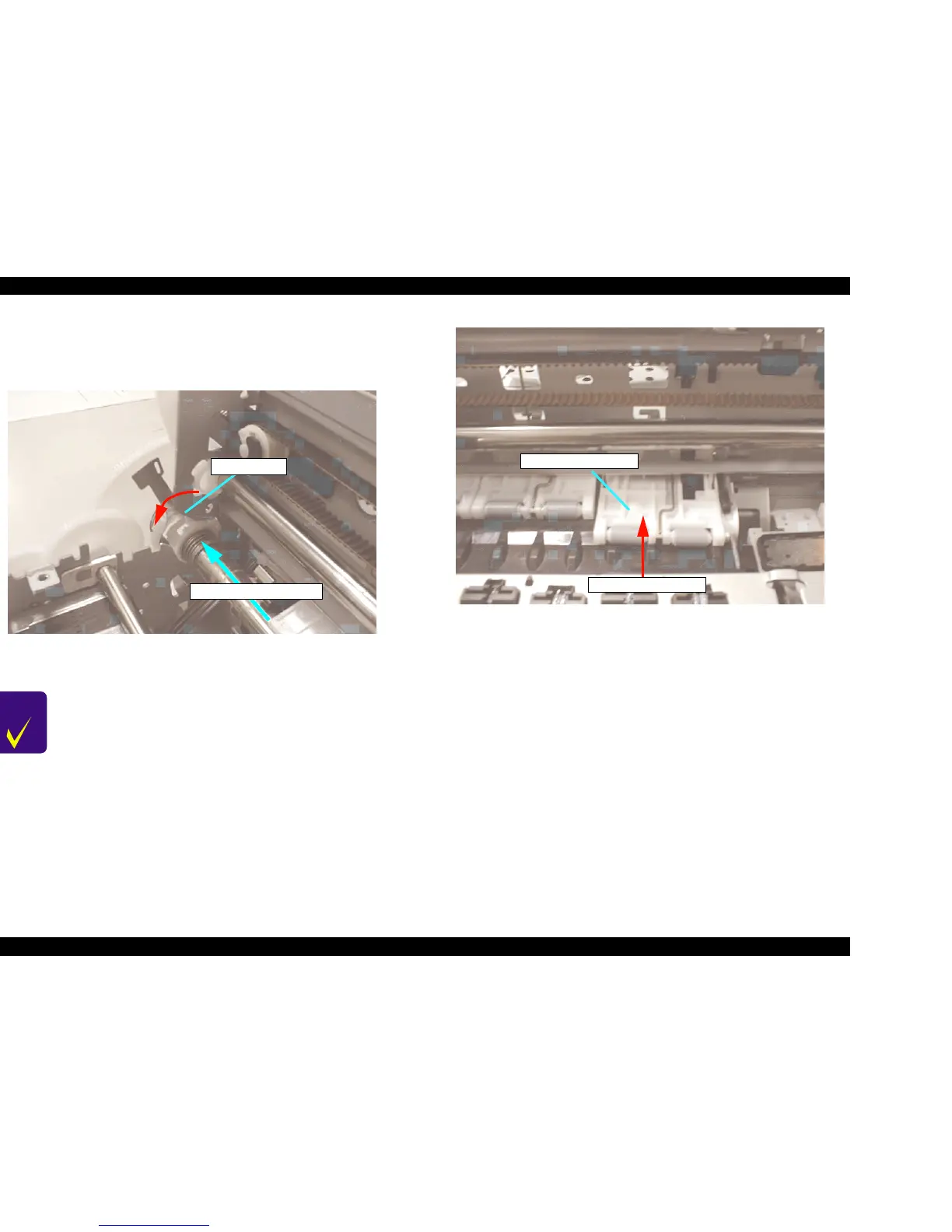

Figure 4-48. Left Bushing 12 and PF Roller Removal
Figure 4-49. Right Upper Paper Guide Installation
CHECK
POINT
n When reinstalling the Right Upper Paper Guide, let the
head of the PE Sensor Lever go through the cutoff of the
Right Upper Paper Guide from the front side of the
printer.
n Be careful not to damage the hook, when removing or
installing the Front Paper Guide.
n Be careful not to damage the gray coated part of PF
Roller Assembly during disassembly and assembly.
n Be careful not to damage any gears. Especially be careful
at handling the Spur Gear 67.2
n installed at the left side of the PF Roller Assembly
because it is a precision gear.
Left Bushing 12
Shift this toward the left.
Front Side of the Printer
Right Upper Paper Guide
