Appendix B: Time and Distance of Free Running in Emergency
160 T-B series Rev.1

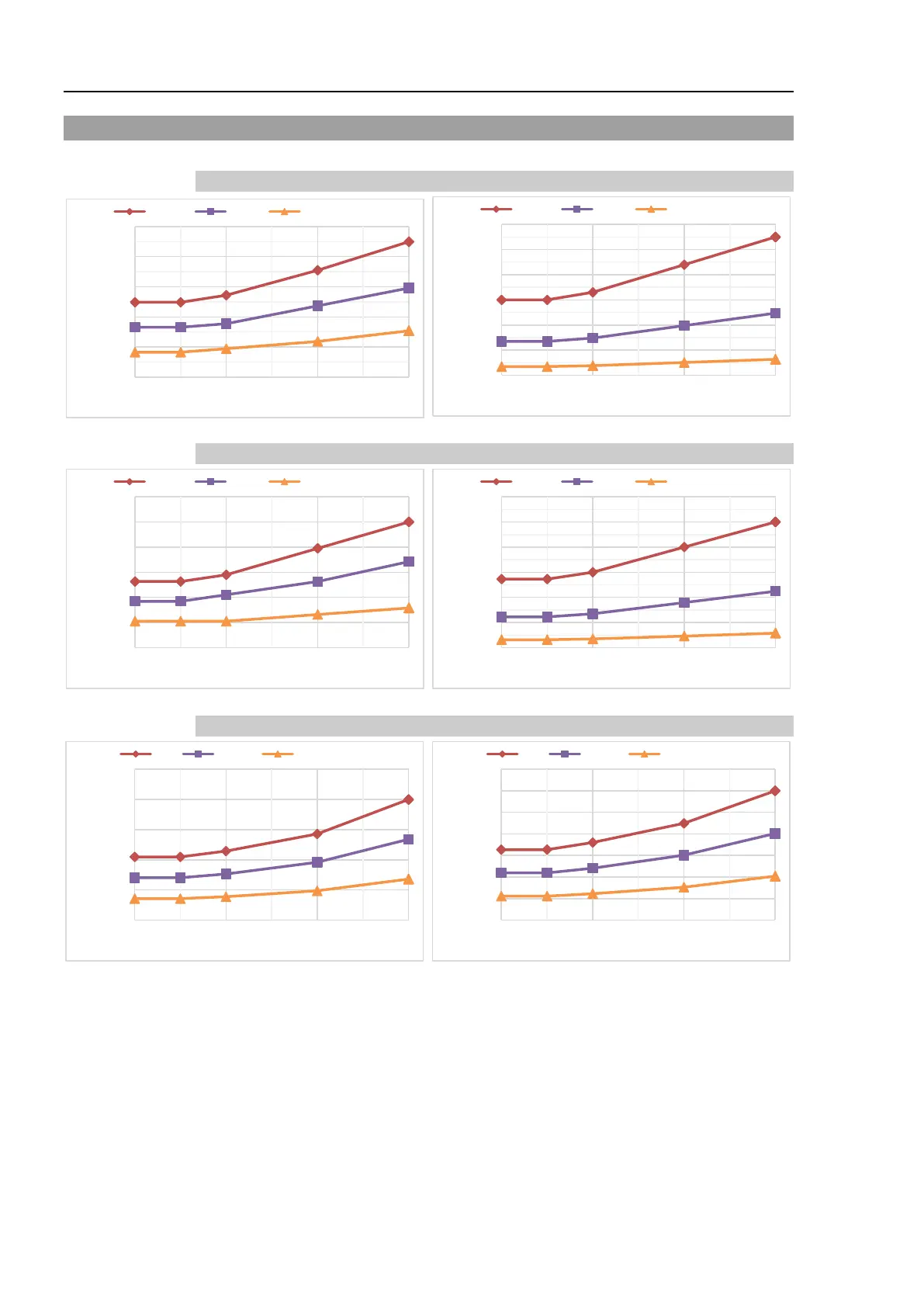

T3-B Time and Distance of Free Running in Emergency
T3-B401S: J1
T3-B401S: J2
T3-B401S: J3
0.00
0.10
0.20
0.30
0.40
0.50
0 1 2 3
Time [sec]
Weight [kg]
100% 66% 33% Speed [%]
J1
0.0
10.0
20.0
30.0
40.0
50.0
60.0
0 1 2 3
Distance [degrees]
Weight [kg]
100% 66% 33% Speed [%]
J1
0.00
0.05
0.10
0.15
0.20
0.25
0.30
0 1 2 3
Time [sec]
Weight [kg]
100% 66% 33% Speed [%]
J2
0.0
10.0
20.0
30.0
40.0
50.0
60.0
0 1 2 3
Distance [degrees]
Weight [kg]
100% 66% 33% Speed [%]
J2
0.00
0.05
0.10
0.15
0.20
0.25
0 1 2 3
Time [sec]
Weight [kg]
1 0.66 33% Speed [%]
J3
0.0
5.0
10.0
15.0
20.0
25.0
30.0
35.0
0 1 2 3
Distance [mm]
Weight [kg]
1 0.66 33% Speed [%]
J3
