Epson T-B Series User Manual

T3-B T6-B Manipulator 3. Environments and Installation
T-B series Rev.1 57
3.7 Connecting the Cables
WARNING
■
To shut off power to the robot system, disconnect the power plug from the power
source. Be sure to connect the AC power cable to a power receptacle.
DO NOT connect it directly to a factory power source.
■
Be sure to connect the cables
properly. Use a tough cable cover to protect the
cables.
Do not allow unnecessary strain on the cables. (Do not put heavy objects
on the cables. Do not bend or
pull the cables forcibly.) The unnecessary strain on
the cables may
result in damage to the cables, disconnection, and/or contact
failure.
Damaged cables, disconnection, or contact failure is extremely hazardous and
may result in electric shock and/or improper function of the robot system.
■
Grounding the manipulator is done by connecting with
Power cable. Ensure that
the
Power cable and ground wire are correctly connected. If the ground wire is
improperly connected to ground, it may result in the fire or electric shock.
CAUTION
■
Make sure that the serial numbers on each equipment match. Improper
connection may not only cause improper function of the robot system but also
serious safety problems.
■
Before connecting the connector, make sure that the pins are not bent.
Connecting with the pins bent may damage the connector and result in
malfunction of the robot system.

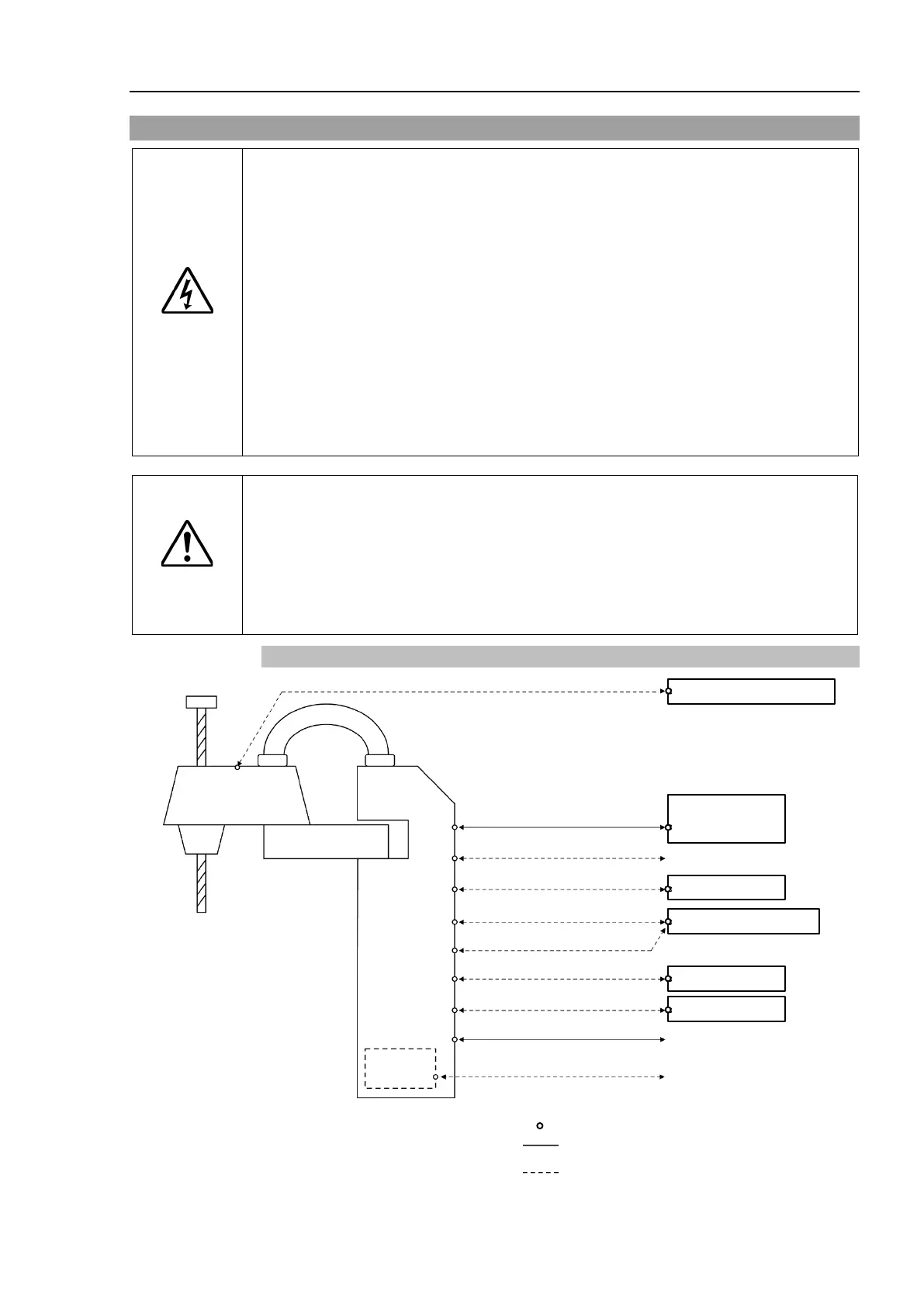

3.7.1 Connection Example
Input/ Output device
Accessible connector
Included cable when shipping
Not supplied cable (Prepare by yourself)
100-240VAC
Fieldbus I/O
Output device
PC for development
(1) Hand I/O connector
USB memory
Emergency stop, safety door
Manipulator
Teach
Pendant
Input device
Option
(2) TP connector
(3) EMERGENCY connector
(4) Memory port
(5) PC port for development
(6)
LAN (Ethernet)
(7)
I/O (Input) connector
(8) I/O
(Output) connector
(9) AC power connector
