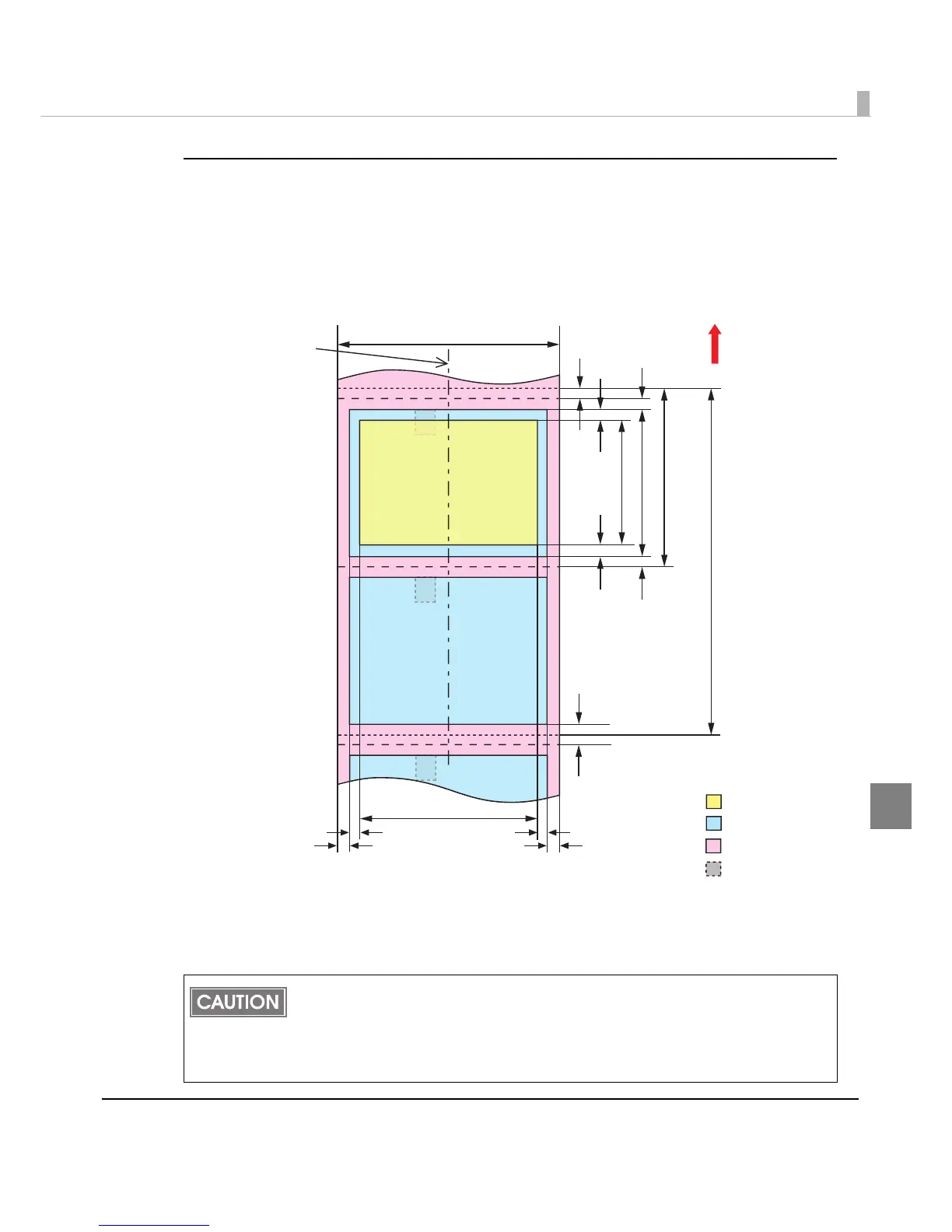

Die-cut label (Blackmark) / Fanfold paper
When "Borderless Printing" is disabled
Top, bottom, left, right margins: 1.5 mm (Typical value)
Make sure to adjust perforated lines to an integral multiple of issuing pitch.
The perforated line and print area overlap each other to destabilize printing or perforated
line and the auto-cut position are misaligned to shorten the life of the autocutter if paper
without black marks is used. Use paper with black marks on the back of the paper to
adjust the paper position.
Paper width
1.5 mm
12.0 mm or more*1
18.0 mm or more*3
Issuing pitch (Ph)
1.5 mm
Auto-cut position
Auto-cut position
Paper feeding
direction
Print area
Label area
1.5 to 3.0 mm
0.5 to 1.0 mm
1.5 to 3.0 mm
Interval of perforated lines (Pm)
Perforated line
Center of paper width
1.5 to 3.0 mm
Backing paper
Print area width
1.5 mm
Edge cutoff 2.0 mm
1.5 mm
Edge cutoff 2.0 mm
Auto-cut position
Perforated line
15.0 mm or more*2
Black mark
position
*1 When auto cut is not performed: 5.0 mm or more
*2 When auto cut is not performed: 8.0 mm or more
*3 When auto cut is not performed:11.0 mm or more
