WET SYSTEM OPERATION
4-19

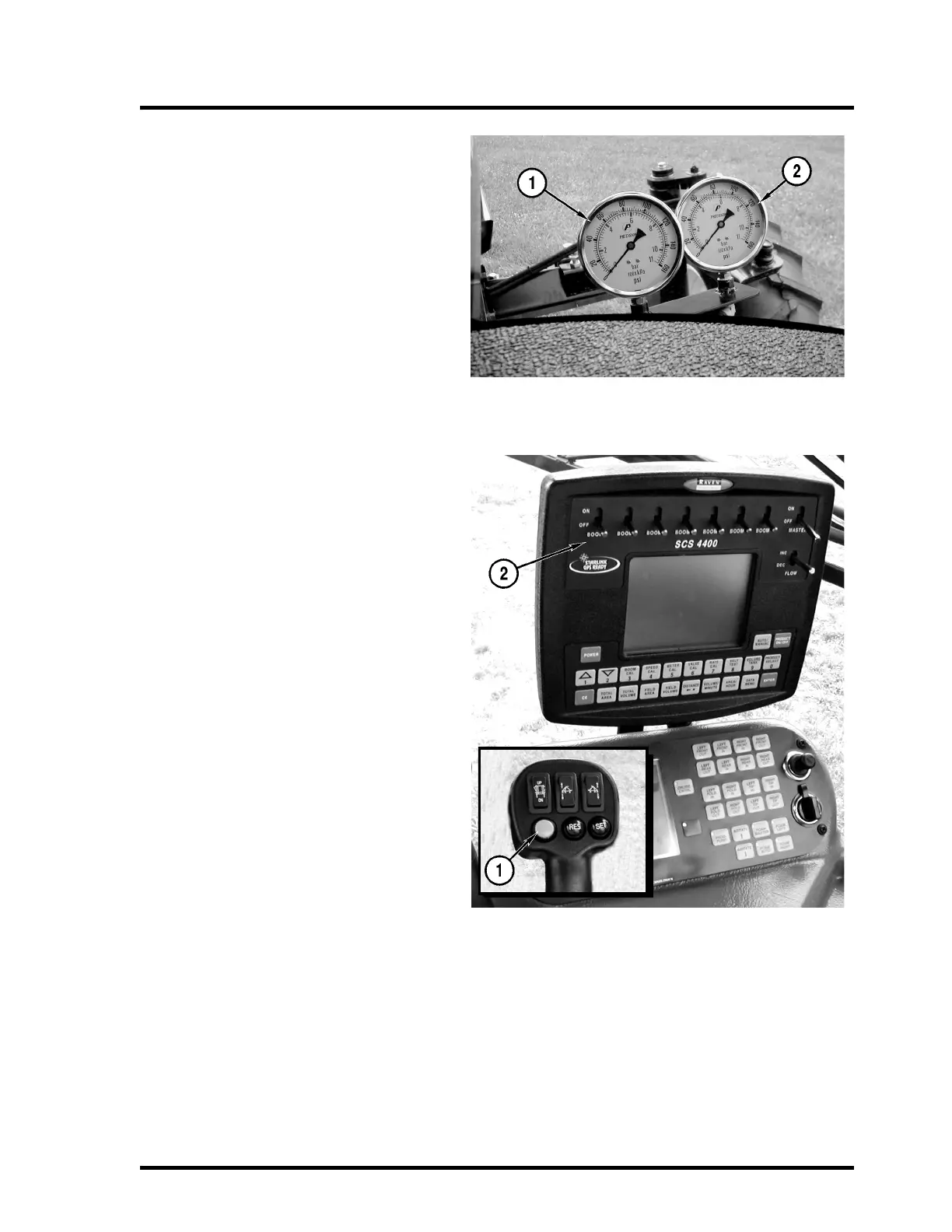

The agitation (1) and boom (2) pressure
gauges are mounted outside at the lower
right of the cab.
The agitation gauge reads pressure at the
agitation valve.
The boom pressure gauge reads pressure
from the five bank boom valves.
NOTE: When the agitation valve is fully open,
the agitation pressure gauge and the boom
pressure gauge should show approximately
the same pressure.
IMPORTANT: Selecting the correct spray
tip is critical to obtain proper application.
See the spray tip manufacturer’s instruc-
tions for proper selection.
Select an appropriate gear for the desired
vehicle speed during spraying. See “Shifting
Gears” on page 3-13. Under typical operating
conditions, second or third gear is recom-
mended.
Use the master product on/off switch (1) on
the T-handle to start and stop spraying.
Use the Raven Sprayer Control boom
switches (2) to start and stop product flow to
individual boom sections. The Raven Sprayer
Control will automatically adjust the product
flow for the remaining sections.
