10 • Maintenance and servicing
Art.-Nr.: 80116-271
04.06
Test procedure
1. Set test specimen to:
BIPOLAR FORCED COAG, Effect 2, 90 watts
2. Set HF power meter to:
RL = 200 ohms
3. Activate test specimen via COAG pedal on the footswitch.
4. Determine and document measured value. The tolerance range
is 72 to 108
watts.
SOFT COAG
FORCED COAG
SPRAY COAG

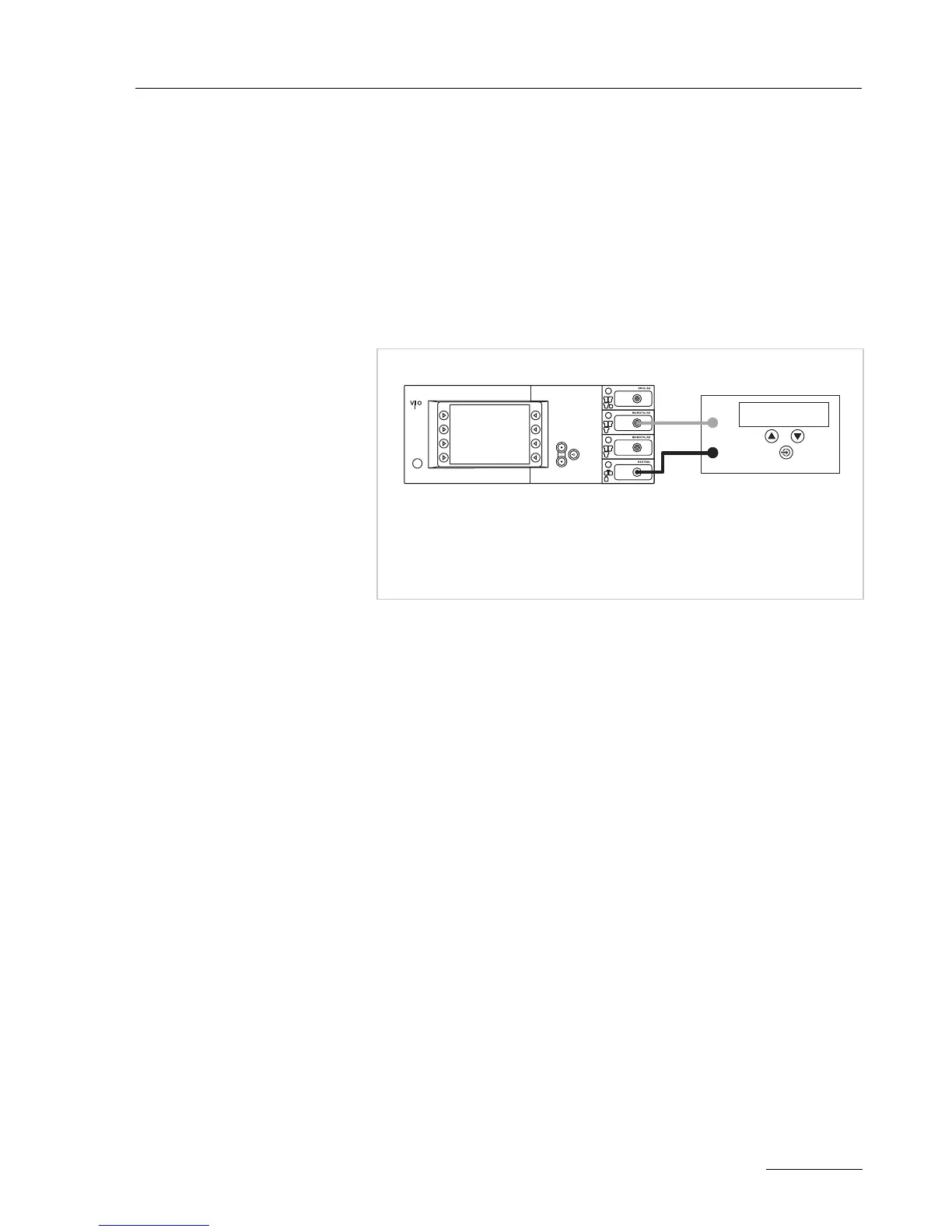

Test set-up
Fig. 10-12
• The test specimen is connected to the power supply via the power
cord.
• The levels of power are determined with the HF power meter. The
measuring cables are plugged into the HF power meter direct.
Test procedure
1. Set test specimen to:
SOFT COAG, Effect 8, 200 watts
2. Set HF power meter to:
RL = 50 ohms
3. Activate test specimen via COAG button on the electrode handle.
4. Determine and document measured value. The tolerance range
is 160 to 240
watts.
1. Set test specimen to:
FORCED COAG, Effect 4, 120 watts
2. Set HF power meter to:
RL = 500 ohms
3. Activate test specimen via COAG button on the electrode handle.
4. Determine and document measured value. The tolerance range
is 96 to 144
watts.
ERBE
AE
NE
HF power meter
