Test program "TP valves (APC)"
In this test program the valves in the APC can be controlled.
The current switching position is shown by symbols and can be
changed by pressing a button.
The control level for the proportional valve can be set from 0 to 100%

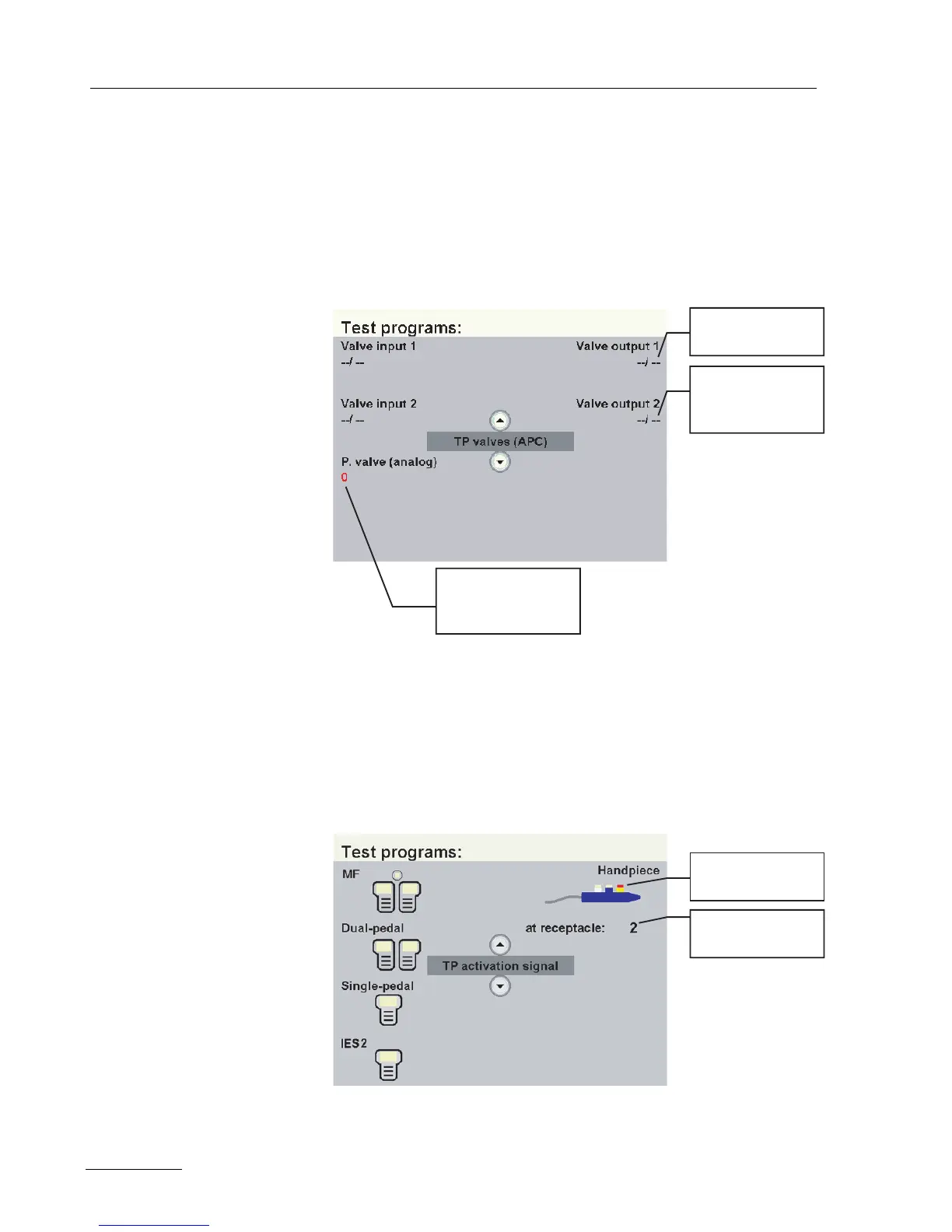

Fig. 7-6
Test program "TP activation signal"
This test program visually displays the activation state of the foot and
finger switches.
Fig. 7-7
Output valve
APC receptacle 1
Output valve
APC receptacle 2
(option)
Proportional valve
control voltage
0...100 = 0...20 V
Yellow button
pressed
At receptacle 2
