6 • SET-UP
Art.-Nr.: 80116-271
04.06
CHAPTER 6
SET-UP
General information
This unit has two SET-UP levels. The first level is accessible to users
and service staff. The second level is only for use by the service staff.

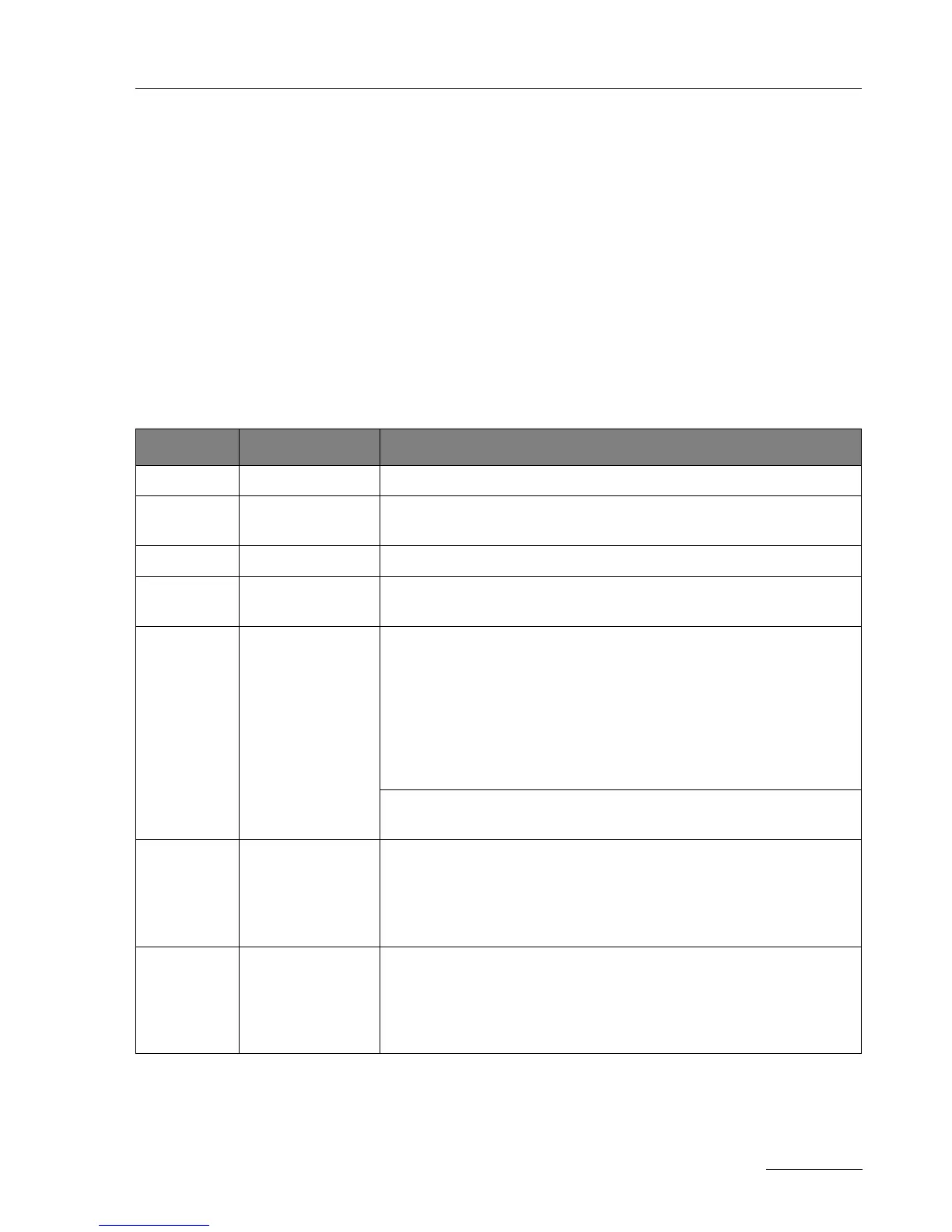

Overview of settings for SET-UP level 1
Setting Available from Description
Brightness V 1.2.x Setting the display brightness in 16 levels.
System vol-
ume
V 1.2.x Setting the volume of activation tones in 16 levels. The activation
tones must be clearly audible!
Key volume V 1.2.x Setting the button volume in 16 levels.
Viewing
angle
V 1.2.x Rough graduation of display brightness in 3 levels.
Power
display
V 1.2.x A bar diagram is shown on the display on activation of the output
indicator.
The bar diagram provides a dynamic display of the delivered out-
put during activation. At the end of activation, Pmax shows the
maximum delivered output, and Pavg the mean value of the deliv
-
ered output over the activation period.
The green line in the bar diagram represents the power limitation
selected.
Only V 1.3.x: When the unit is restarted, the power display is
always deactivated (=OFF).
Display
UpMax
V 1.2.x Display of maximum HF voltage [V
p
] on activation of the unit. In
the user manual for the instrument or on the instrument itself the
maximum electrical capacity is given in [V
p
]. If the HF voltage
exceeds the capacity of the instrument, the instrument may be
damaged. Select a reduced effect to avoid this.
AUTO
START
1
V 1.2.x Input of start delay for the AUTO START function.
The start delay value for AUTO START 1 depends on the value
entered for AUTO START 2 but is always below the start delay
value of AUTO START 2.
A start delay between 0.0 and 9.5 s is possible.
