43 / 144
7 • Test programs
Art.-Nr.: 80116-271
04.06

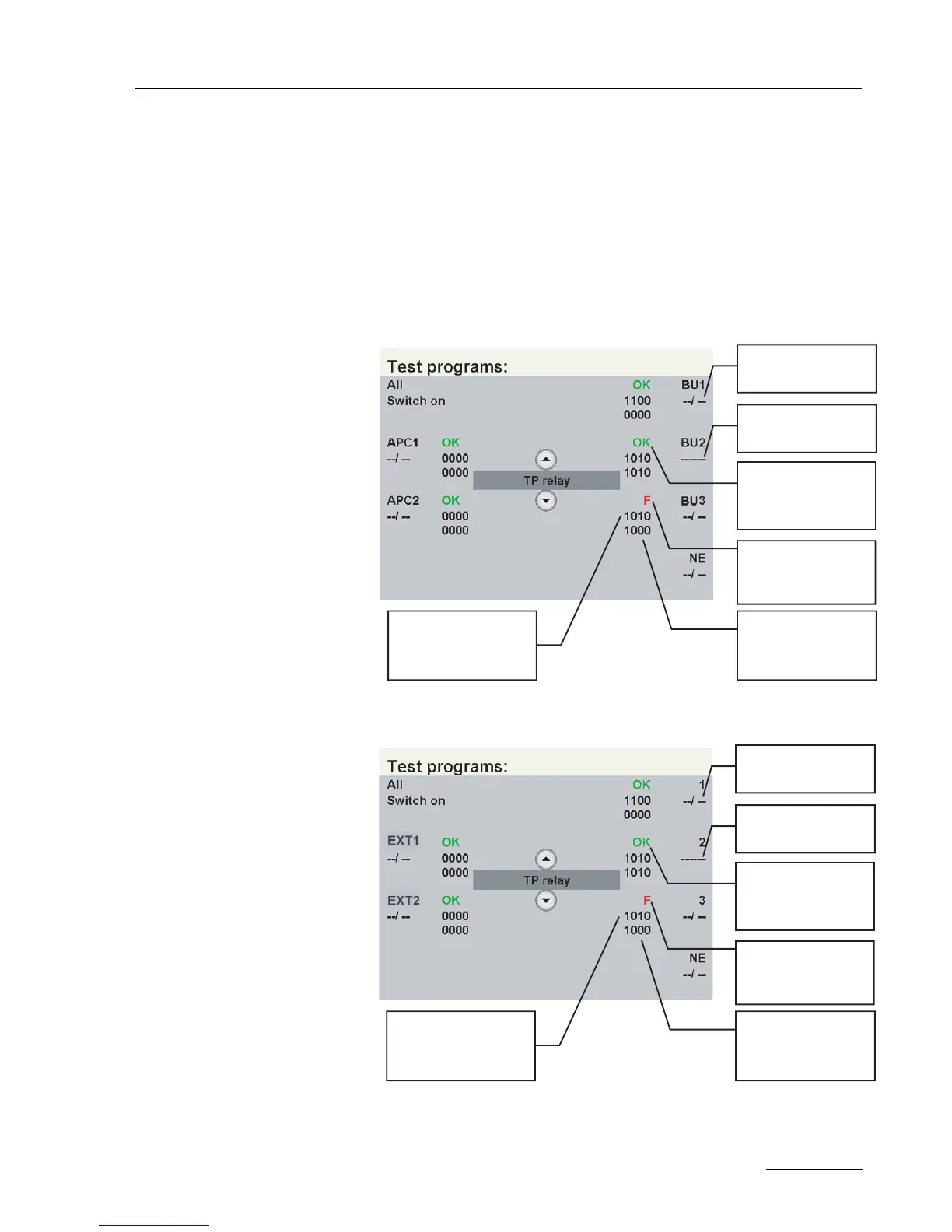

Test program "TP relay"
With this test program all relays in the patient circuit can be controlled.
The current switching position is shown by symbols and can be
changed by pressing a button.
For relays equipped with readback contacts (all except NE) the sig-
naled circuit state is shown.
As IIF modules with different relay configurations are used, the con-
figuration detected is also shown.
Up to version 1.3.x
Fig. 7-4
As from version 1.4.x
Fig. 7-5
