Erbe VIO 200 D - Automatic Start Mode

10 • Maintenance and servicing
104 / 144
Art.-Nr.: 80116-271 04.06
Automatic start mode
Testing and measuring equipment
Test set-up

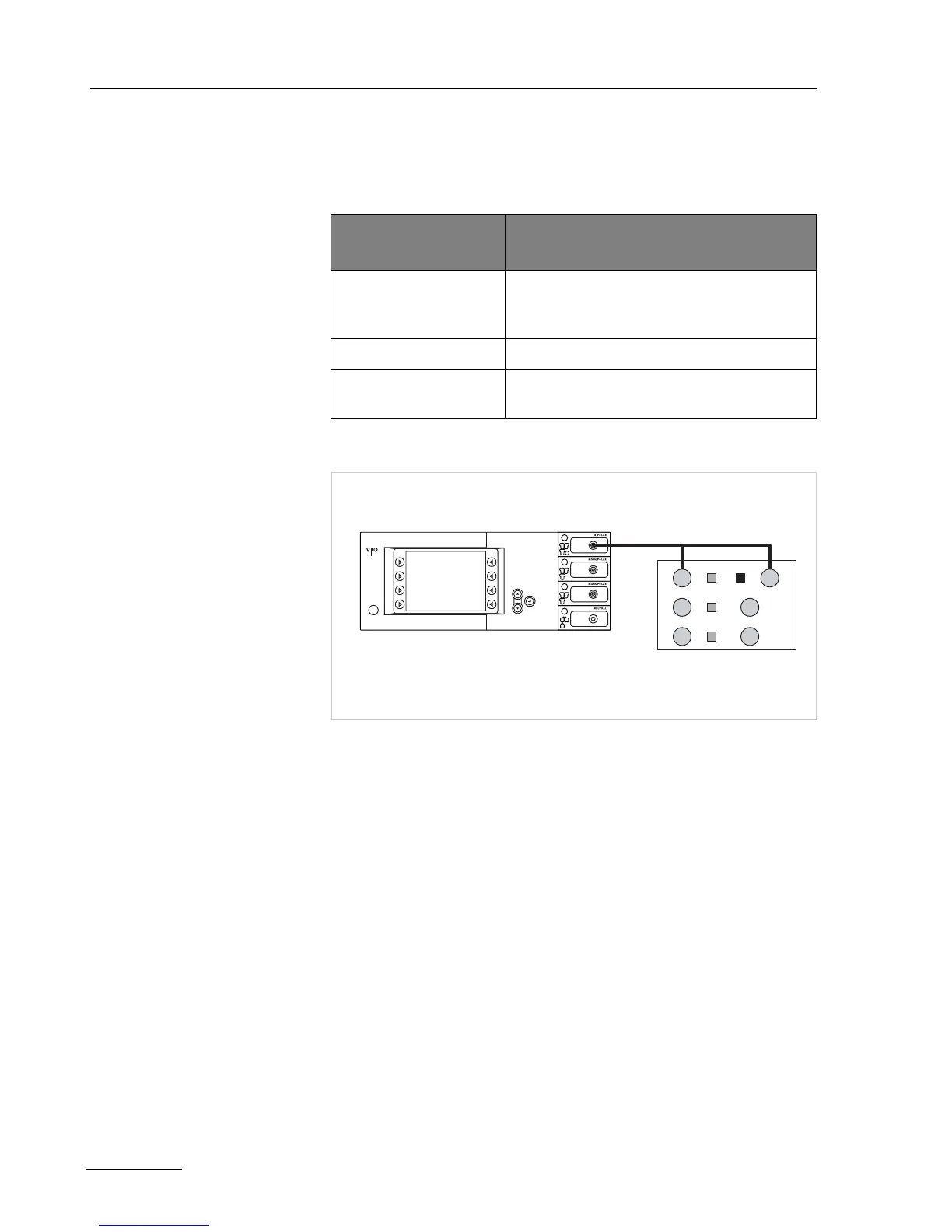

Fig. 10-4
• The test specimen is connected to the power supply via the power
cord.
• The Bipolar receptacle of the test specimen is connected to the
VIO Testbox via the bipolar cable with the adapter cable.
Test procedure
Up to V 1.2.x
1st test step 1. In the SET-UP of the test specimen establish the set start delay
for the setting AUTO START 1. Record the value.
2. Set test specimen to:
BIPOLAR SOFT, Effect 1, 50 watts
AUTO START 1
3. On the VIO Testbox press button T1. The test specimen must
start activation after the set start delay.
4. Press button T2. The test specimen must terminate activation.
ERBE
Art. No.
Description
20196-045
20196-053
Bipolar cable
or
Bipolar cable, international
20100-034 Adapter cable bipolar
20100-102 VIO Testbox Auto Start/Auto Stop
(bipolar start/stop)
ERBE
Testbox 20100-102
2
X X
X X
1
BP1 BP2
T1 T2
