Footswitch activation
Testing and measuring equipment
Test set-up
Fig. 10-2
• The test specimen is connected to the power supply via the power
cord.

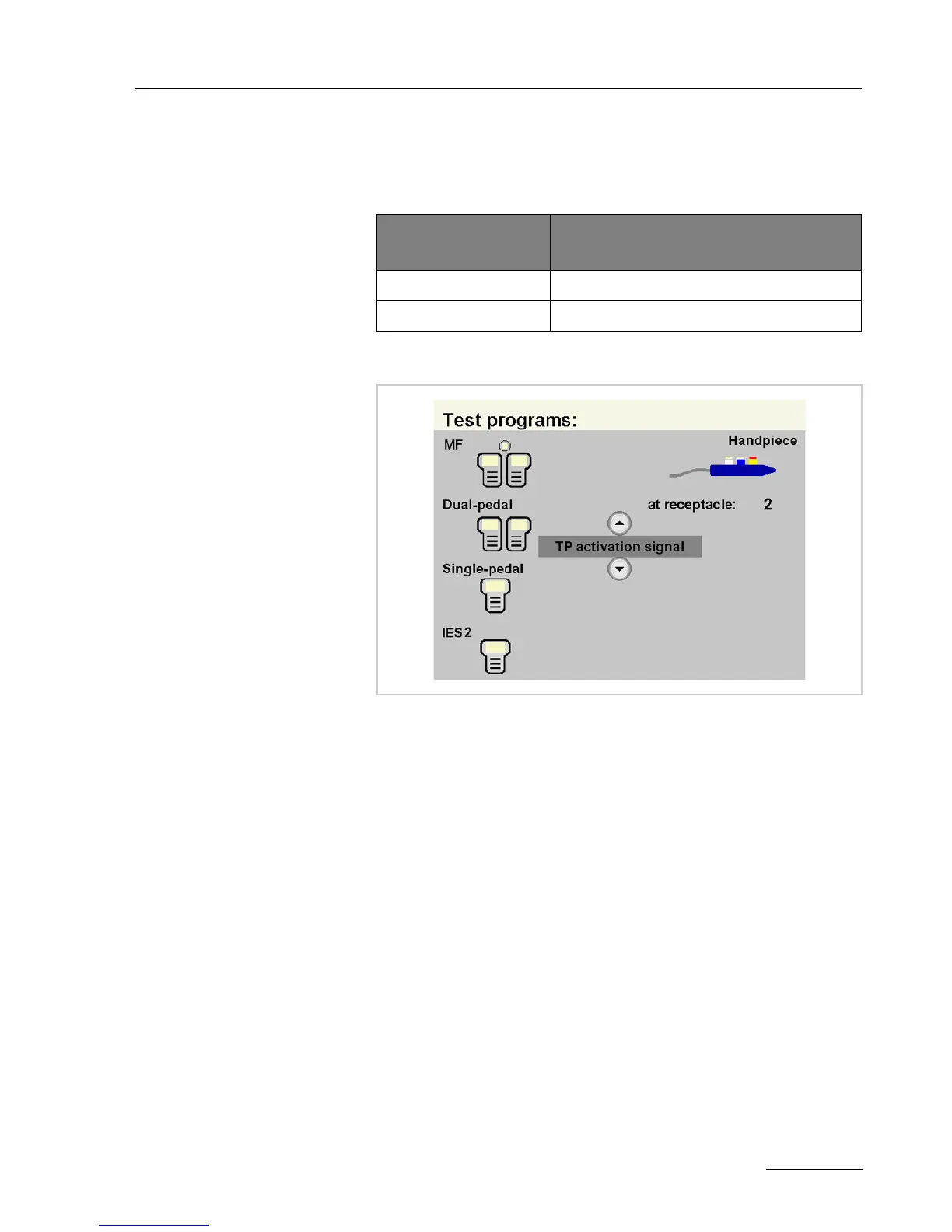

• The test program "TP activation signal" is selected.
• The single-pedal footswitch is connected.
• The dual-pedal footswitch with ReMode is connected.
Test procedure
Single-pedal footswitch
activation COAG
1. Press COAG pedal on the single-pedal footswitch. The test pro-
gram must confirm activation by lighting up the "Single-pedal"
icon in color.
Dual-pedal footswitch
activation CUT / COAG
1. Press CUT pedal on the dual-pedal footswitch. The test program
must confirm activation lighting up the relevant field in color (yel
-
low) in the "MF" icon.
2. Press COAG pedal on the dual-pedal footswitch. The test pro-
gram must confirm activation by lighting up the relevant field in
color (blue) in the "MF" icon.
ERBE
Art. No.
Description
20188-100 Single-pedal footswitch
20189-101 Dual-pedal footswitch with ReMode
