11 • Spare parts
Art.-Nr.: 80116-271
04.06
Wiring

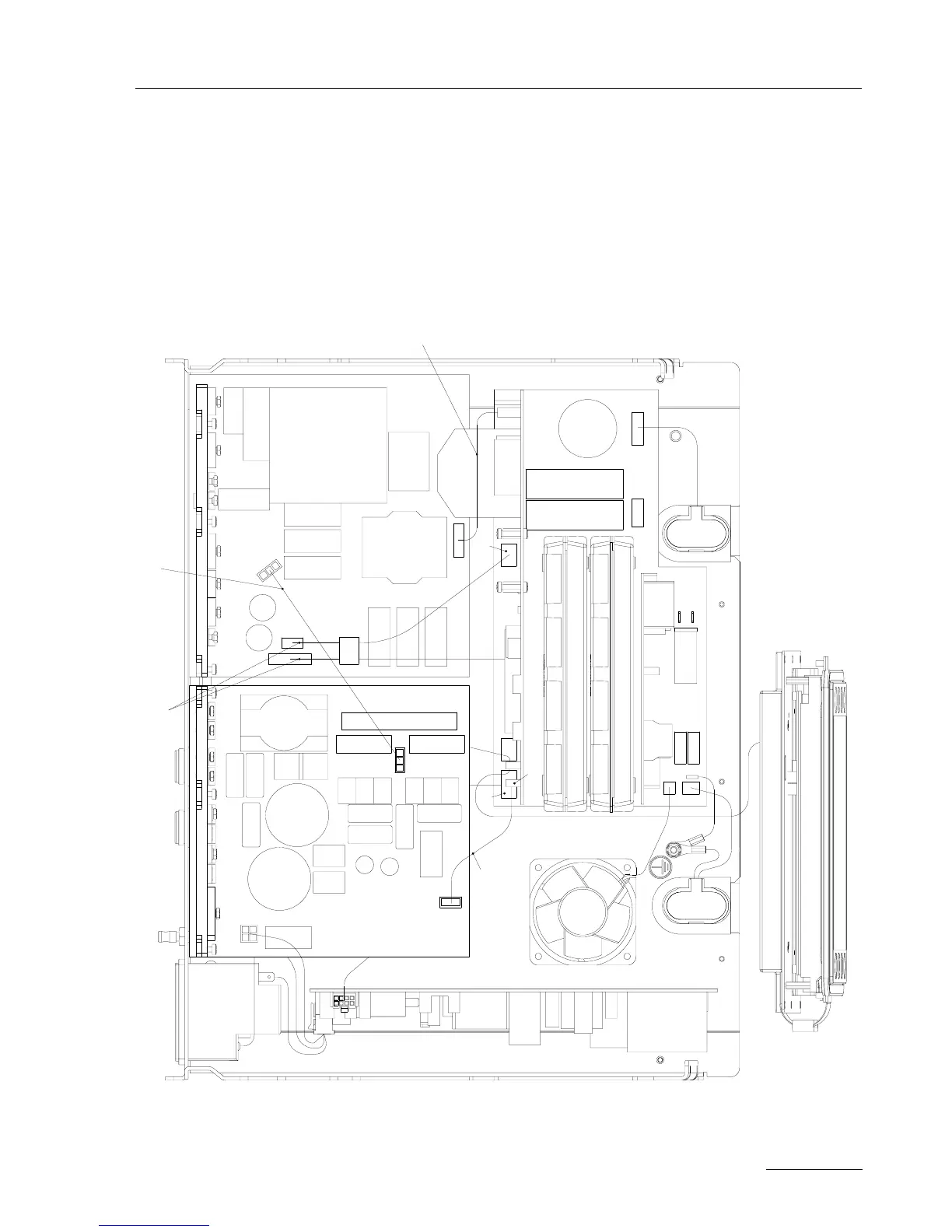

Wiring for HF generator module 30140-804
Fig. 11-13
J20
J34
J21
J26
J21
J14
J23
J11
J25
30140-706 (1) 30140-705 (1)
30140-704 (1)
30140-717 (1)
