Calibration of the Machine
Fox Maintenance © Essemtec AG 3-5
0000074/05
/ March 31, 2017
Prepare the Table
Note:
The glass plate for XY mapping has to be
mounted on the machine. It has to cover
the whole camera range, therefore the
left fix mounted PCB holder has to be
removed.

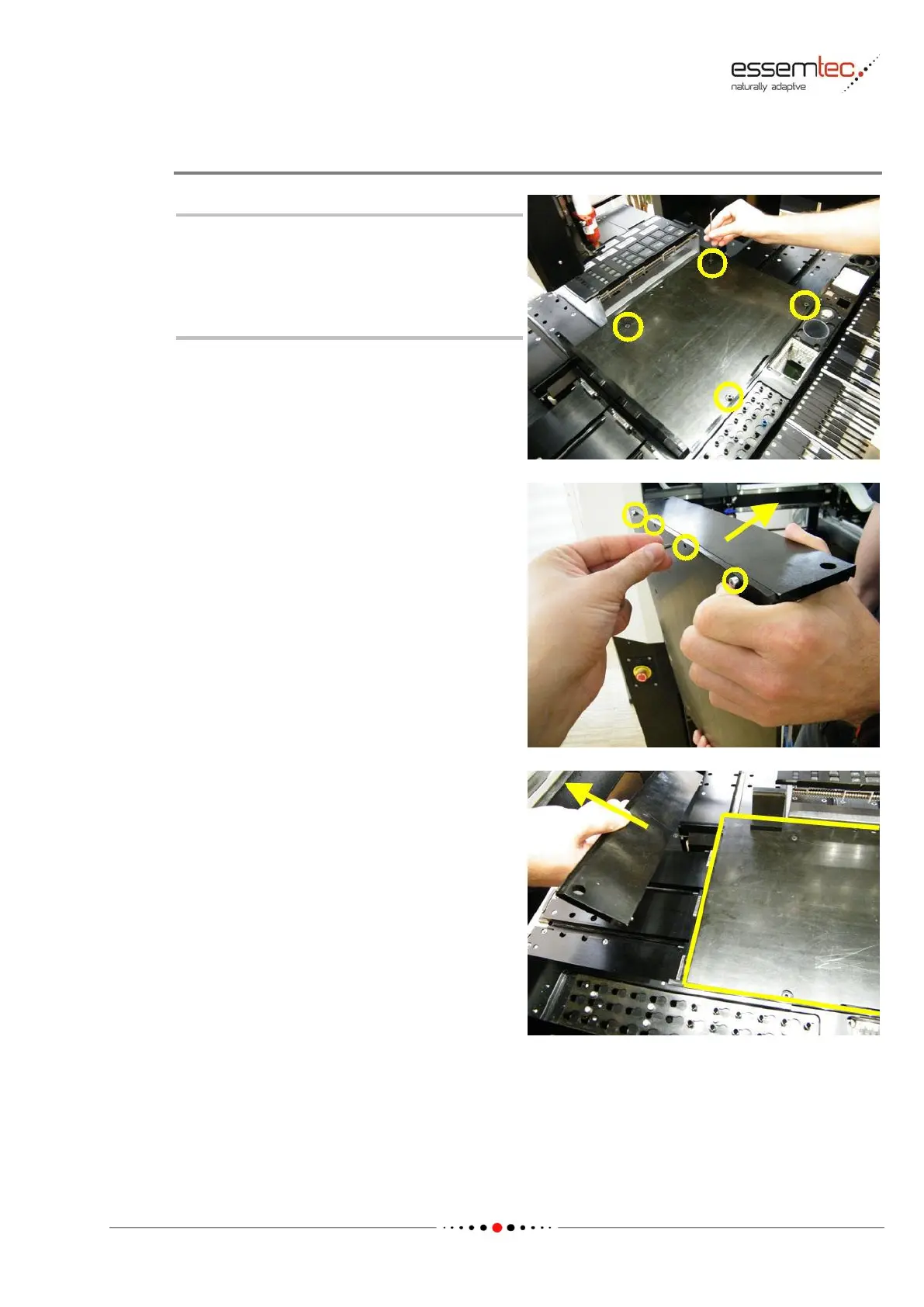

Loosen and remove the four fixing screws of the
PCB table.
Lift up the PCB table.
Loosen and remove the four fixing screws of the
left PCB holder.
Remove the left PCB holder.
Re-mount the PCB table again. Screw in and
tighten the four fixing screws of the PCB table.
