Preventive Maintenance
Fox Maintenance © Essemtec AG 4-43
0000074/05
/ March 31, 2017

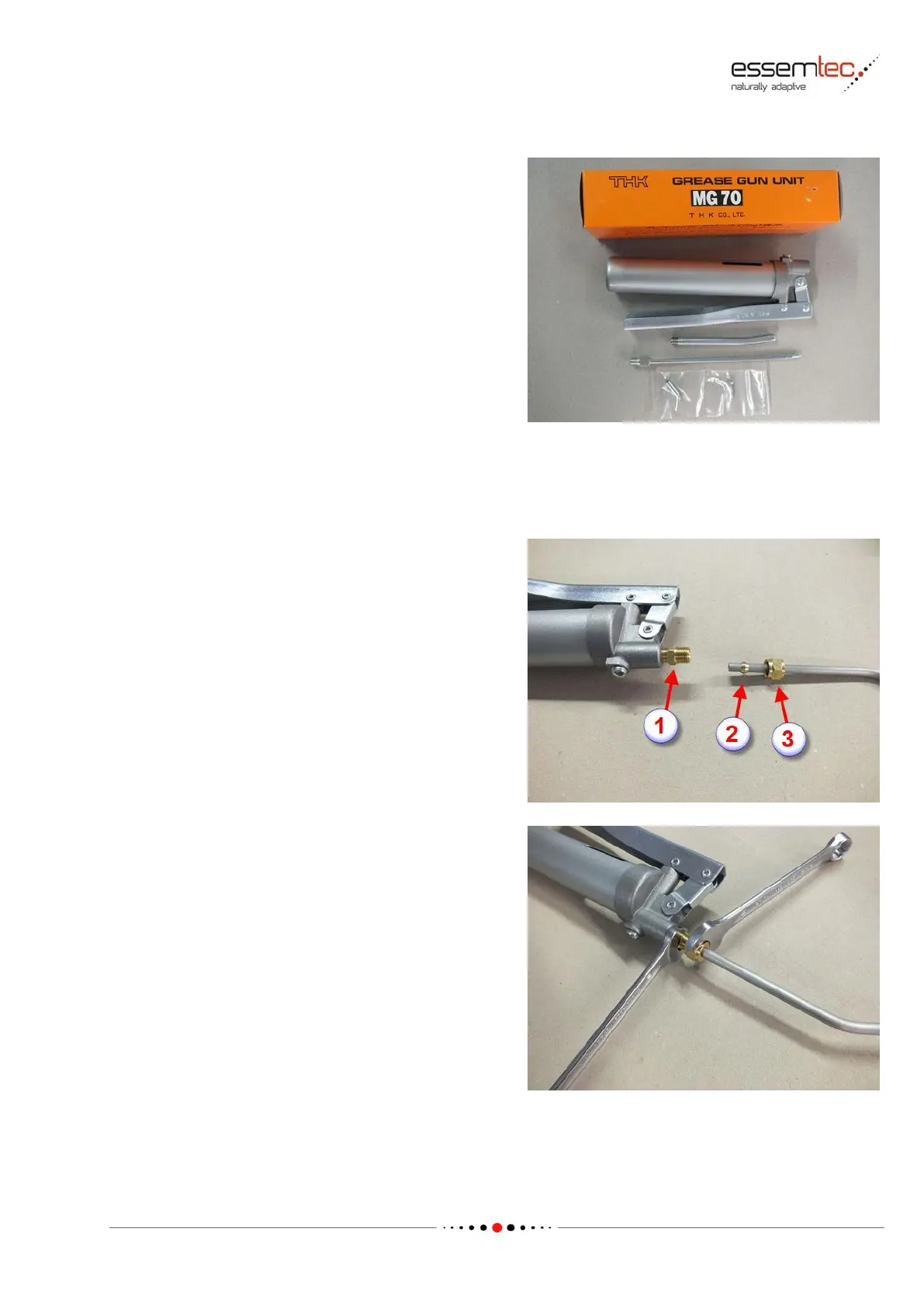

Grease Gun SP26/HG02 with Grease Gun
Adapter SP26/HG07 or Grease Gun Kit
SP26/HG10
The delivered gun can differ from the picture.
The recommended gun MG 70 (Yamada India)
provides the following amount of grease per
pump stroke:
• 0.48 g
• 0.54 ml
• 0.54 cm³
Follow the steps below to assemble the grease
gun if it is not already done at the factory.
Assembly of grease gun SP26/HG02 with grease
gun adapter SP26/HG07 or grease gun kit
SP26/HG10 (step 1)
(1) Mount the adapter piece on the gun head
and tighten it.
(3) Put the union nut on the bended spout.
(2) Put the cutting ring on the bended spout.
Assembly of grease gun SP26/HG02 with grease
gun adapter SP26/HG07 or grease gun kit
SP26/HG10 (step 2)
Push the bended spout into the adapter piece as
deep as possible.
Screw in the union nut on the adapter piece and
tighten it as showed on picture (hold in place
the adapter piece with a second wrench).
