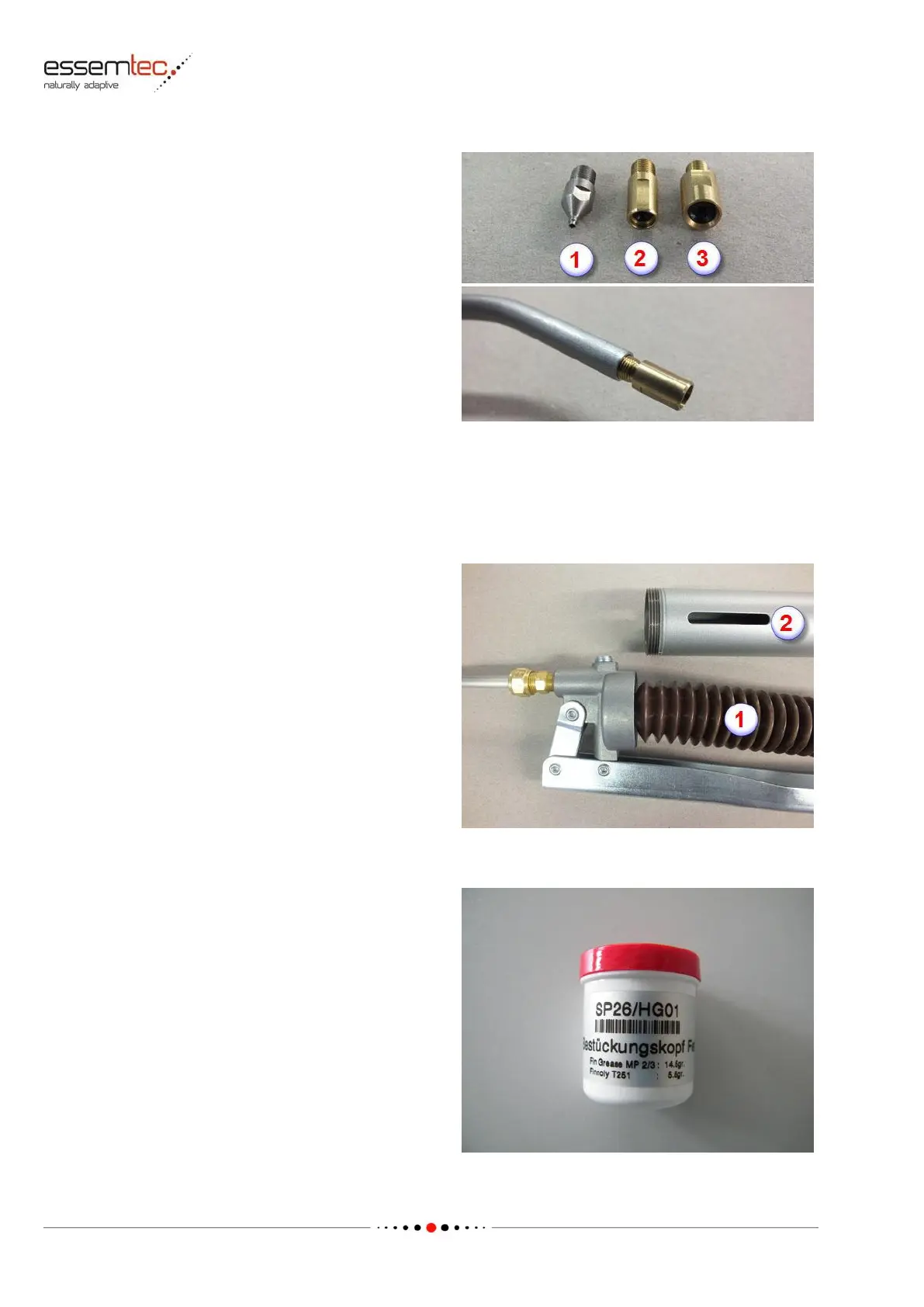

Assembly of grease gun SP26/HG02 with grease
gun adapter SP26/HG07 or grease gun kit
SP26/HG10 (step 3)
Select the correct coupler and screw it in to the
bended spout (open ended wrench 5 mm or 5.5
mm or 7 mm).
The coupler has to be changed for greasing the
various slides or carriages.
• (1) for X slider of Paraquda, Scorpion, Fox
and Spider machine types and Z slider of
dispense axis.
• (2) for Y slider of Paraquda, Scorpion, Fox
and Spider machine types.
• (3) for all sliders of Cobra machine type.
Assembly of grease gun SP26/HG02 with grease
gun adapter SP26/HG07 or grease gun kit
SP26/HG10 (step 4)
Screw in the grease cartridge (1).
To bleed the grease cartridge, push it together.
In the cartridge should left over as less air as
possible.
Screw in the grease gun tube (2).
Do a few gentle pumps until the air is purged
out of the system.
