Model 5601MSC
Model 5601MSC Master SPG/Master Clock System
Page - 62 Revision 2.2 INSTALLATION

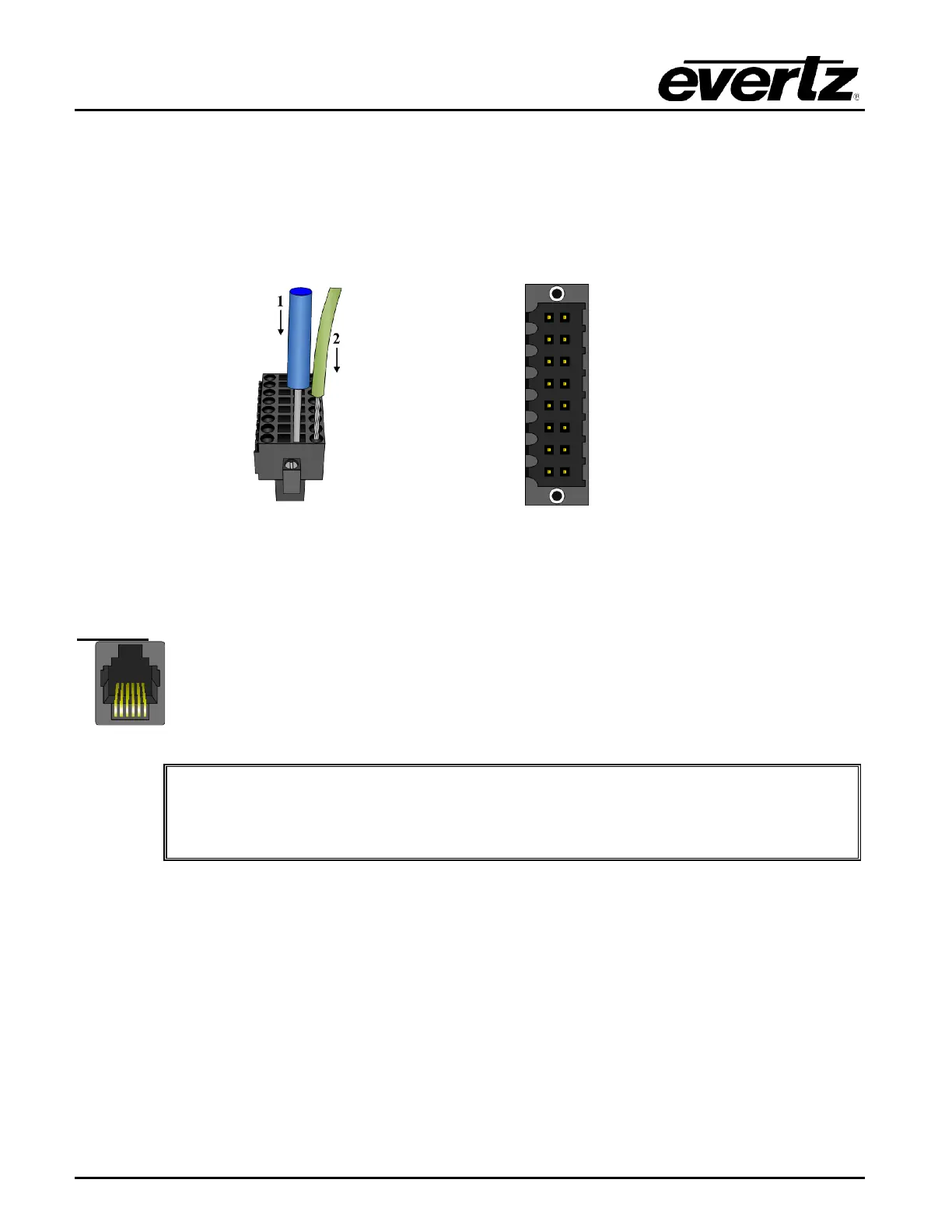

3.1.9. Balanced Audio and Modem Connections
The AUDIO 16-pin terminal strip provides balanced versions of the AES1/AES2 and DARS signals as
well as two balanced analog audio signals. The output audio cables can be secured into the removable
portion of the terminal strip using a small screwdriver. The removable terminal block (Weidmuller part
#174822) is then inserted into the rear panel and secured using the flange screws. The pinout of this
connector is shown in Table 3-6.
Right +
Left +
Right -
Left -
GND
GND
SNSA
SNSB
GND
GND
AES 1 +
AES 1 -
AES 2 +
AES 2 -
DARS +
DARS -
Table 3-6: AUDIO Removable Terminal Block Pin Definitions
The ANALOG AUDIO sub-menu in the OUTPUT root menu is used to configure the analog audio
outputs. The SNSA and SNSB pins are used by the 5601MSC to detect connection to a 5601ACO2 and
automatically enable highdrive. They may be left unconnected if this functionality is not desired.
MODEM:
The MODEM RJ11 jack is used to connect the optional internal modem (M option) to
the telephone line. The Modem sub-menu off the GENERAL
root menu is used to
configure the modem. See section 4.5.5 for more information.

IMPORTANT INSTALLATION NOTICE: For a reliable telephone connection to the
modem in the 5601MSC, a direct telephone line must be used. This line must not
pass through a PBX or similar key device.
