4.4.2.3. Setting the Phase of the Sync Outputs
The phase of the sync outputs is set independently of each other. There are four menu items that are
used to set the phase. Figure 4-7 and Figure 4-8 show the default video sync alignment (V phase = 1,
H phase = 1, fine phase = 0.0%) for 59.94Hz and 50Hz systems respectively.
1125
1
2
3
1124
1123
1122
4
5
1125/59.94/I
Video signal
6
7
525/59.94/I
Video signal
750/59.94/P
Video signal
1
2
3
4
5
6
7
8
750
749
748
747
746
745
4
5
6
3
2

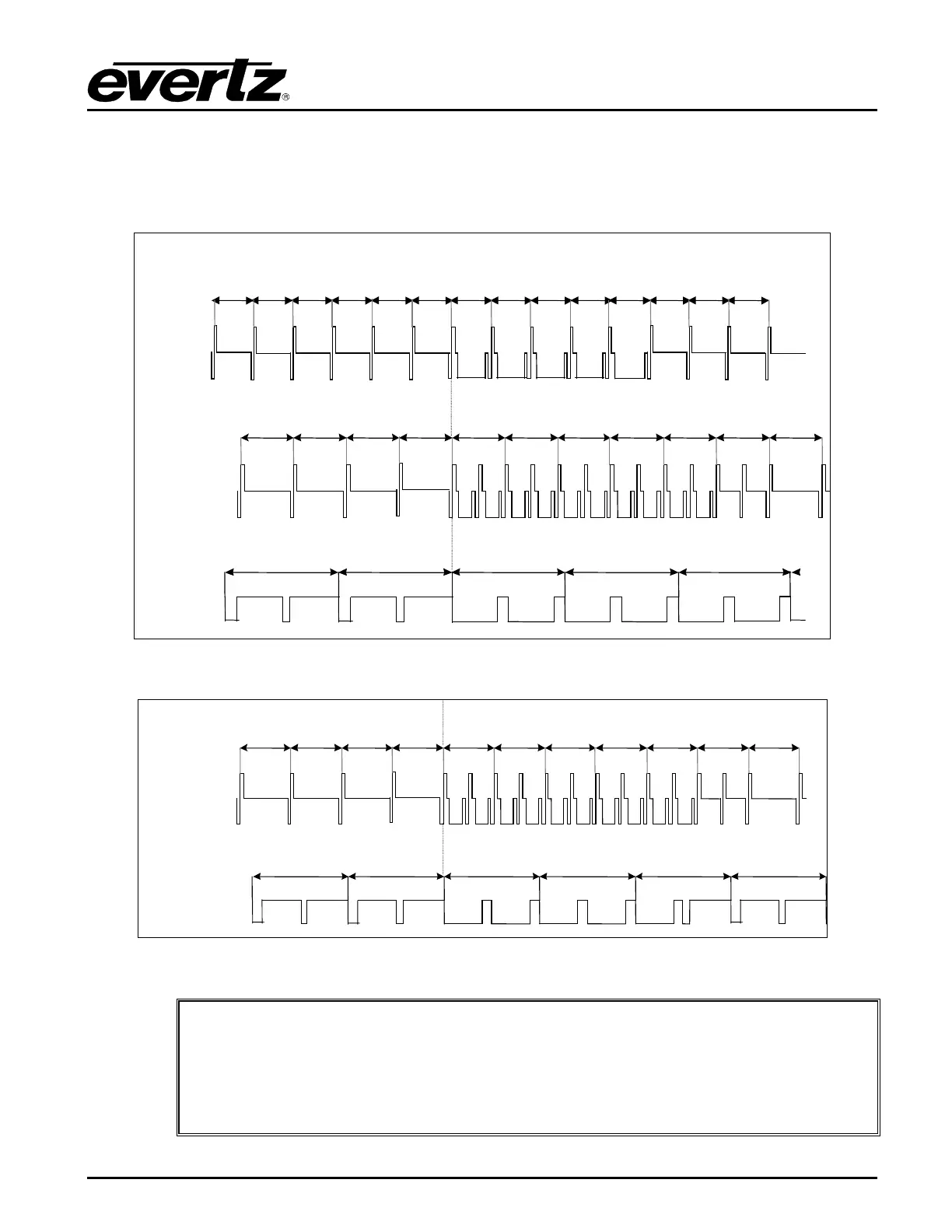

Figure 4-7: Video Sync Phase Alignment in 59.94Hz Field Rate Systems
Figure 4-8: Video Sync Phase Alignment in 50Hz Field Rate Systems

The front panel display will show LIVE CONTROL on the left LCD screen in green
to indicate that adjusting the sync output phase menu items will affect the
phasing of the respective sync output immediately. You do not have to press the
SELECT button to accept the new values. Use these controls with caution, as
they will affect the overall timing of devices connected to the sync outputs.
