Model 5601MSC

Model 5601MSC Master SPG/Master Clock System

Page - 54 Revision 2.2 OPERATION

2.6. AUTOMATIC CHANGEOVER OPERATION (5601ACO2)

For critical infrastructure requirements a 5601ACO2 can be used to connect two 5601MSC units in a

dual redundant configuration. The 5601ACO2 monitors signal health to decide which of the 5601MSC

units will be connected to the downstream outputs. See the connection diagram below.

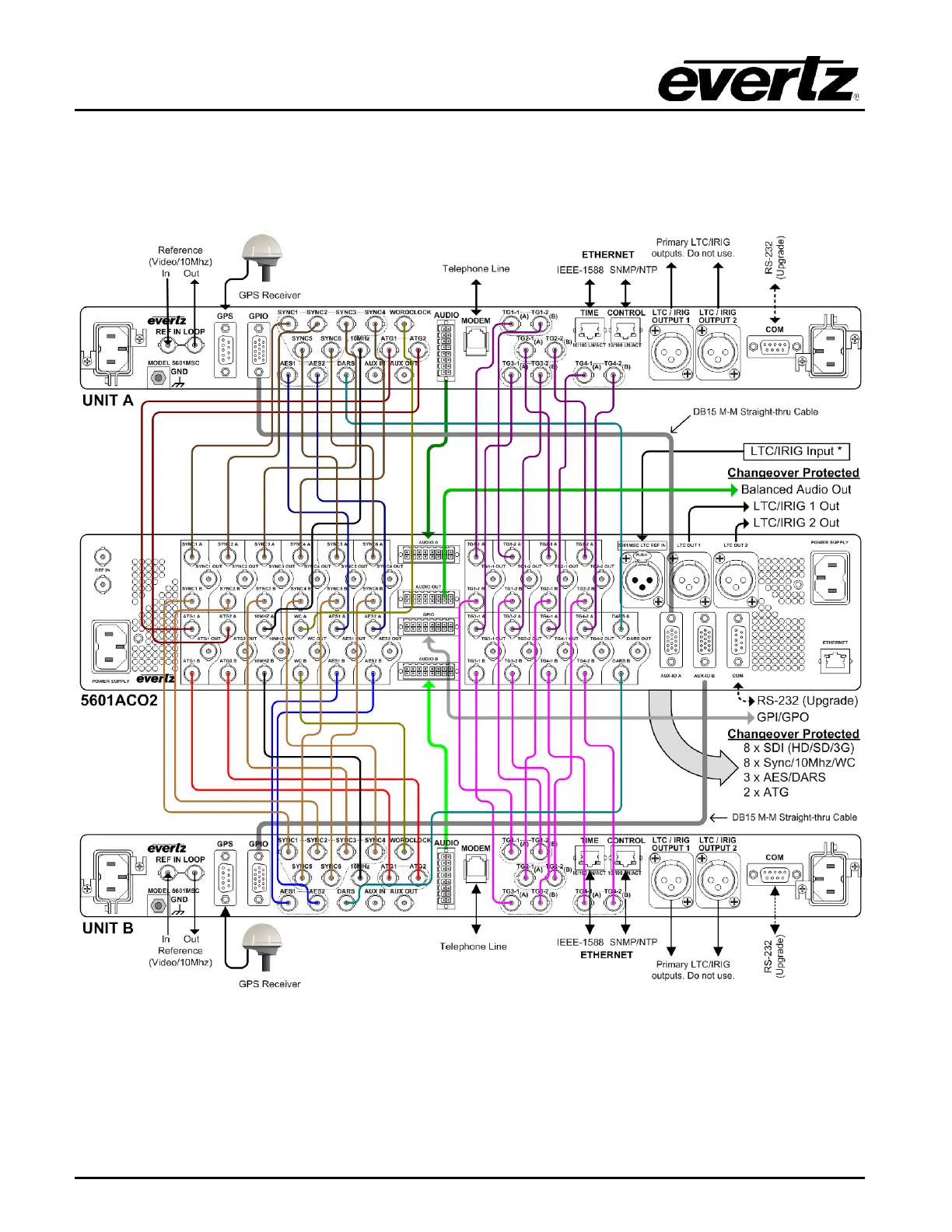

Figure 2-23: Redundant Master Clock/SPG with Auto Changeover System Diagram
