evertz 5601MSC - System Start-Up; Table 3-8: Accutime Gold Extender Cable

Model 5601MSC
Model 5601MSC Master SPG/Master Clock System
Page - 68 Revision 2.2 INSTALLATION
9-pin Female
D-Sub
Pin
Cable
Pair
9-pin Male
D-Sub
Pin
Description
7
1
7
TX B +
2
2
TX A -
8
2
8
RX A -
3
3
RX B +
4
3
4
1 PPS +
6
6
1 PPS -
5
4
5
+12 V DC
1
1
Ground
-----------
Drain
------------
Shield

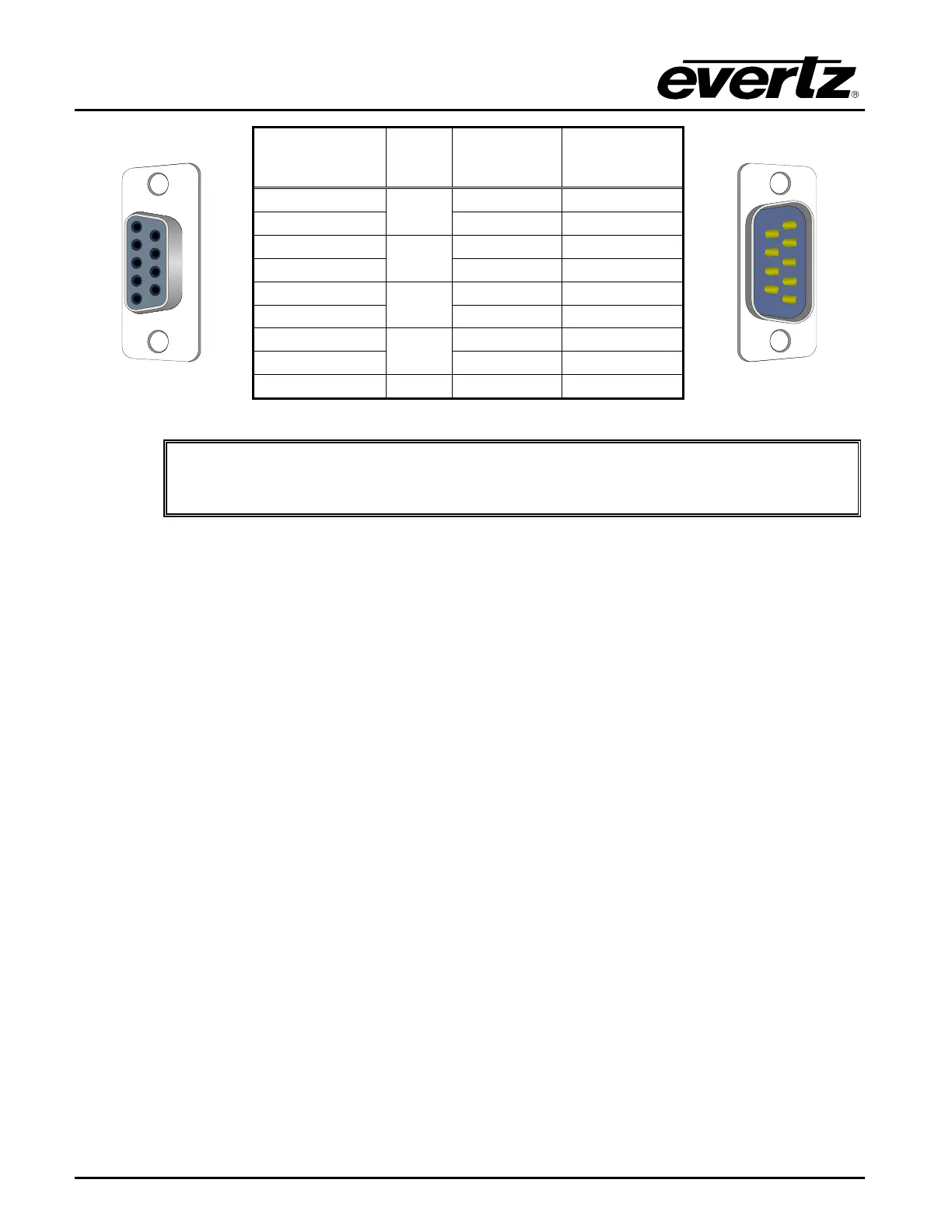

Table 3-8: Accutime Gold Extender Cable

When making your own extender cable be sure to use low capacitance twisted
pair cable and adhere to the pairing shown in Table 3-8.
3.5.3. System Start-up
At power up, the smart antenna will automatically begin to acquire and track the GPS satellite signals.
From a cold start, the smart antenna will normally take from 2 to 5 minutes to lock on to sufficient
satellites to accurately determine the time. Refer to section 2.5.2 for more information. During this time
the Lock Status and Inputs status screens on the front panel will show the various stages of initialization
(see section 4.1.2). For complete information on configuring the 5601MSC to operate with the GPS
Smart antenna see section 4.3.1 of this manual
